Hello, Revit gurus

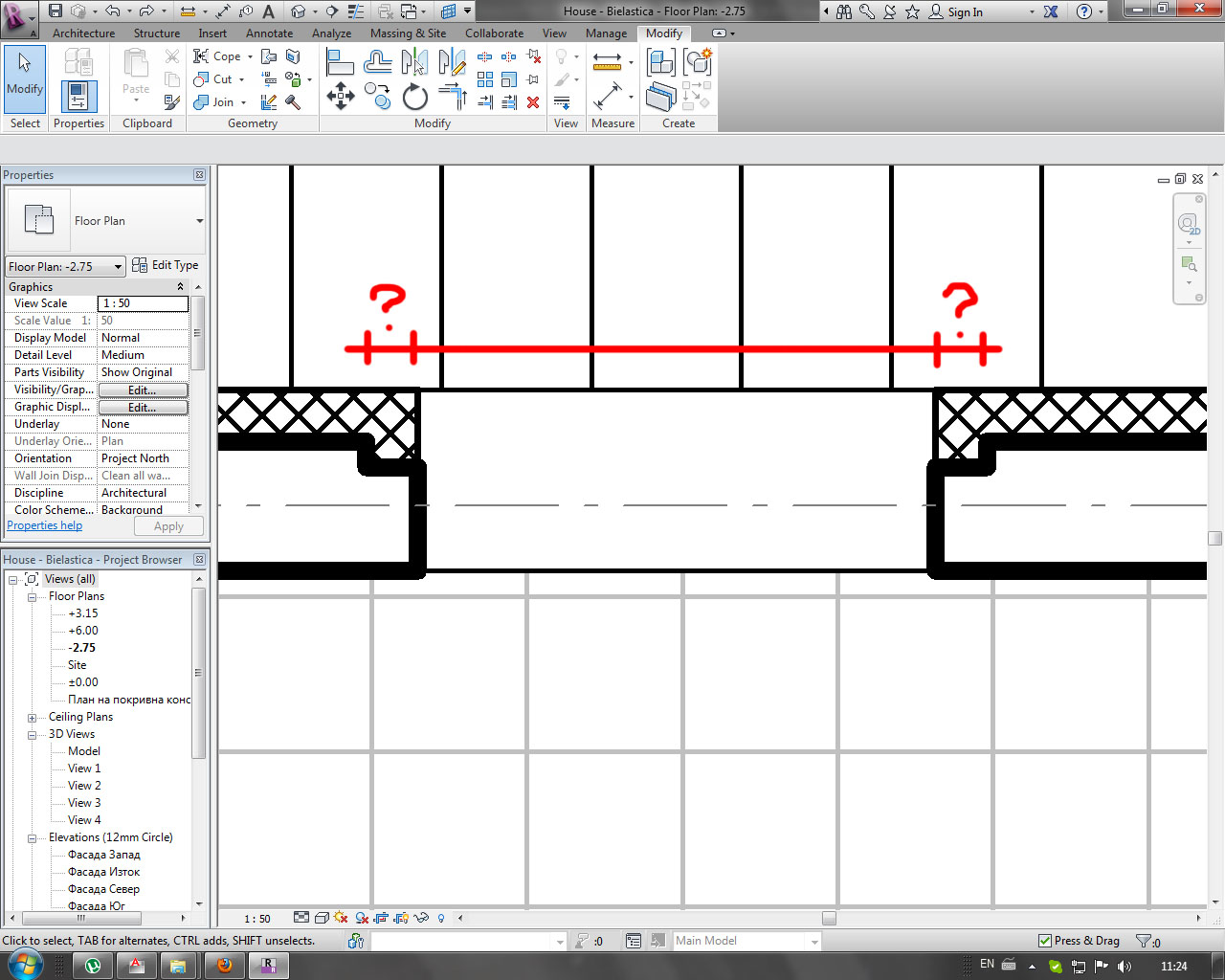

I want to adjust the weight of the wrapping around my window openning in plan view (see image please).

Is it possible?

Attached Images

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

The problem is in your window, select the window and goto properties, check if you have any parameter to control that, if not you'll have to edit the family and create one.

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

alb1no

active

Joined: Sun, Oct 2, 2011
31 Posts
No Rating

Hi Typhoon, thank you for the responce. Here is my workflow:

First I cut the wall with voids to form the right hole for my window.

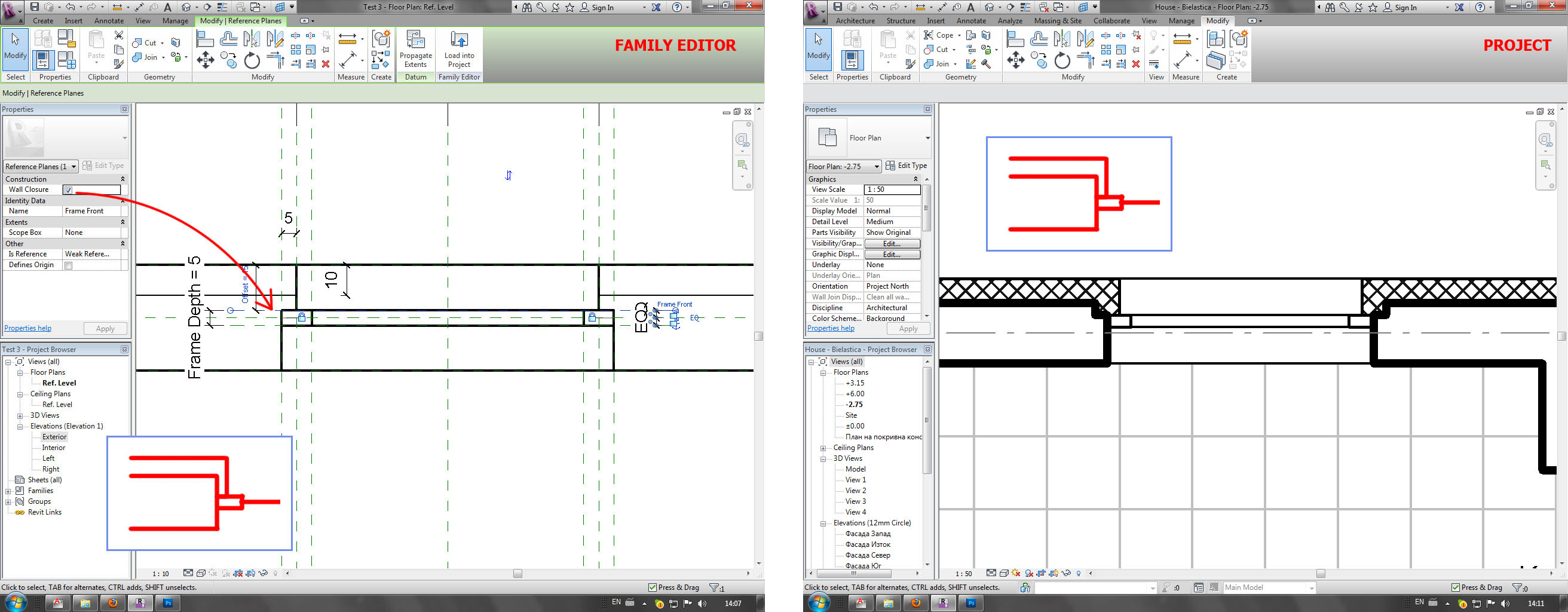

Then I apply Wall Closure to a reference plane (see image) which represents the front of my window frame.

However I cant get the result I want (the red graphic).

What parameter whould i use to change the weight of my insulation wrap?

I dont want to create wall sweep for every window in my project ...

Attached Images

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

One question: In project don't you have that window in the wrong side? I mean, use the "control" to switch the exterior / interior.

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

alb1no

active

Joined: Sun, Oct 2, 2011
31 Posts
No Rating

No, the window is put wright.

Here is one solution:

We make 2 layers of insulation and apply Wrap only on the exterior one. (see first image)

http://forums.autodesk.com/autodesk/attachments/autodesk/133/70153/1/Result.jpg

Then to remove the line that separate them we go to V/G Overrides and uncheck Walls/Common Edge.

That however romves all the Common Edges in the project .

The problem remains in sections, where I realised Wrap doesent work, so Detail Lines and Fill Patterns will be used.

This user is offline

alb1no

active

Joined: Sun, Oct 2, 2011
31 Posts
No Rating

I think that I should make another family with Wall Sweep and align it to every window.

Thanks for your help Typhoon.
