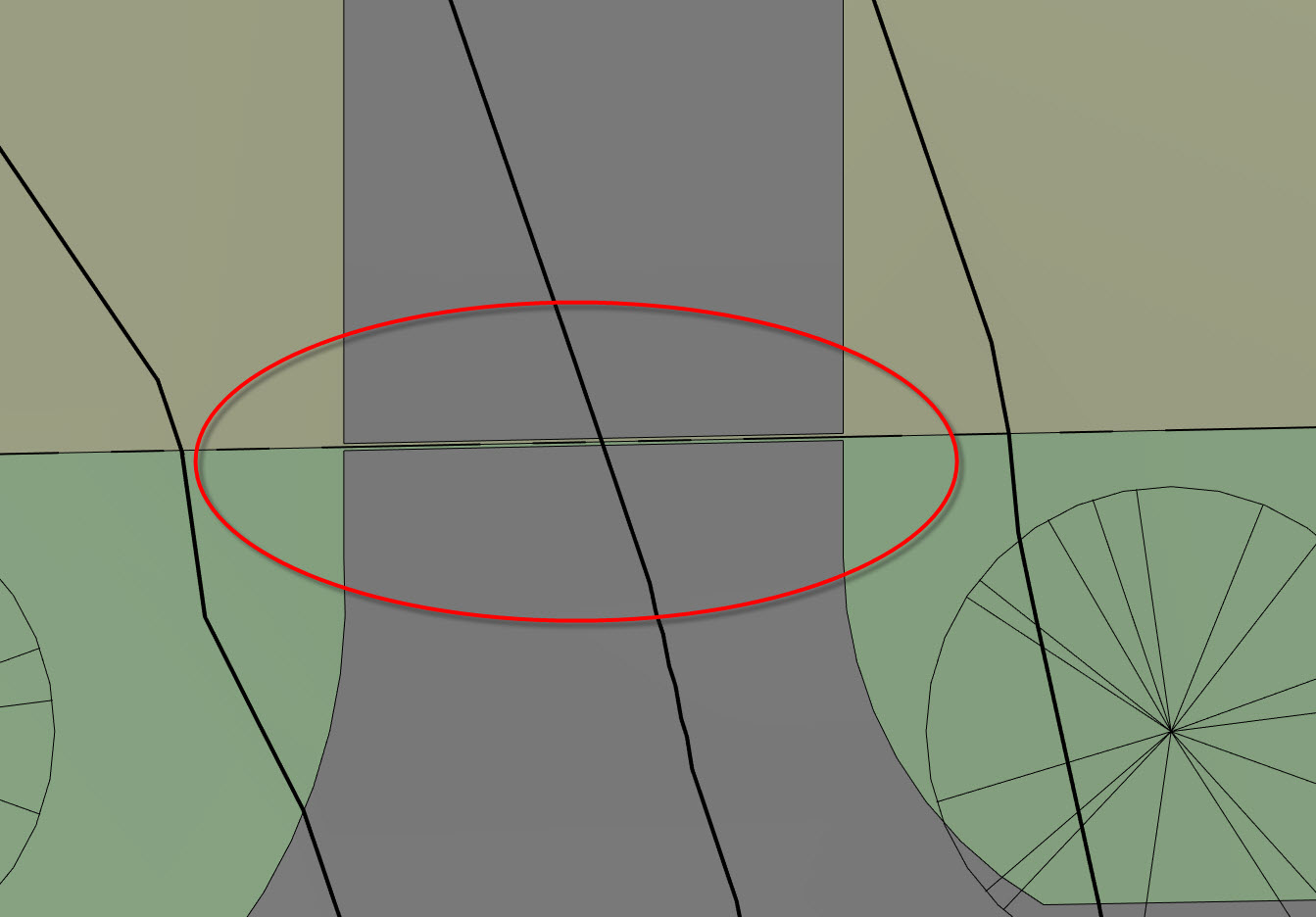

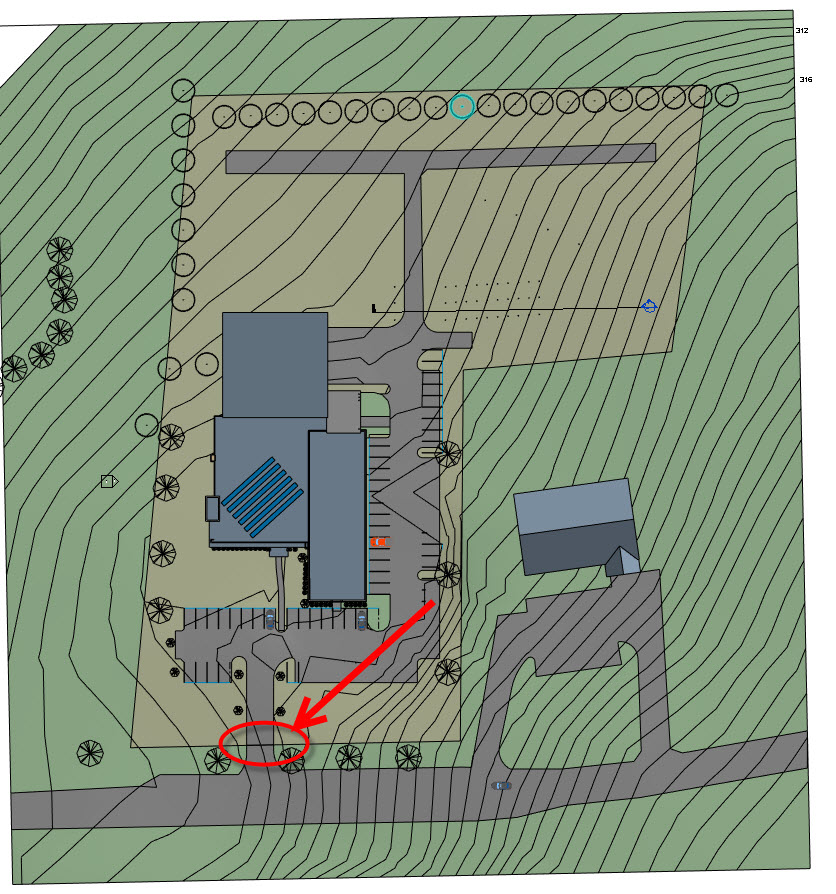

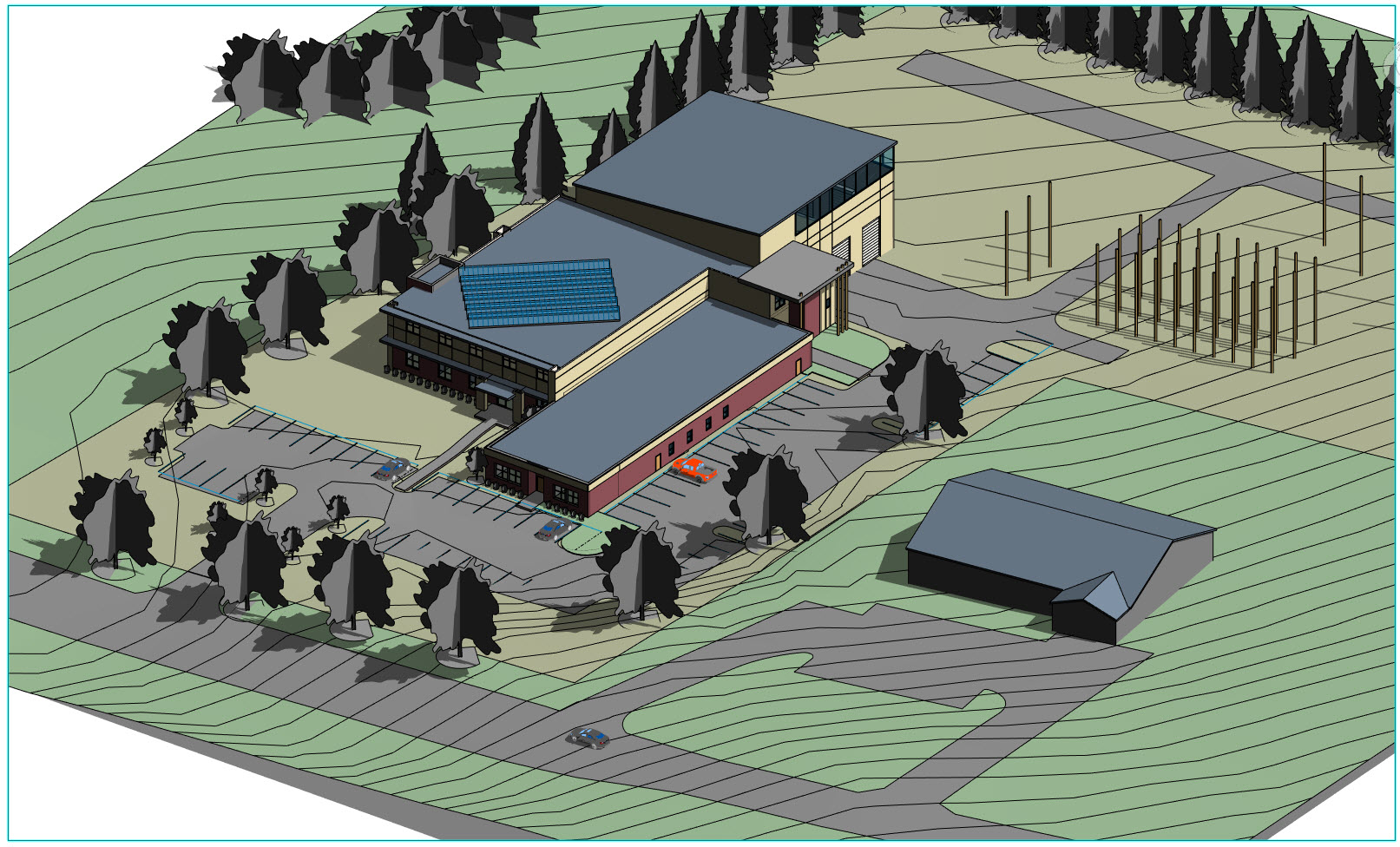

For a presentation plan, still can't draw property lines on on toposurfaces still in r2013(?) A workaround: draw topo subregions. Cant cut one region with another, but they can be concentric, so i created a very narrow slot at the driveway.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
|
site moderator|||
![teafoe5 Avatar](user_avatar/204239.jpg)
Joined: Fri, Nov 12, 2010
1749 Posts
![4 Stars: 47 Votes](/images/stars_4.gif) |
I don't understand. You can draw a property line on a toposurface just fine, just create your surface then under Massing & Site>Modify Site> click the Property Line tool and draw it where you want.
Unless you are talking about it showing in a 3D view?
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Sat, Oct 25, 2003
411 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |
Yes, showing it in 3d. To my knowledge, there is no way to show it in 3d.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 393 Votes](/images/stars_3.5.gif) |
We split the surface and give a different color material on property outside the property line.
|
