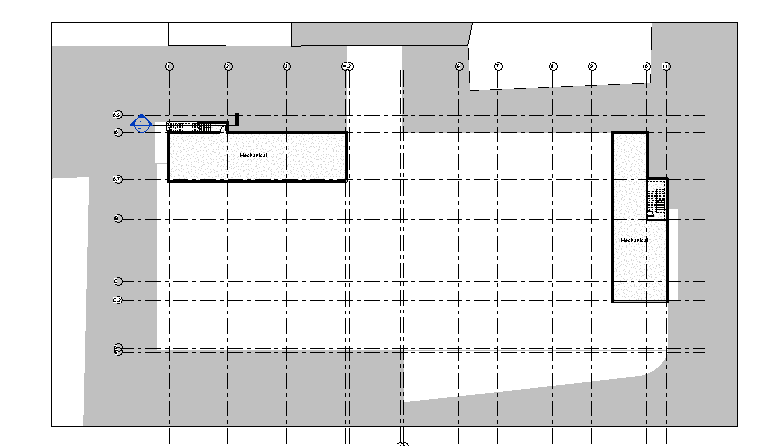

I've been trying to search for an answer to this but cannot seem to find anything. Maybe you guys can help.I have a main level in my building, with a basement that has a smaller footprint than the floor above. I have a pad defined for the area that is on grade at Level 1, and another pad defined for the Basement. In my basement plan, wherever the pad is above, the topo fill/hatch does not show. See the image below for clarification.Is there any solution to this? I know I'm not the only one who has had this problem, but none of the threads I've found have a resolution to this issue.
|
This user is offline |
|
|
|
active
Joined: Thu, Mar 17, 2005
1231 Posts
|
I don't fully understand the problem. I hope you'r not using a pad as a slab ?

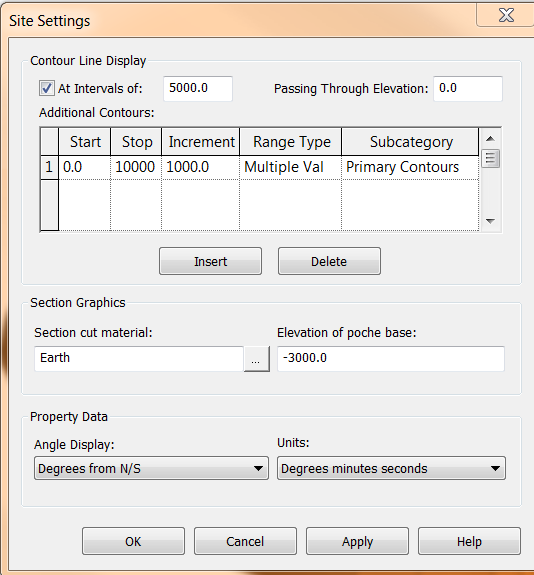

Either way you should be aware of the Section Graphics and Elevation of Poche Base as shown in the attached image.
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
|
active
Joined: Wed, Oct 24, 2012
29 Posts No Rating |

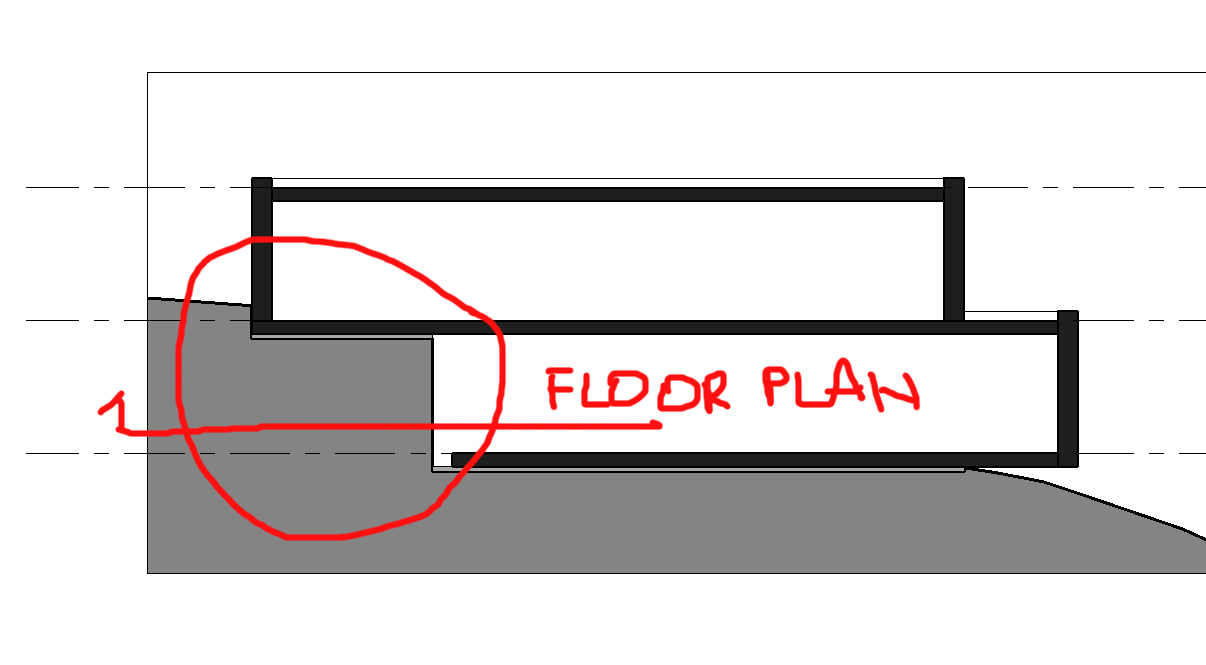

Yes, I am aware of the section graphics (after some digging (no pun intended)). I am using the pad as my gravel base. However, it is on the layer above, to cut out my toposurface for my floor. But on the level below, underneath the pad location, no fill/hatch for the toposurface shows up. The white area on the image I posted should be poched gray (or hatched - in this case I want a solid poche and not the typical earth hatch), but wherever there is a pad above, no fill/hatch appears.
|
This user is offline |
|
|
active
Joined: Wed, Oct 24, 2012
29 Posts No Rating |
According to Autodesk:
"I think I understand the issue, but because of the way pad cuts the toposurface there is not an automatic solution. You will need to use drafting tools in the views where the representation is not what you need. The other solution might be to split the toposurface and manually create "pads" by setting elevation points for the split toposurface.
Jeff HansonSr. Subject Matter ExperAutodesk, Revit"
http://wikihelp.autodesk.com/Revit/enu/2013/Help/00001-Revit_He0/0135-Prelimin135/0170-Site_Des170/0174-Toposurf174
|
This user is offline |
|
|
active
Joined: Tue, Jul 16, 2013
2 Posts No Rating |
Same problems here. I can´t figured out how can I show right toposurface in plan with many building pads around the site.
I did an earth hatch filled region for instance.
|
This user is offline |
|
|
active
Joined: Wed, Oct 24, 2012
29 Posts No Rating |
Yes, that is probably the easiest solution. The other option is to slice the topo up into individual chunks, one for each pad. Then adjust the elevations of each to match the height you want. Finally, you'll probably need to join the pieces together so they cut seemlessly in plan.
|
This user is offline |
|
|
active
Joined: Tue, Apr 17, 2012
0 Posts No Rating |
I tried this with spliting toposurface, but it is the same, hatch is still problem: doesnt appear in plan
|
This user is offline |
|
|
active
Joined: Thu, Mar 17, 2005
1231 Posts
|
Toposurfaces do not show fill patterns in plan.
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
|
active
Joined: Tue, Apr 17, 2012
0 Posts No Rating |

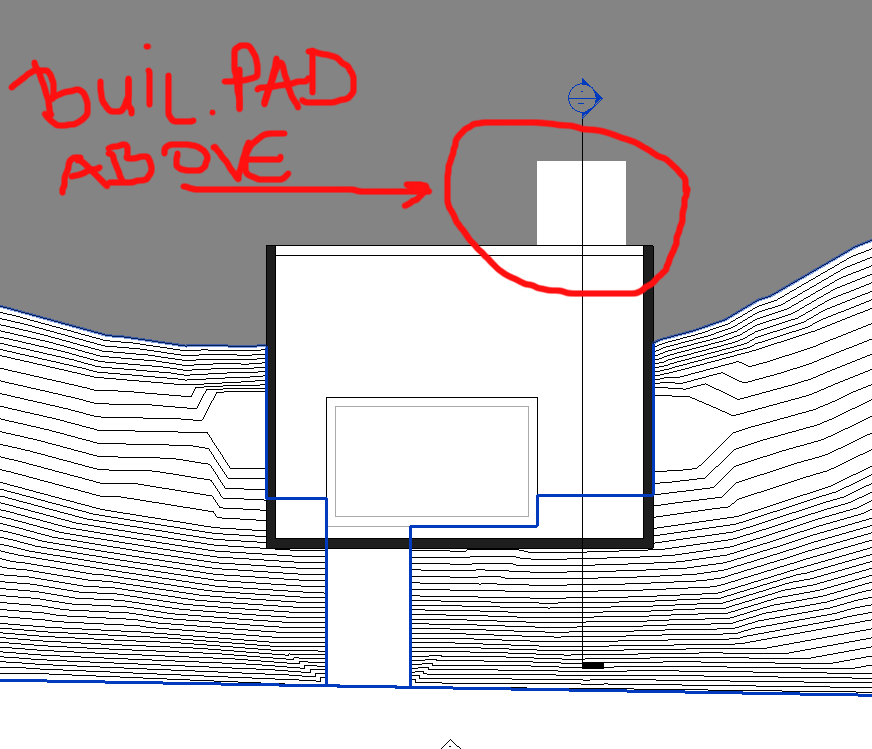

Look at pic.
Yes it shows fill paterns in the plan, but when building pad is above, the hatch disappear!
|
This user is offline |
|
|
active
Joined: Thu, Mar 17, 2005
1231 Posts
|
That's the point. It has to be cut.
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
|
|
active
Joined: Tue, Apr 17, 2012
0 Posts No Rating |
Is there solution not to be cut, because I need to be cut only upper level and not ground below building pad.
When we put building pad, no matter on which level, it's acting like it extends vertically infinitely?
|
This user is offline |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Danka,
Please don't post the same question in multiple areas. I'm leaving your postings here but I'm deleting your other posts.
|
This user is offline |
|
|
active
Joined: Sun, Jan 16, 2011
0 Posts No Rating |
Hi Danka,
I've had the same problem with the building pads. As far as I can tell you can set your building bad as the actual terrain you are building on and edit your floor above to have a layer which is the gravel. Then you can make the building pad as thick as you want and you give it the same cut pattern as the topography. Now when you cut through the pad it will show as terrain. I hope I understood your problem and this helps.
|
This user is offline |
|
|
active
Joined: Sun, Feb 8, 2015
0 Posts No Rating |
If you thiocken the pad then you see the edge of the pad when you cut through it which looks crap
|
This user is offline |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
As tgcarch wrote
Select the pad, click edit properties, change the thickness of the pad from 4" to 20' or 30' and set the material to be "earth". Hit apply.
nest, use the "linework tool" (LW) to make the dividing line "invisible".
|
