Afternoon All,

Ive tested my model using the show disconnects tool. Most components have linked successfully. Even when i drag the two items together by the end drag/snap points they still are not connecting. Is there a tool im missing to connect items more accurately?

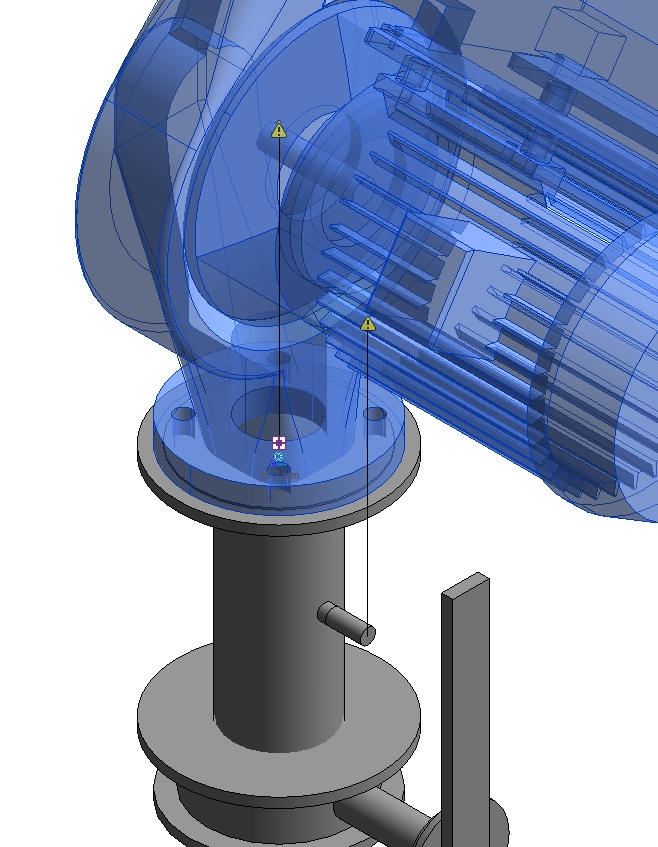

Image attached of an example between a pump and pipe,

Alex

Attached Images

This user is offline

View Website

dgcad

active

Joined: Thu, Mar 17, 2005
1231 Posts

Check the connector types in the families. Connectors can have 'direction' ----> Maybe that's the problem ? As in in bound, out bound.

-----------------------------------
