Forums >> Revit Building >> Technical Support >> windows and panels
|
|
|
active
Joined: Sat, Oct 25, 2003
411 Posts
 |

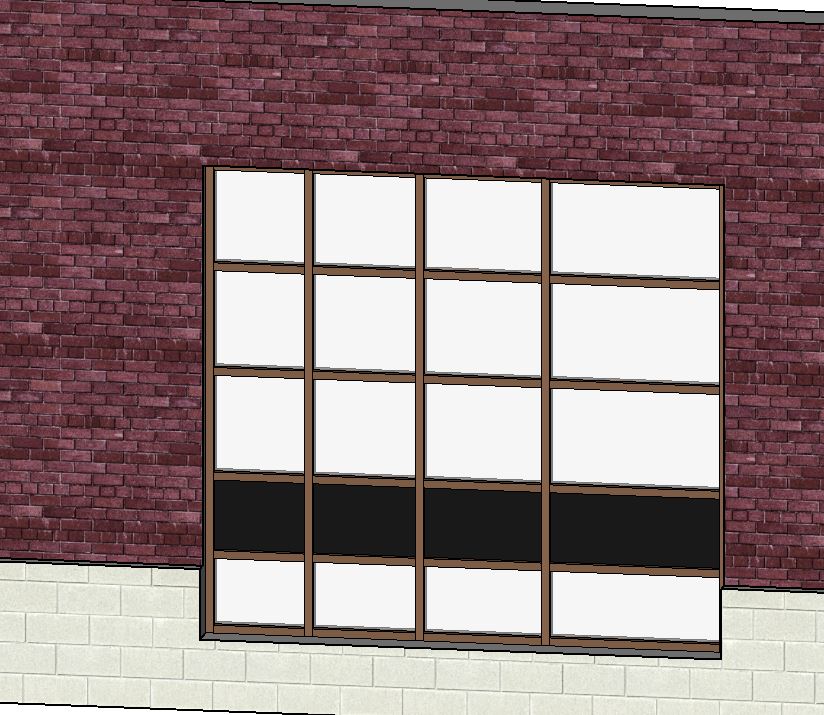

Is there a way to make a window and panel assembly like in the pix attached? The only way I can think is to make a wall with cutouts that I infill with curtain wall. If curtain wall inerst are the way to go, is there may be a way to insert curtain wall "windows" in curtain walls, which may be schedule-able?
|
This user is offline |
View Website
|
 | |
|
|
site moderator|||
Joined: Fri, Nov 12, 2010
1749 Posts
 |
Just use a curtain wall and change the glass to be spandrel where you need it. No need to "make a wall with cutouts" the curtain automatically cuts the wall. You would schedule the whole curtain wall as one type.
|
This user is offline |
View Website
|
|
|
active
Joined: Sat, Oct 25, 2003
411 Posts
|
Cutting curtain wall into a stacked wall appears to not work. Is that your understanding?
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Fri, Nov 12, 2010
1749 Posts
|
I'm not having a problem at all. I just draw the stacked wall first then while still in plan view draw the curtain wall right over the stacked wall. Then I change the portion of the glazing I don't want clear to a solid. See attached. Not sure what the problem is, you don't give enough information.
|
This user is offline |
View Website
|
|
|
active
Joined: Sat, Oct 25, 2003
411 Posts
|
Yes it works. looks like you have to select it in plan to get at the core CL of the wall. I just couldn't pick it in 3d iso view
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, May 28, 2009
829 Posts
|
Curtain walls, with spandrel panels. You can make them as complicated and parametric as you like, but it's a fantastic way of controlling dimensions and join conditions between panels. I have a very low opinion of complicated wall joins across floors...
I have had poor success with stacked walls, and greater success with curtail wall systems.

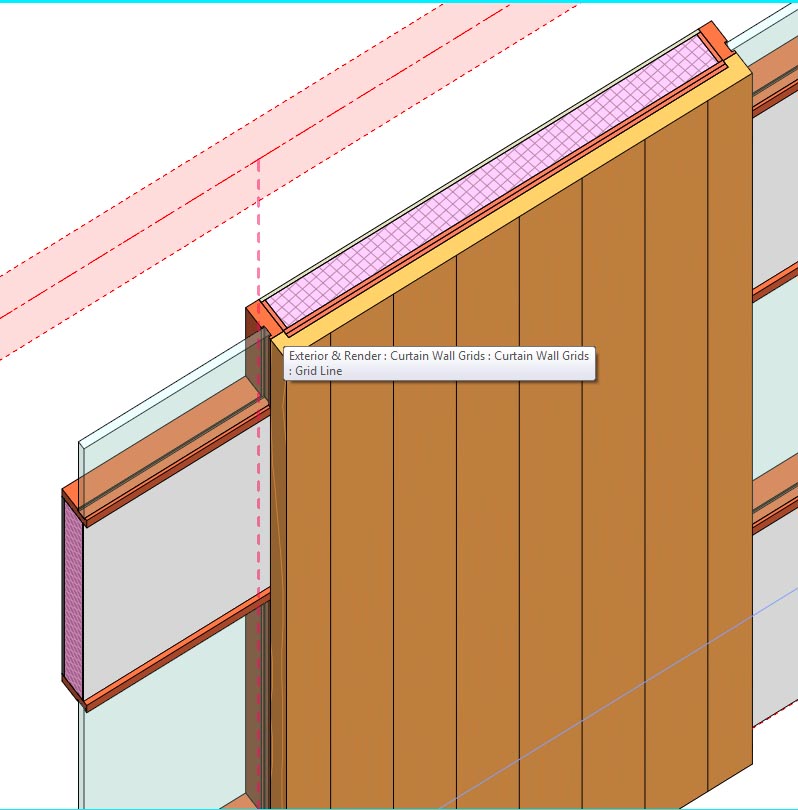

Here's an example. Wall, Window+mullion, and spandrel panels nesting perfectly.
|
