Forums >> Revit Building >> Technical Support >> Rounded wall profile issue

exxocet

active

Joined: Sun, Mar 24, 2013
1 Posts
No Rating

Hi guys,

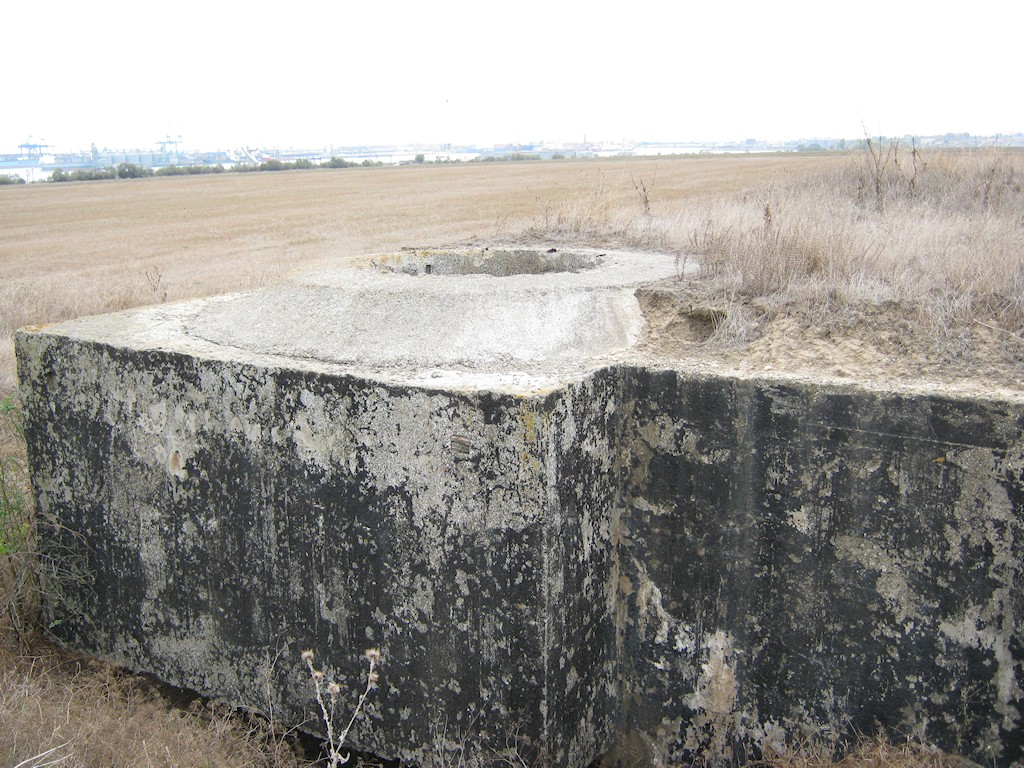

My name is Luke, althought I've worked with vectors and web design for years, I'm new into arhcitecture; this is my first project in Revit. It's a historical work, a presentation of a WW2 bunker (pic A) and I'm stucked at a rounded wall shaft rim.

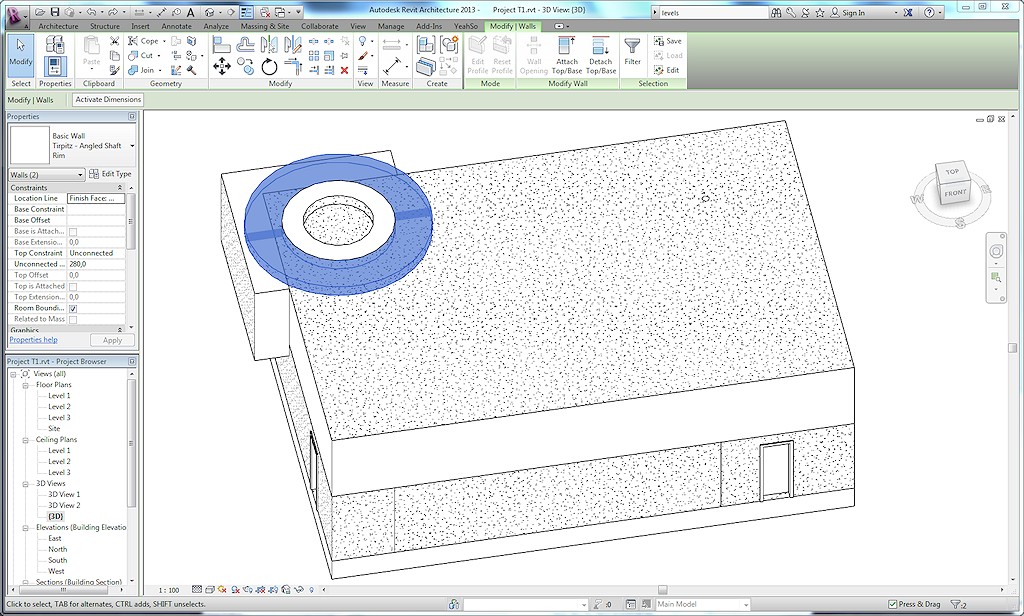

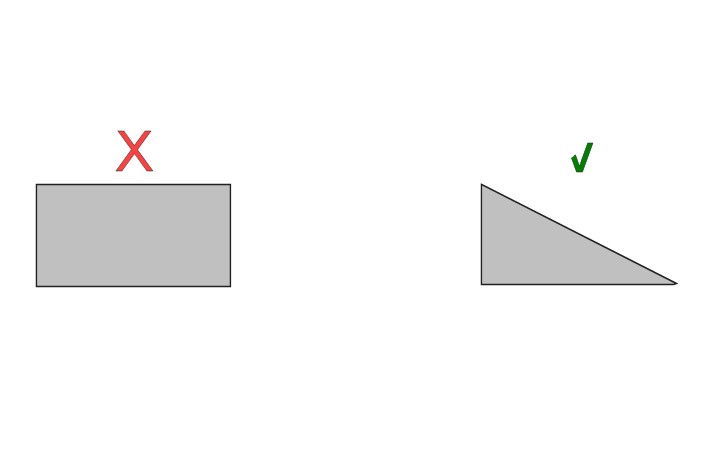

Please check the 3D view (pic B) - the particular wall is the blue one, it's a rounded shaft rim. The problem I encounter is that the small wall is a triangled profile one (pic C) and I can't represented it in Revit.

Maybe an experienced Revit user can would help me with a work around. Thank you very much.

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Just rotate that profile.
