Forums >> Revit Structure >> Technical Support >> was given a central model, am unable to view any new section cuts
|
|
|
active
Joined: Wed, Mar 13, 2013
22 Posts
No Rating |
(revit structure 2013) so i was sent a project central model, and i am trying to add my own section cuts to the plans but i cant see them. i have tried to copy the existing cuts but that doesnt work either. im not sure what to do. (the same issue is happening with model elements)
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Fri, Nov 12, 2010
1749 Posts
 |
Is your phasing set correctly. Not really enough information, it could be multiple things.
Edited on: Wed, Mar 13, 2013 at 2:03:52 PM
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, Mar 17, 2005
1231 Posts
 |
Not alot of info I agree but lets start with this:
Sections have a property called "Hide at scales courser than". In other words if the scale of the plan view is set to 1:200 or 1/16"=1'-0" the section view gets created but the symbol doesn't show up. Open the Section view itself and compare this property with the scale of the floor plan that you cannot see it in.
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
|
|
active
Joined: Wed, Mar 13, 2013
22 Posts
No Rating |
this is my first run with 2013 so perhaps some things are different, but whenever i want to create the new section the "properties" box is empty and typically i am used to there being options like what scale the section should be cut at...
|
This user is offline |
|
|
|
active
Joined: Thu, Mar 17, 2005
1231 Posts
|
Nope, you won't see any properties 'while' you draw the section. Only after. The scale of the section will mimic the scale of the view you are in.
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|

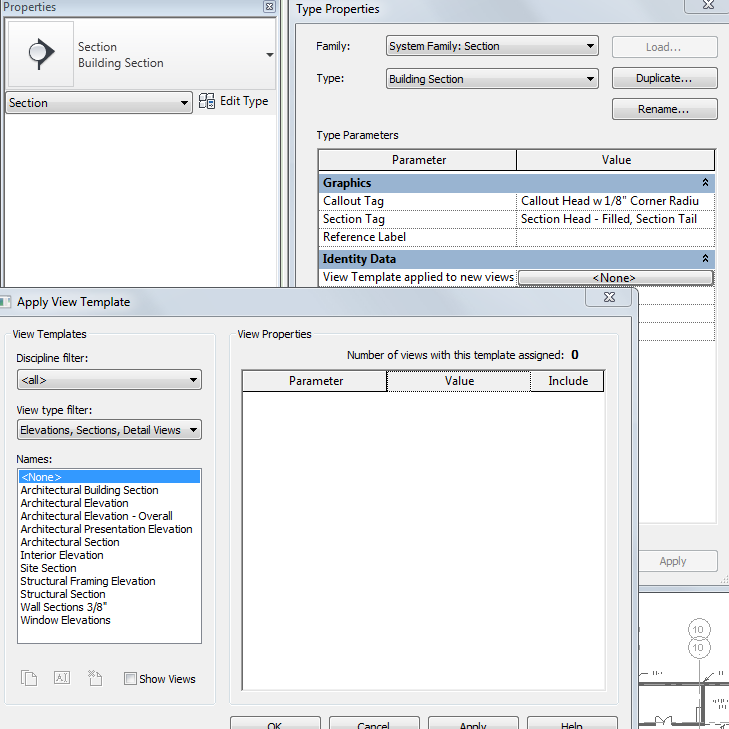

You can set a view template to use when creating the view initially but it will not be assigned. See attached. Edit type then view template applied to new views.
|
This user is offline |
|
|
|
