Hello All.

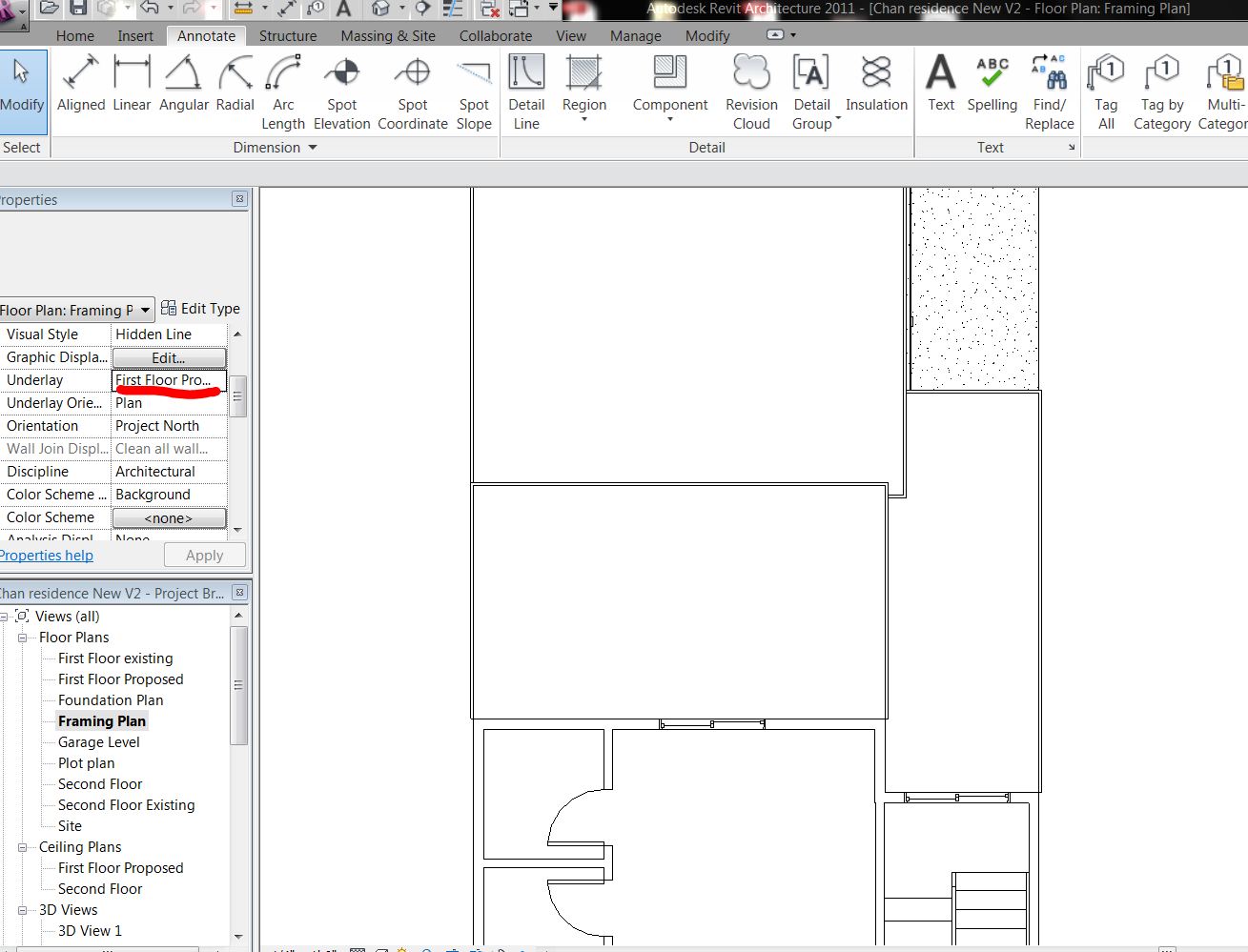

On this perticular plan the underlay option doesnt do anything. I am making a framing plan, so you can see roofs, and I want to ghost through the first floor plan...but it wont show..so strange as it works perfectly on others..does anyone have an idea on this? here is a screen shot.

Attached Images

This user is offline

View Website

dgcad

active

Joined: Thu, Mar 17, 2005
1231 Posts

Not sure if I fully understand but what if the change the Underlay Orientation to Reflected Celing Plan ?

Located right under the Underlay property.

-----------------------------------
