I'm re-learning Revit after a 2.5 year hiatus and I'm having some frustrating problems I hope some of you can help me with.

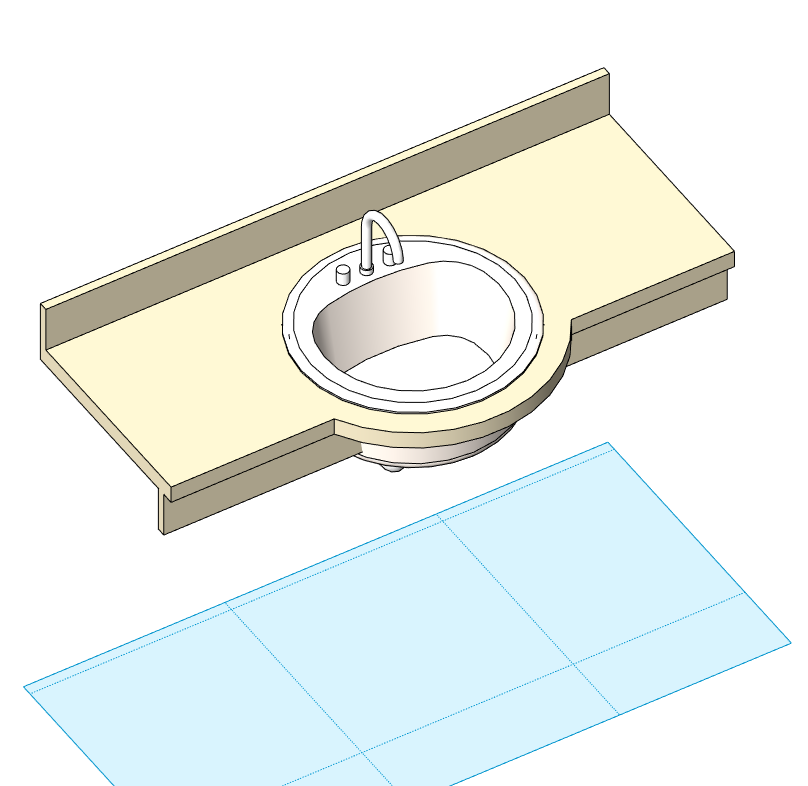

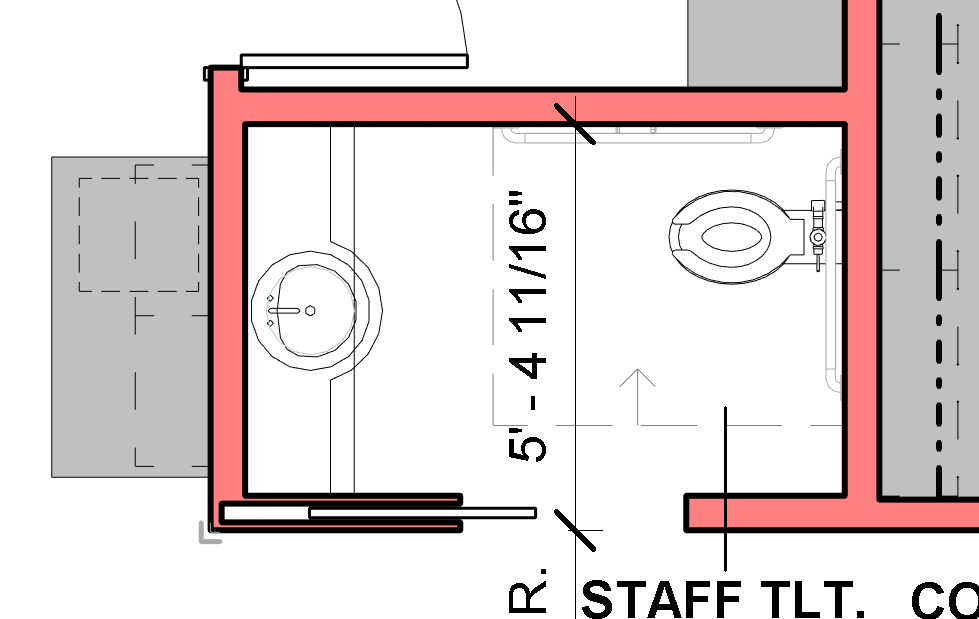

I have this Family Object of a vanity sink (Capture1.png) and for some reason, it keeps showing a line on the plans that is no where to be found in the family object itself (Capture2.png & Capture3.png). What is it and how do I make it go away!?
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |

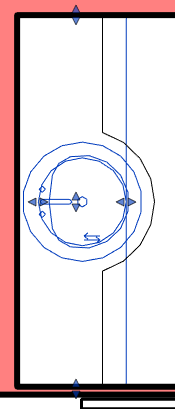

The blue lines in 3 are the reference planes that control the hole in your counter.
The circle is the hole. It shows in 2 because your lav doesn't block it. A model sink woul as would a masking region in the family if the sink is just 2D lines in plan.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Fri, Oct 2, 2009
11 Posts No Rating |

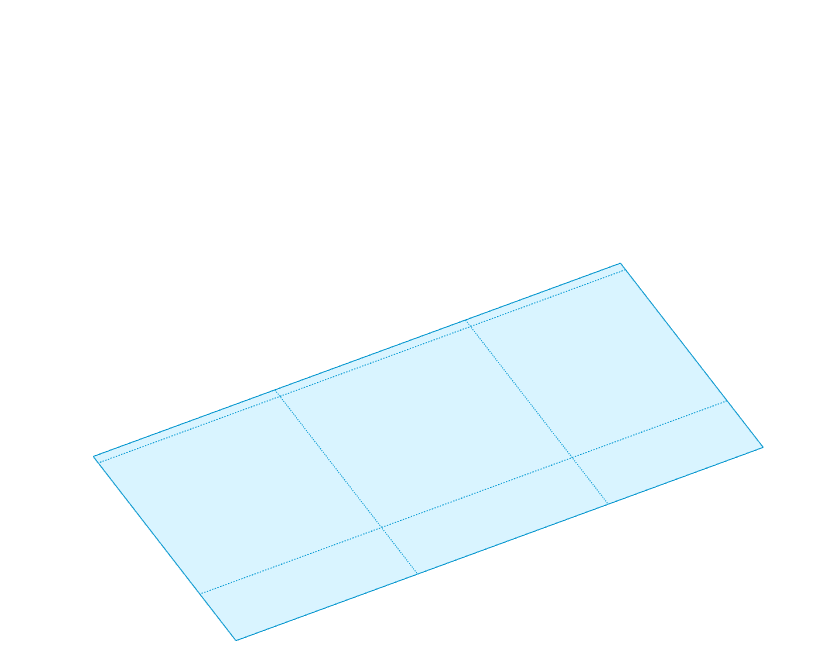

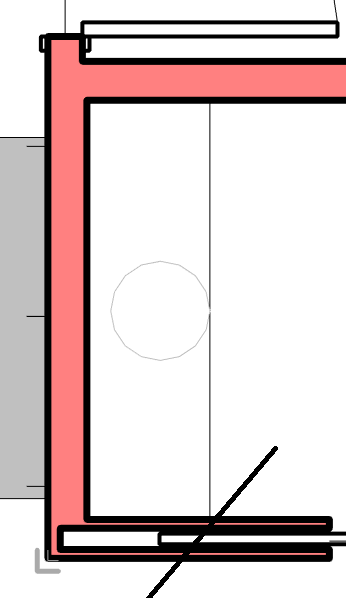

Thanks for your suggestions, but I'm wondering if it must be something else. Just as a test, I opened the family and deleted EVERYTHING (Capture1b) and loaded it back into the project. It still looks like this (Capture1a). Any other ideas or can you tell me if there's a way to view anything that might still be hidden that I'm somehow missing?
Edited on: Mon, Dec 3, 2012 at 1:57:21 PM
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Wed, Oct 7, 2009
654 Posts
![4 Stars: 7 Votes](/images/stars_4.gif) |
Did you only erase everything in the 3D view and not the plan/sections/elevations? If so, there are likely some 2D symbolic lines in the plan view.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Fri, Oct 2, 2009
11 Posts No Rating |
You're probably right about the other views. How can I access them? I'm sorry to ask such a simple question, but I've been trying to figure that out without any success.
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
2d lines are in 2d views - like plans - sections - elevations.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Fri, Oct 2, 2009
11 Posts No Rating |
The other views were helpful. I (mostly) got it to do what I wanted. Thank you.
|
