One property of the railing confused me.

Brak pattern at > angle greater than> angle

This angle is the railing turning on the horizontal plane or on the vertical plane(like the railing bending at landing)?

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Your help is always your first place to look.  Under railings, they have the type properties listed and it says:

Angled Joins If 2 railing segments meet at an angle in plan but do not connect vertically, Revit Architecture can add vertical or horizontal segments to create a join or add no connector, leaving a gap. This can be used to create a continuous railing where the start of a stair run leading up from a landing cannot be displaced by one tread width. Join methods can be overridden on an connection-by-connection basis. See Modifying Railing Joins.

People who are looking for books on revit should start by just becomming familiar with the help.

This user is offline

xixiha

active

Joined: Sun, Jan 31, 2010
77 Posts
No Rating

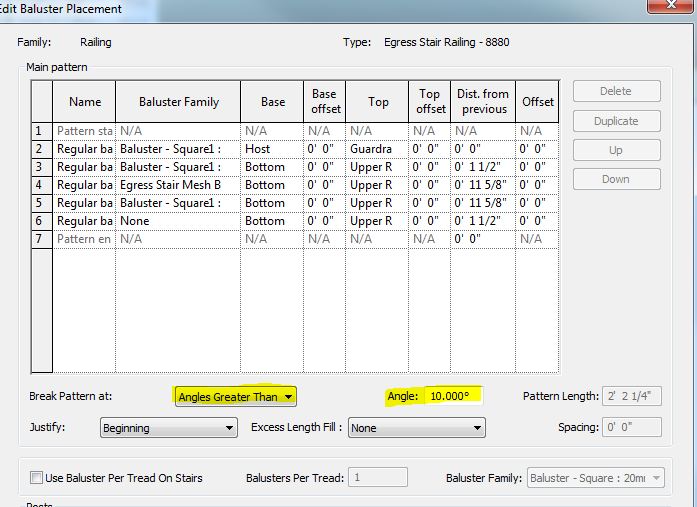

What you have posted is not what I am asking, see attached image, and I read the help before I ask, but the help didn't help me.

It says:

Break Pattern at The point along a railing segment at which the baluster pattern stops. Angle A value specifying the angle at which a pattern breaks. This property is available when Angles Greater Than is selected for Break Pattern At.

 I did some test and inclined to thnk it means a the horizontal angle.
