I am just new to Revit so Please can any one tell me in Objects Styles Menu there is Line Weight and in This there is Projection and CUT what are These.

Thanks

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

"Projection" = when you are not cutting the object.

"Cut" = When you are cutting the object.

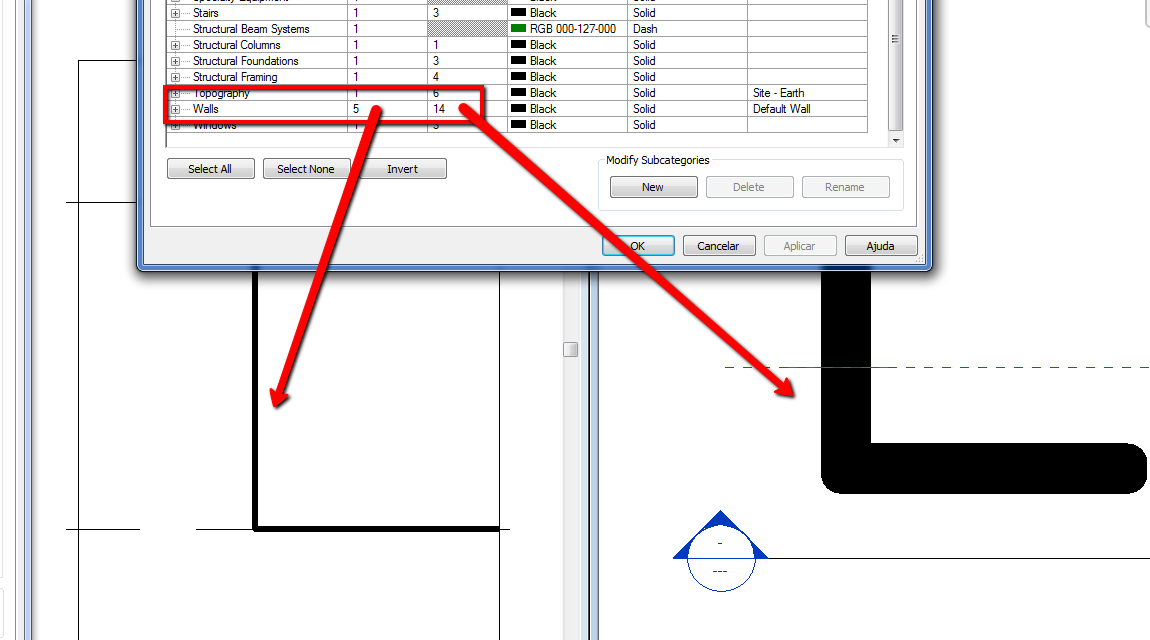

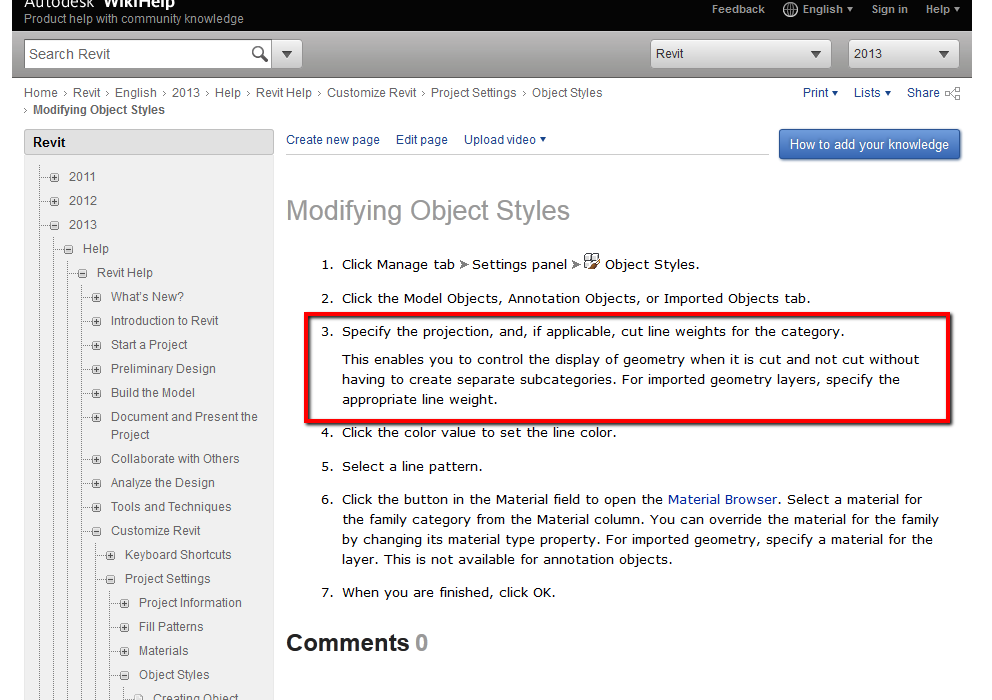

Attached Images

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT
