Hallo everyone,
i am tying to do a roof and seems tha i have a problem that i cant solve.

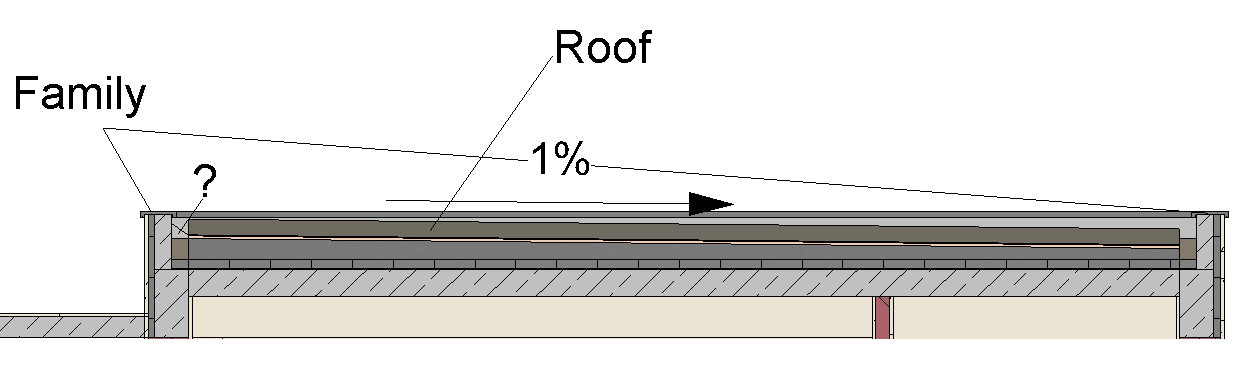

I did this roof with a family and a roof tile, you can see on my foto..
the problem is that my roof has a slope of 1% ,and at every side of the roof i need to make a triangle mortar, (on the photo i have set a question mark.)
i was trying to do this in the family with a sweep. but the only thing i could do was to set this triangle at the 4 sides of the roof with the same height.
I need tha this sweep changes its heigt at every site of the roof inorder to follow the 1% of slope
is there any way to be done?
sorry about my english, i hope you understand what i wantet
thanks
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |
Create In-Place > Solid Sweep, use your "roof edges" to be the PATH
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Tue, Aug 21, 2012
7 Posts No Rating |
i thing you didnt understand me
i mean i wanna do this thing
at one site the tringle has to have a height of 15cm and a the south site for example 5cm
![Smile](/images/smiles/smile.gif)
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Tue, Aug 21, 2012
7 Posts No Rating |
anyone with any idea?
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |
That image is more clear than the other, you have to create that in four pieces with In-place > SWEPT BLEND (two profiles), you'll have to use VOIDS to cut the corners.
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
![](images/spacer.gif) |
active
![Pavan Avatar](user_avatar/6213.jpg)
Joined: Sat, Mar 19, 2005
157 Posts
![4.5 Stars: 3 Votes](/images/stars_4.5.gif) |
Have you tried with Roof modelling. Select the roof and see in options bar.
-----------------------------------
Pavan Reddy
Revit Manager
Intelligence is not always knowing the answers, it's always asking the questions. |
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Tue, Aug 21, 2012
7 Posts No Rating |

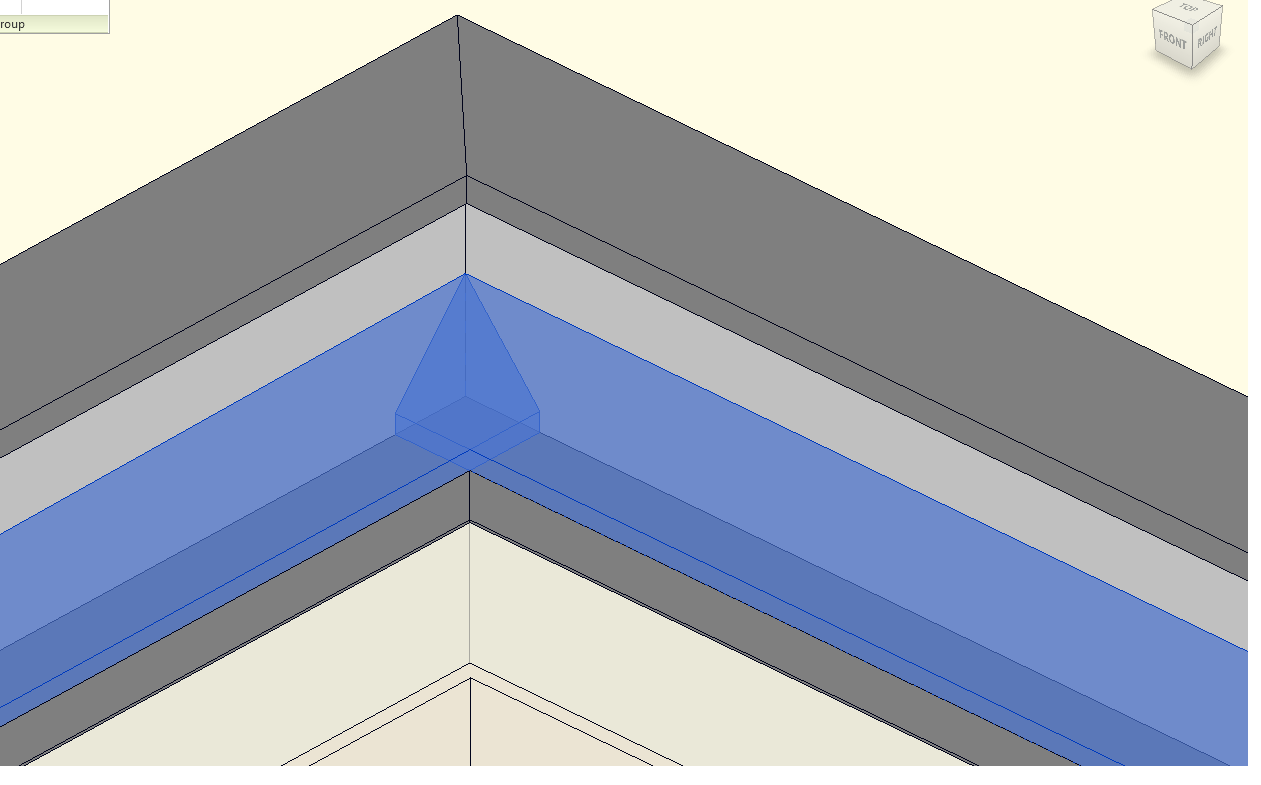

with the roof modeling i cant really do what i whant to build ![Sad](/images/smiles/sadley.gif)
I used to swept blends with difrent heighs and come to this thing
how can i connect them at the corners?
thanks...
|
This user is offline |
|
![](images/spacer.gif) |
active
![Pavan Avatar](user_avatar/6213.jpg)
Joined: Sat, Mar 19, 2005
157 Posts
![4.5 Stars: 3 Votes](/images/stars_4.5.gif) |
Try Join Geometry
-----------------------------------
Pavan Reddy
Revit Manager
Intelligence is not always knowing the answers, it's always asking the questions. |
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Tue, Aug 21, 2012
7 Posts No Rating |
it seems to work
thanks a lot people ![Smile](/images/smiles/smile.gif)
|
This user is offline |
|
