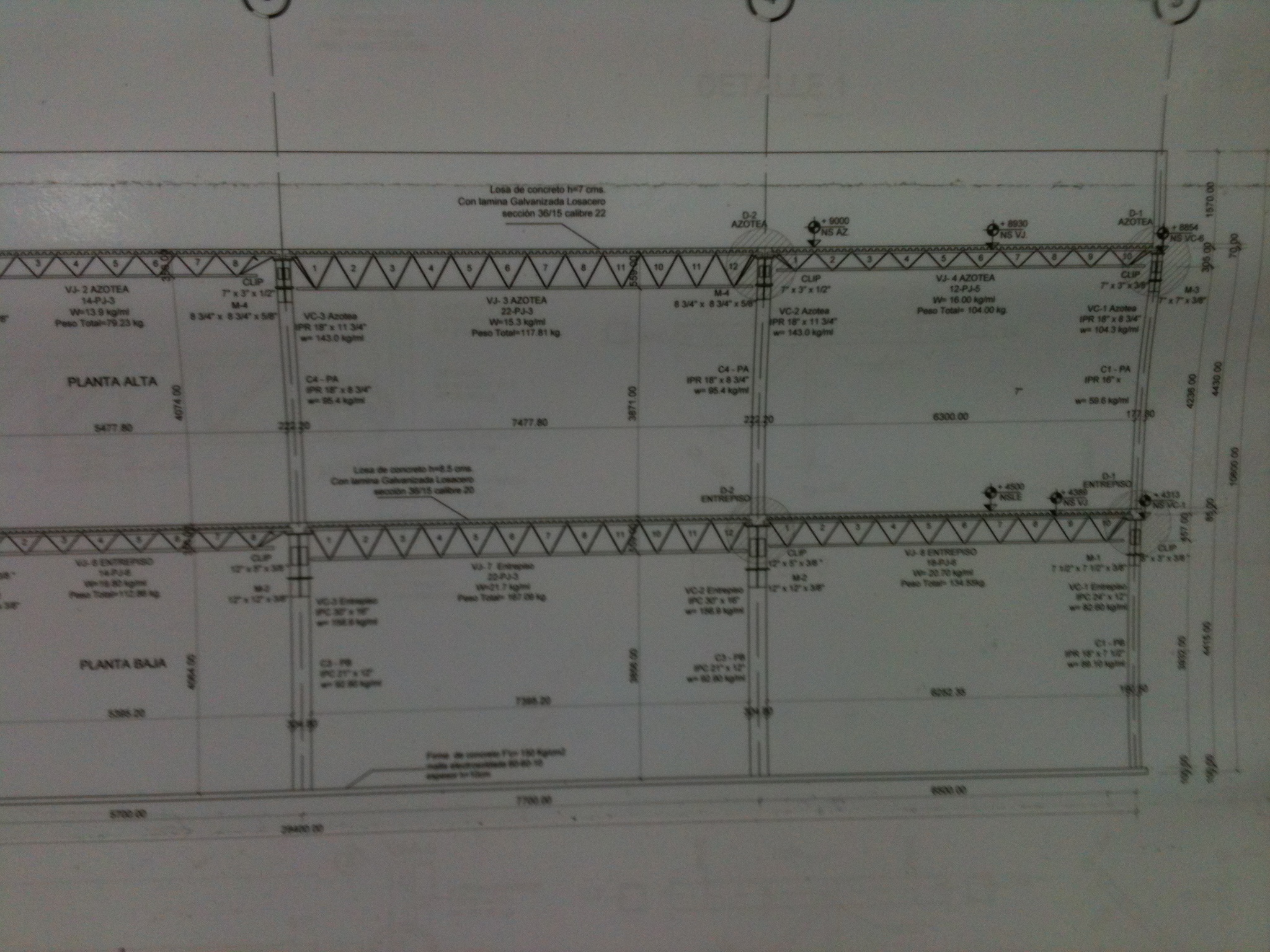

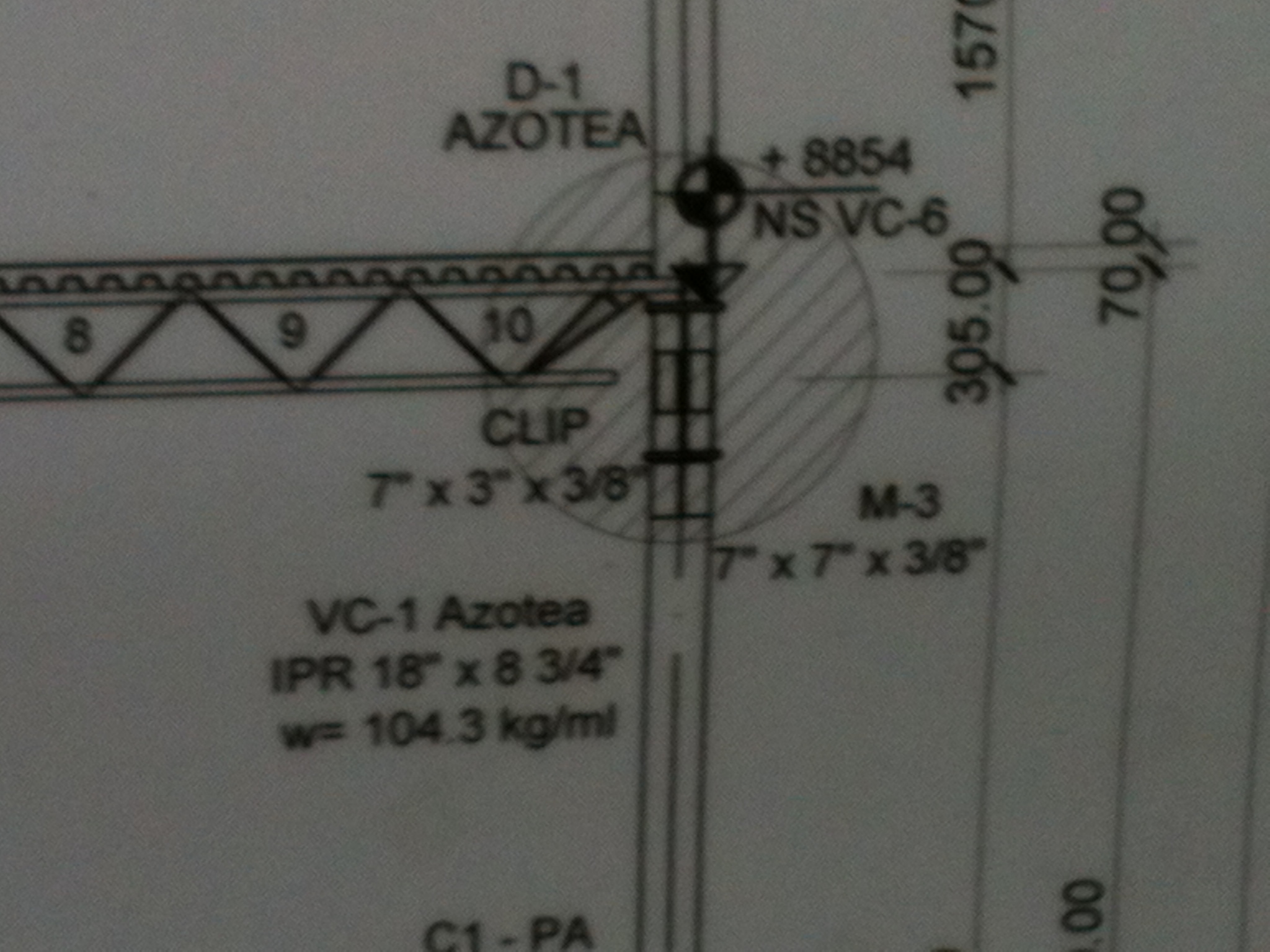

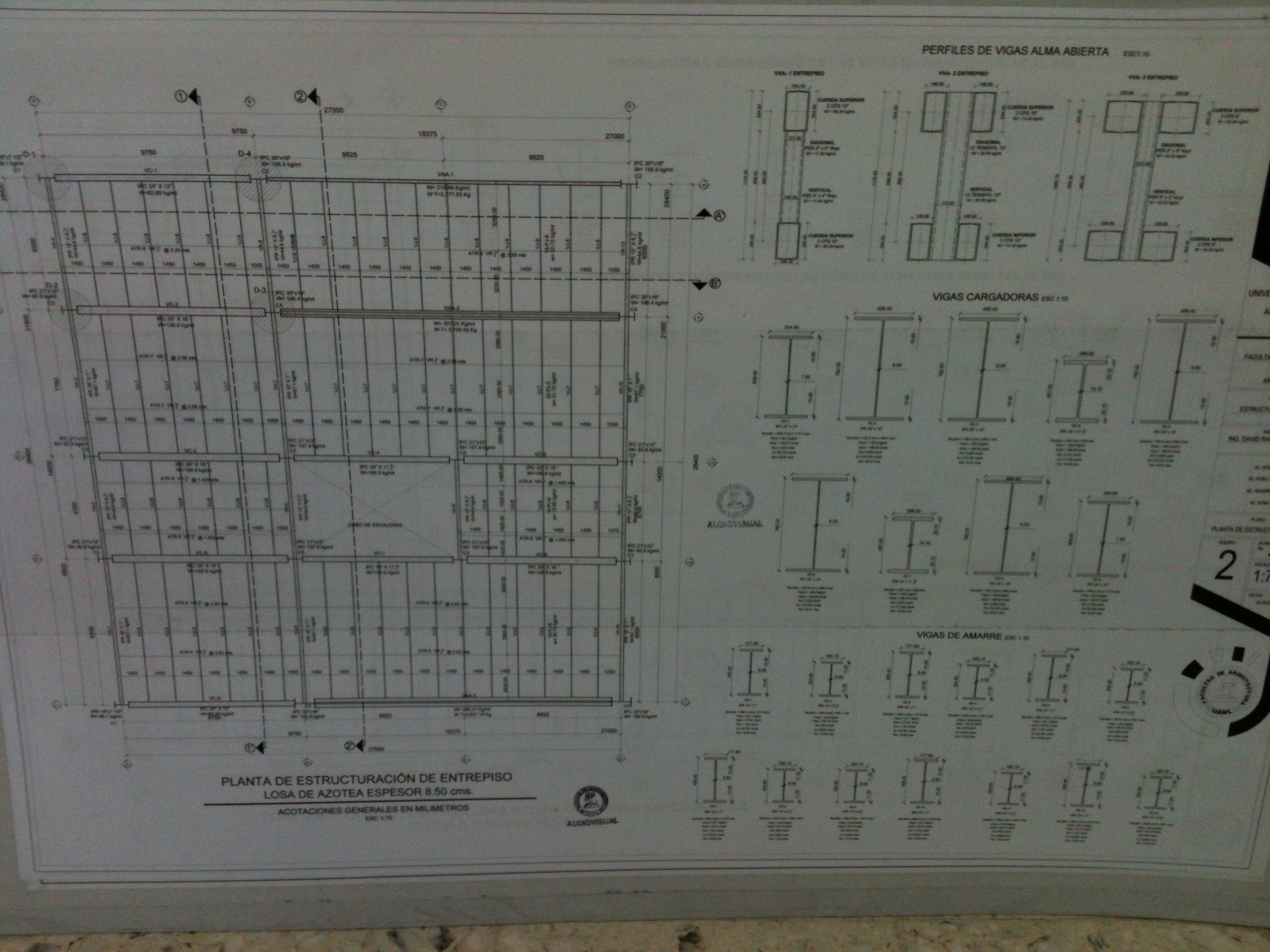

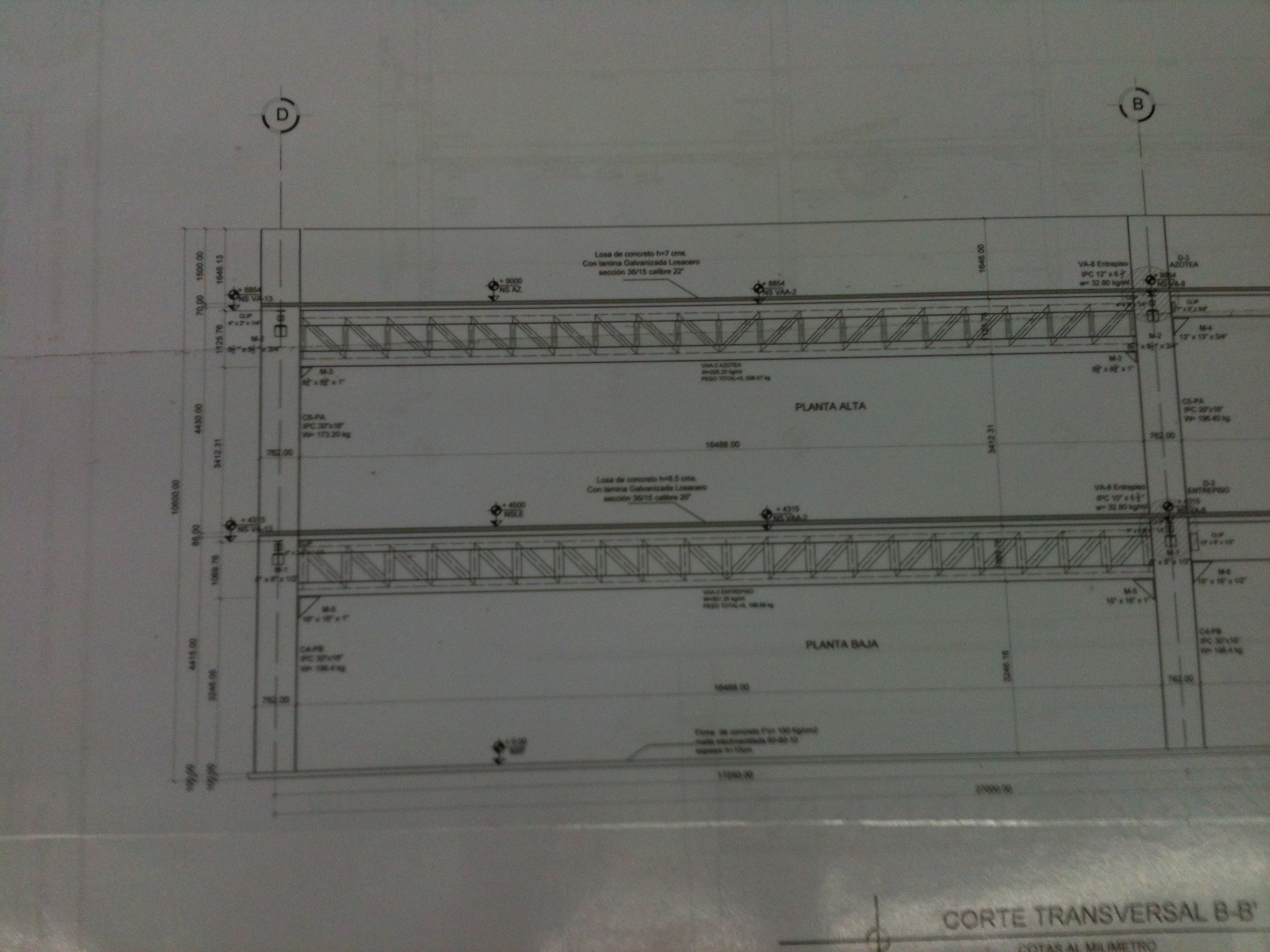

hi, we are working on a school project and we need to do the structural plans like on the attached images, i will like to know which beams are in the example.

the problem is that we have the class in spanish and we are using revit in english, so beams names are kinda different and really dont know if we can detail it that much

i really appreciate since its a very important project

thanks in advance

Attached Images

This user is offline

jlights

active

Joined: Tue, Dec 18, 2007
146 Posts

try this website: http://www.spanishdict.com/translation. They use different sources for translation and give examples in both English and Spanish. Buena suerte.

-----------------------------------

jlights

This user is offline

View Website

aflores83

active

Joined: Tue, Mar 6, 2012
6 Posts

thanks, i know english very well, the issue will be that here beams are not called the same except for some joist, even if we took spanish away is it possible to have the type of beams with its details as on the pictureS?

thanks

This user is offline

Manny

active

Joined: Tue, Apr 24, 2007
104 Posts

try using K-Series Bar Joist-Rod Web and K-Series Bar Joist-Angle Web, these come in your library. espero y te sirban
