Hi All,
i'm using revit 2012 Arch.
i'm in the process of making a Wave shaped roof canopy family. i'm using conceptual Mass fam. template, by drawing the wave shape in South elevation i got it extruded, now my problem is the wave canopy is supported by "X" shaped bracings (20cm x 20cm steel) (see picture) now i need a tip to create the bracings, which are in diagonal & in wave shape, kind off follow the wave curve and yet in diagonal. Any tips to create this shape.
Note: pic's for example only, canopy shape pic (long span facing you)
thx. W
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Those diagonals are on planes. If you did your extrusion from an elevation, do the "same" with flat planes that zee across the bottom of your roof in that elevation. Now place your x-brace on those planes.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Sat, Nov 25, 2006
66 Posts
![2.5 Stars: 3 Votes](/images/stars_2.5.gif) |
thx. for the reply. i guess you did not get my point. those brasings are in the wave shape but in other direction of the wave. and they are not bracings but holding the wave.
those pics i attached are examples only,
W
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
First their bracings, now their not? Come on! An X still exists on a plane.
Edited on: Wed, Sep 12, 2012 at 3:25:54 PM
Edited on: Wed, Sep 12, 2012 at 3:26:22 PM
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Whoops - missed an image.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Sun, Jun 14, 2009
68 Posts
![3.5 Stars: 4 Votes](/images/stars_3.5.gif) |
in the picture youve shown the bracing isnt supporting anything. its just resisting lateral movement or twist.
get your engineer to calculate the member sizes for the "bracing" you show, as its is carrying the roof load.
the connections either end will be interesting !
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Sat, Nov 25, 2006
66 Posts
![2.5 Stars: 3 Votes](/images/stars_2.5.gif) |
Hi, May be my English is not so good to explain the situation. pls. find attached the Family i've created and the Image that i am trying achive.
can you see the X-shaped steel that is underside of the canopy (holding it.)
W
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
![teafoe5 Avatar](user_avatar/204239.jpg)
Joined: Fri, Nov 12, 2010
1749 Posts
![4 Stars: 47 Votes](/images/stars_4.gif) |
The bracing itself is actually curved?
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Sat, Nov 25, 2006
66 Posts
![2.5 Stars: 3 Votes](/images/stars_2.5.gif) |
yes. pls.
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
I would not call this bracing. It looks more like a grid to support the material - like a ceiling grid. I would do it as a texture layer - a material - for 3D. I have no idea how to do it for 2D.
|
This user is offline |
|
![](images/spacer.gif) |
|
active
Joined: Wed, May 14, 2008
209 Posts No Rating |

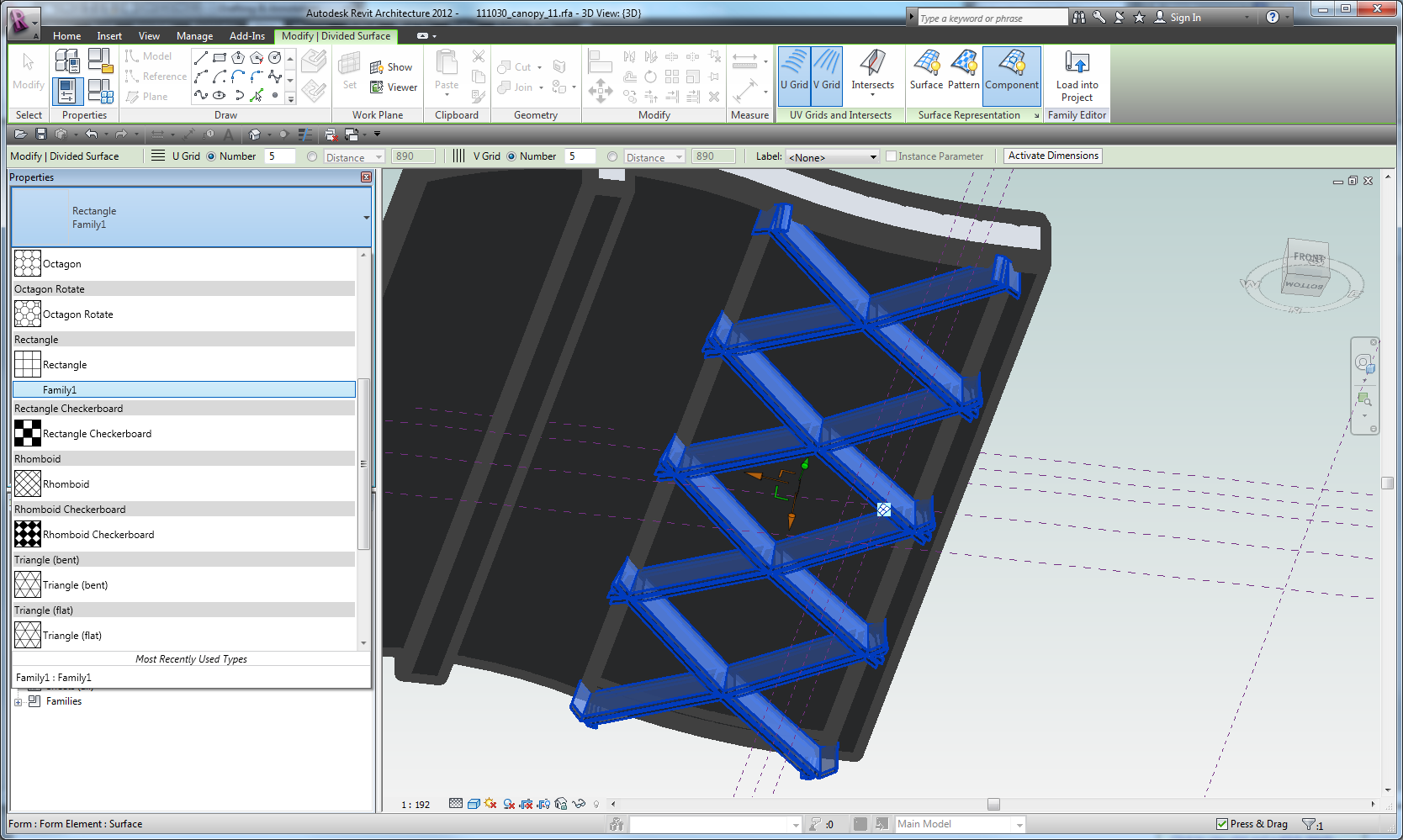

use a pattern based family and create your beam system from it then in your mass model apply the criss cross surface pattern to your bottom of roof andthen apply the paatern you created to it. See atached image.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Sat, Nov 25, 2006
66 Posts
![2.5 Stars: 3 Votes](/images/stars_2.5.gif) |
very good idea, thx a lot. will try it out for sure.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Sat, Nov 25, 2006
66 Posts
![2.5 Stars: 3 Votes](/images/stars_2.5.gif) |
hi All, here it is. once again thanks for the tip.
|
