I'm probably missing something very obvious, but does anyone know how to make a salt box roof? The only thing I can think of is to make a gable larger than the roof I actually want and then using the model-opening tab to cut the part of the gable off that is of no use to me. Is this the best way to do it?
Thanks for any help.
Post edited on 2006-01-09 14:24:06
|
This user is offline |
|
 |
|
|
|
active
Joined: Tue, Dec 20, 2005
55 Posts
 |
I'm fairly new to revit, but I think I have made one by mistake. Do roof by footprint, sketch the area the same way you would a gable, but have one slope higher than the other.
|
This user is offline |
|
|
|
active
Joined: Tue, Dec 20, 2005
55 Posts
|
If that doesn't work, then have only 1 side sloped. Not sure though.
|
This user is offline |
|
|
|
active
Joined: Sun, Apr 25, 2004
1207 Posts
 |
Excuse my Midwest ignorance, but I have no idea what a saltbox roof is.
If you are a subscription customer, log-in to the subscription site and click on the AU2005 link.
There you will find a lot of great material from Autodesk University 2005 (AU).
One of the class handouts has a great guide to creating all sorts of roof types:
BD31-1 : Moving up and Keeping Dry with AutodeskŪ RevitŪ Building - Stairs and Roofs
Download the class datasets and look at the PDF file for different roofs and the best way to tackle them.
HTH
Tom
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, Sep 8, 2005
47 Posts
 |
I believe it is very simple.
what you have to do is :
1. Sketch gable the roof the ways it is expalined on the roof tutorials, determining the lower roof plate desired.
2. Before you finish the sketch you right-click on the line representing the eave of the higher roof plate
3. Click on properties, and change the value of the "Plate Offset From Base" toreflect the desired height from the lower plate.
4. Finish Roof.
Voila.
I hope this works for you
|
This user is offline |
|
|
|
active
Joined: Tue, Jun 29, 2004
543 Posts
 |
I would think roof by extrusion would be the easiest way.

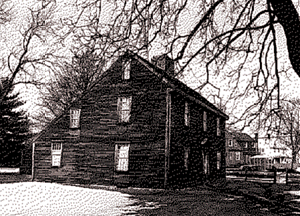

BTW a saltbox is roughly a small square house with a roof starting on the first floor top plate, sometimes lower, much lower, going up to the ridge, and coming back down to a second floor top plate. The theory is the lower roof is to face the north to divert the cold north winds over the roof.
Post edited on 2006-01-09 19:39:00
|
This user is offline |
View Website
|
|
|
active
Joined: Tue, Jun 29, 2004
543 Posts
|
Sorry, this would be much easier to explain.
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, Jul 21, 2005
169 Posts
|
Thanks, y'all. For the two uses, I ended up using a regular gable with a vertical opening (where I needed part of the gable to continue to the eave level and part of it to stop short), and the gable with the height offset. That seems to make the most sense to me. I am finding that setting the height offset gives me the added advantage that the roof moves with my wall when changes occur.
Many thanks for the help.
|
This user is offline |
|
|
|
active
Joined: Thu, Sep 8, 2005
47 Posts
|
The way setting the lower plate while starting the roof sketch and the modification of the roof line (purple) by right clicking and modifying the height as desired to determined the highest plate is the easiest way to create the saltbox roof. it will be modified togeter to the reference wall if the wall is modified.
you must try the steps I mentioned above.
|
This user is offline |
|
|
|
active
Joined: Thu, Sep 8, 2005
47 Posts
|
You must be careful NOT to change the height at the roof property box because it will change the roof plate on the supportingroof walls.
What you need todo is to ONLY change the plate height (Higher or lower) of the roof's edge line that defines the roof slope.
|
This user is offline |
|
|
|
|
|
active
Joined: Wed, Dec 3, 2008
1 Posts
No Rating |
Great! Had the same problem and this really helped. Thanks
|
