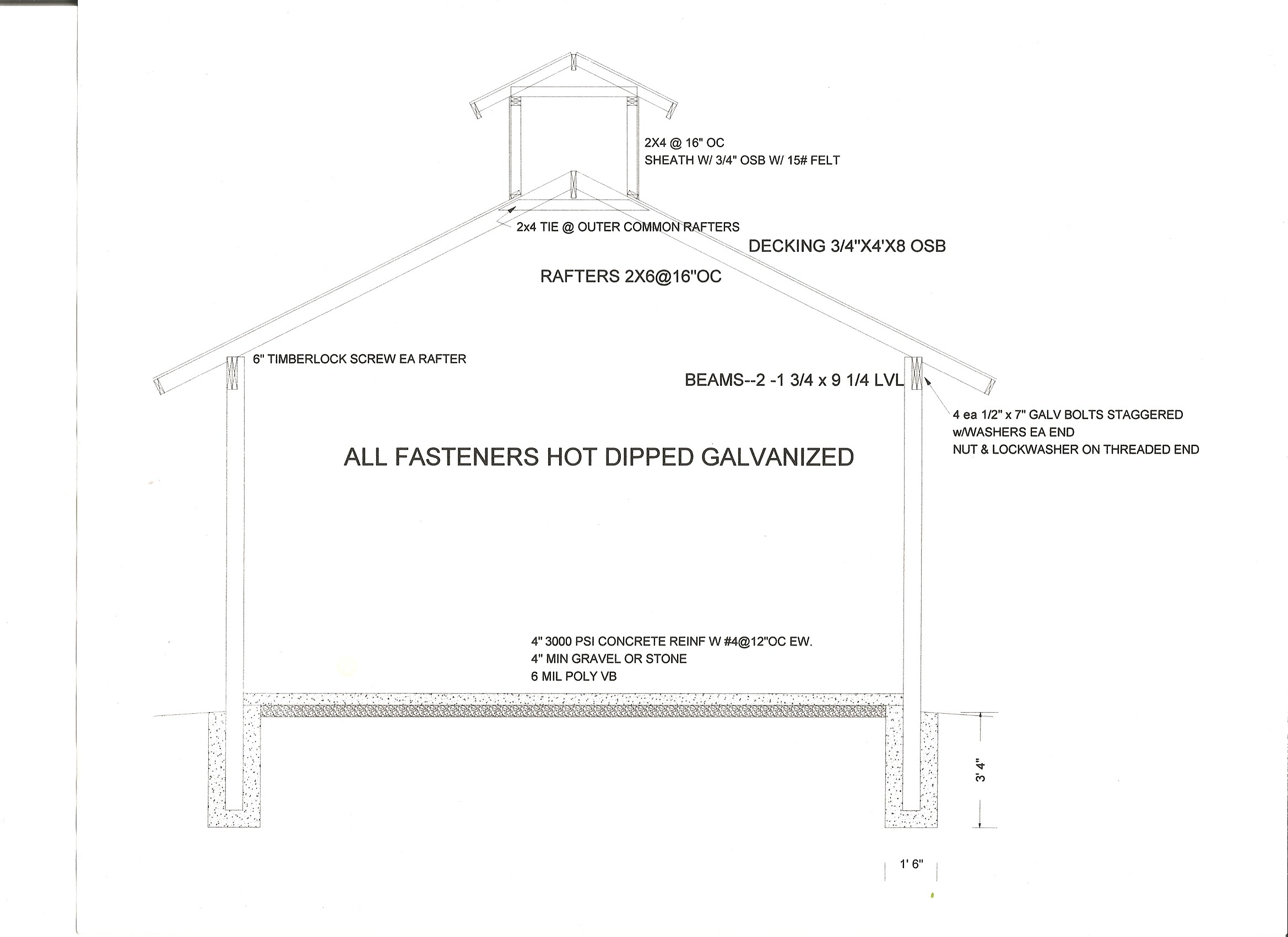

Ok guys, here's my situation. I have a project for a pavilion on a tennis court, concrete slab, 6 post and a asphalt shingle roof, nothing fancy. My problem is that I can't figure out how to properly draw the exposed rafters at their 12/6 or 26.6 degree pitch, which ever you prefer. I drew the rafters in "generic model," birdsmouth included, but the "Ref. level" does not give it any type of pitch. What am I missing?
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
![teafoe5 Avatar](user_avatar/204239.jpg)
Joined: Fri, Nov 12, 2010
1749 Posts
![4 Stars: 47 Votes](/images/stars_4.gif) |
Draw a reference plane at the level and angle that you want it at then when you set your rafter to that plane. Or go to an elevation view and I think you can just move and rotate your rafter to the angle that you need
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
![fstop11 Avatar](user_avatar/322511.jpg)
Joined: Wed, Mar 7, 2012
6 Posts No Rating |
Thanks, that worked perfectly.
|
