How do I create a fixed height boundary wall of a site on its sloped surface. The wall is to be of fixed height throughout such that it maintains a parallel line with the cut line along topo surface.
|
This user is offline |
|
 |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
I have always just sketch, edited the wall to create this affect. You might be able to do a sweep.
|
This user is offline |
|
|
|
active
Joined: Fri, Jun 22, 2012
41 Posts
No Rating |
What do you by sketching. Do you mean you do draw a model line in an insitemass and do a sweep along that line? Even if you that how do you ensure your sketch line is drawn on the surface of yout topo throughout?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
What I meant was I edited the profile of the walls... assuming they are all straight section. I created an elevation for each portion and edited the wall, including the bottom if I wanted step footings.
For a sweep, you would have to create something like 3D lines alog the slope.... not easy.
|
This user is offline |
|
|
|
active
Joined: Fri, Sep 22, 2006
759 Posts
 |
I just looked for and could not find, a technique that I believe elados, proposed which seemed rather involved but which would work good for this item. It was to create a path on a topo. Seemed like he cut out the topo and then I think he exported to CAD, then imported back to Revit as roof, then created edge on roof with gutter, think he was making a path, but edge could be wall or fence. You might try looking there.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|

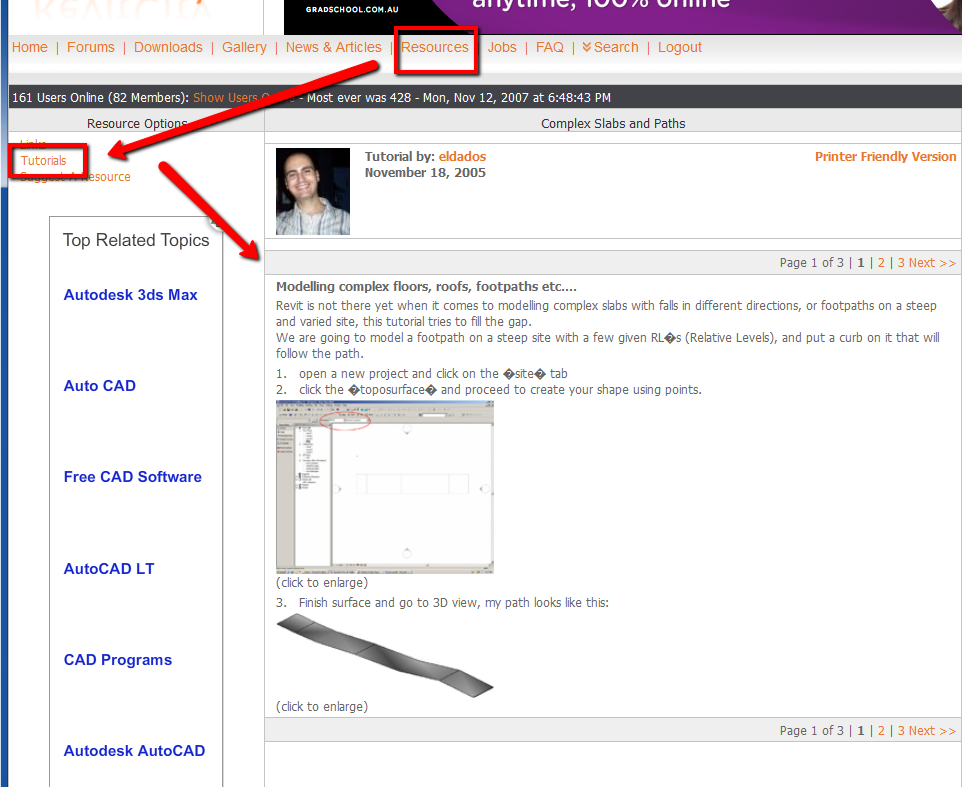

This one Steve?
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Fri, Sep 22, 2006
759 Posts
|
Yes Ty, that is the one I was thinking of, I found in my book finally,
http://www.revitcity.com/tutorials/complex_slabs
Maybe that would be place to start.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
I had forgotten this. Good job steve, Ty and especially eldados...
|
This user is offline |
|
|
|
active
Joined: Fri, Jun 22, 2012
41 Posts
No Rating |
Thanks guys but my topo surface is too uneven. It will be too much, tedious and long hours of guess work to use any of these methods. I thought the subregion tool creates surfaces along slopes. If I can't find an accurate solution to this, I will leave this out and do the wall in Maya when I have finished in Revit.
|
This user is offline |
|
|
|
active
Joined: Fri, Jun 22, 2012
41 Posts
No Rating |
May be if there was a way of picking points on surfaces in revit to display their spot levels I may try eldados method.
|
This user is offline |
|
|
|
|
|
active
Joined: Fri, Sep 22, 2006
759 Posts
|
why don't you post a site plan? Maybe something else will be thought of like drawing a workplane on the property line then providing a structural view of the work plane which will be normal to it. then you can trace the path on the work plane and create an extrusion.
|
