Forums >> Revit Building >> Technical Support >> Help making rectangular to circular duct work.
|
|
active
![jenvance00 Avatar](user_avatar/244269.jpg)
Joined: Tue, May 3, 2011
24 Posts No Rating |

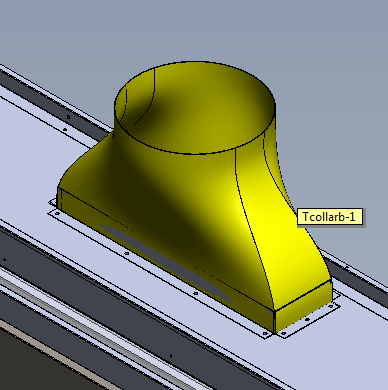

I am trying to make this: see attachment Duct
However, I keep getting this: see attachment Bad Duct
I am not very good at blend, revolve, etc...
If anyone could please make this for me, along with instructions, that would be great! ![Smile](/images/smiles/smile.gif)
|
This user is offline |
View Website
|
![](images/spacer.gif) |
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
I thought these were available in MEP?
Before you ask for a family, it would be wise to tell us your version.
|
This user is offline |
|
![](images/spacer.gif) |
active
![jenvance00 Avatar](user_avatar/244269.jpg)
Joined: Tue, May 3, 2011
24 Posts No Rating |
I used the Extrustion-Blend method. Starting with a 12" rectangular bottom, and a 6" circular top. I then performed a a similar Void Form-Blend by offsetting the previous dimension 1/4".
I would just like for it to be more round in the center, like the duct attachment. Mine, the bad duct attachment, doesnt appear to be as spot on as i would like it to be.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Instead of the void, just offset the rectangle and circle each the duct thickness.
|
This user is offline |
|
![](images/spacer.gif) |
active
![jenvance00 Avatar](user_avatar/244269.jpg)
Joined: Tue, May 3, 2011
24 Posts No Rating |
Tried that. Error message stating that I can only have 1 enclosed loop.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
