Dear all,

i have modeled a 2d truss using the metric structural truss template. however in my truss their are two different diagonal web sizes.

however i only seem to be able to too have one size for all. i want to use real steel sizes not extrusions as i want to be able to take a steel take off on the model.

is it possible to have two different diagonal web types within the family types dialog box.

kind regards

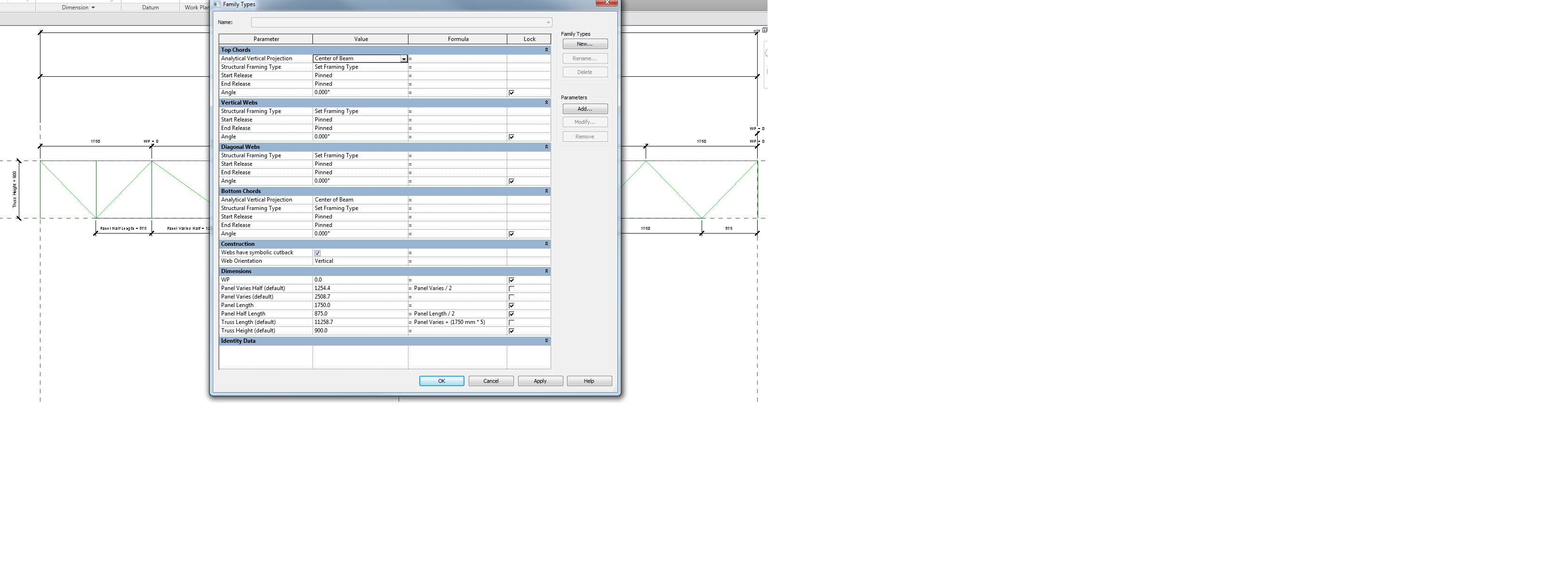

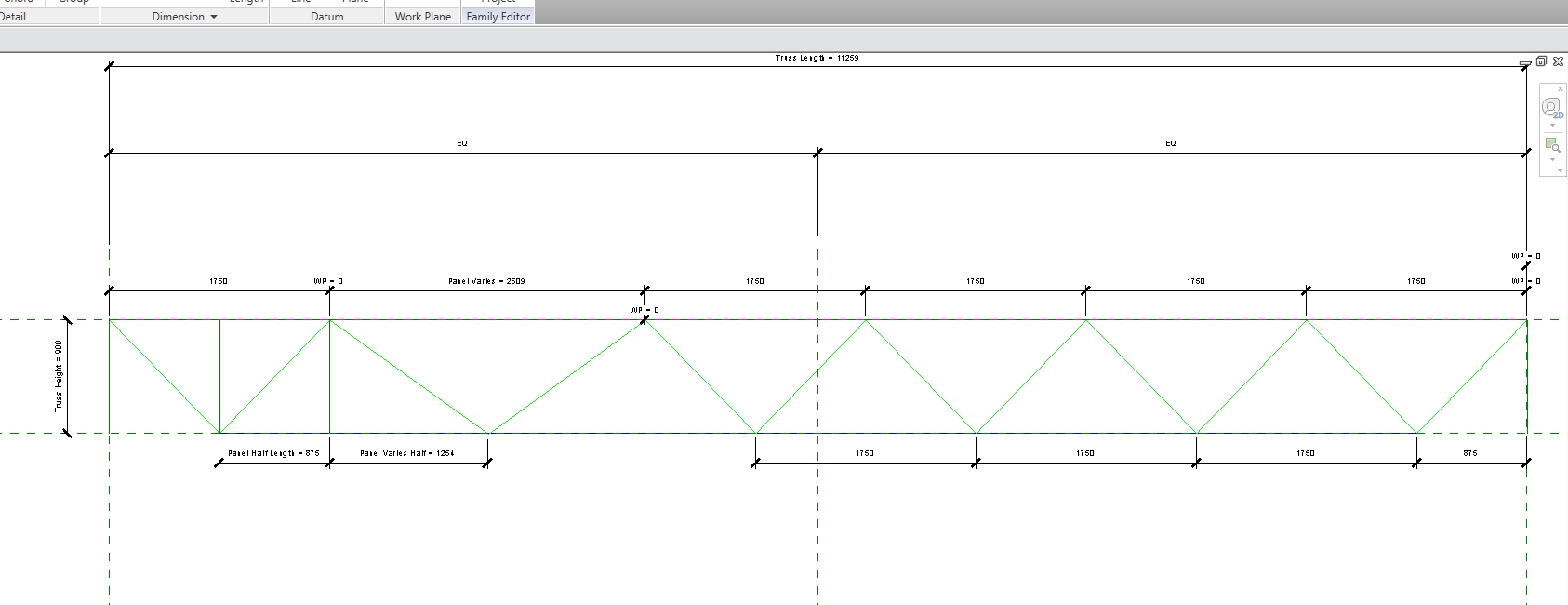

Attached Images

This user is offline

teafoe5

site moderator|||

Joined: Fri, Nov 12, 2010
1749 Posts

As far as I have seen in a line based truss family you can only have one type of web.
