Forums >> Revit Building >> Technical Support >> Ballusters Panels don't fit railings. Attached pictures

keeza09

active

Joined: Fri, Nov 4, 2011
27 Posts
No Rating

I am using Revit Architecture 2011 and I am trying to set up a railing for a set of stairs, however the panels aren't quite working how I would like. I am trying to use 1000mm panels for the bulk, however, I would like to fit an appropriate panel size where a 1000mm panel won't fit, obviously, eg. toward the end of the rails or on the small horizontal rails.

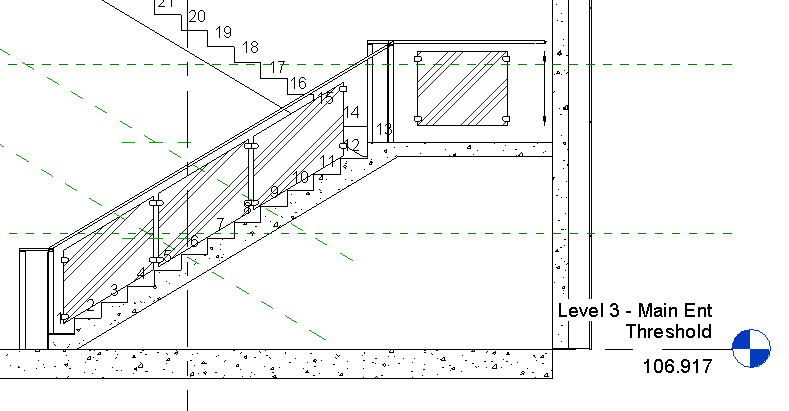

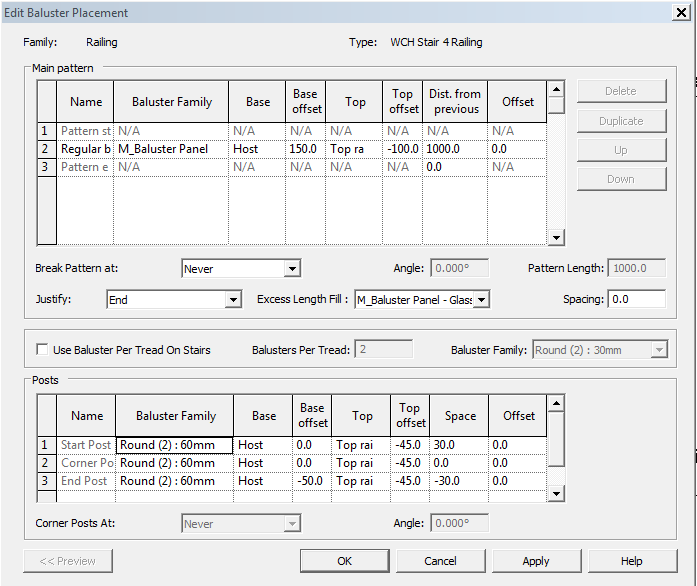

For a clearer idea of the problem, I have attached a picture of the stairs and also the 'EDIT TYPE' > 'BALLUSTER PLACEMENT' window. As you can see in the picture of the stairs, I am trying to fit panels to the rail for the stairs (for which I created a ramp as well as the stairs and then hid the ramp, leaving the stairs and the rail for the ramp) and the smaller horizontal panels section.

Thanks in advance for any answers!

Kieran

Attached Images

This user is offline

keeza09

active

Joined: Fri, Nov 4, 2011
27 Posts
No Rating

bump

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Tom Dormer posted elsewhere (similar threads):

"I suggest downloading the most definitive guide on stairs from Phil Read.

http://dl.dropbox.com/u/125962/AB114-1.pdf

Phil worked for Revit before purchased by Autodesk and continued to work for Autodesk for a number of years.  He is also co-author of the new Mastering Revit book.

His blog: http://www.architecture-tech.com/  "
