Forums >> Revit Building >> Tips & Tricks >> Arched window with head height parameter(not oval arch)

dingohot

active

Joined: Mon, Mar 15, 2010
199 Posts

It's queit easy to make a family with half oval beacause oval provide two dimensions.

But if you want to use arc, it's not that simple.

Try this when you need a arched window family that can be changed head height but rectagle height.

I used the Pythagorean theorem for it.

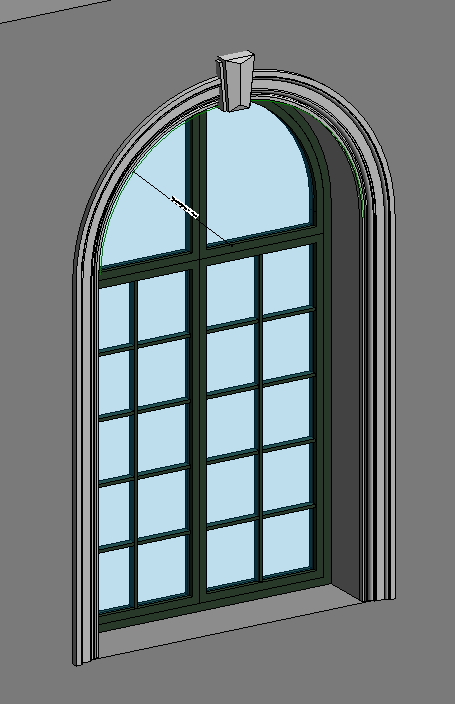

attached images will help you to understand.(it's Korean ver. but that won't be a problem.)

if you can read Korean, visit my blog.

if not?  That's OK, just enjoy images...

http://blog.naver.com/dingo72
