Hi

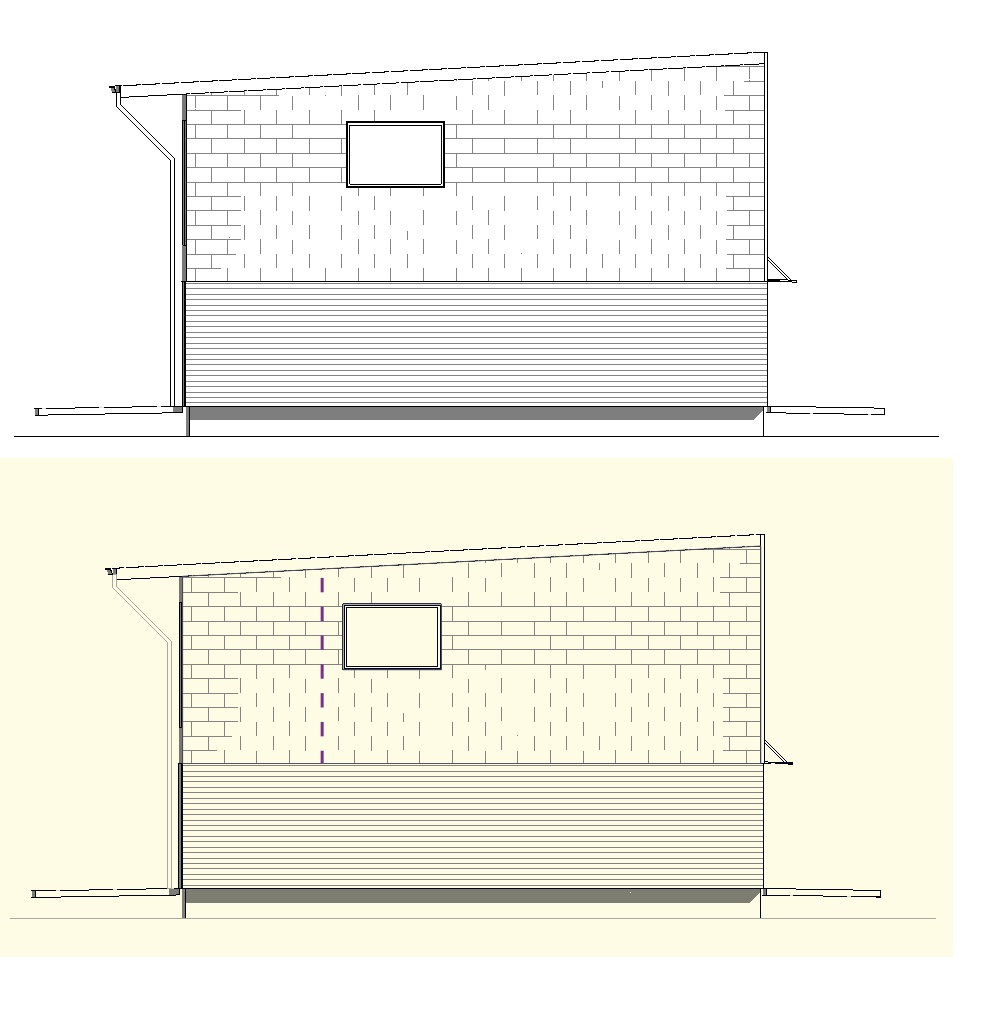

I'm on the verge of insanity because I can't seem to find out why lines disappear on elevations, sections ect. It's mostly hatches that become irreconcilable but also sometimes a simple outline of a roof, wall ect. I'm using RevitArcchitecture2011. It isn’t on the screen and it doesn’t show on prints - but the hatch is still there - just not visible (see attachment)… I really hope someone can help me with this.

Laura

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

This is probably a graphics card issue.  I have never seen this as a Revit issue.  Tell us a little more about your system and if you have hardware acceleration on.  If you have that on, you might try turning it off.  Under the Revit R pulldown / options / graphics tab.

This user is offline

Laura83

active

Joined: Fri, Feb 4, 2011
2 Posts
No Rating

I checked and don't have the acceleration on. I'm not quite sure what information that'll be useful for you but can tell you that I run windows 7 professional, with processor: Intel® Xeon® CPU W3520 @ 2.67GHz and my graphic card is a NVIDIA Quadro FX 1800… Tell me if it wasn’t these informations you were looking for?

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Typhoon asks if you have installed the WEBs update for 2011 and if you installed the latest drivers for that GR. Card
