Forums >> Revit Building >> Technical Support >> how to make an two dimentions of horizontal pattern in revit.

fairywiner

active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating

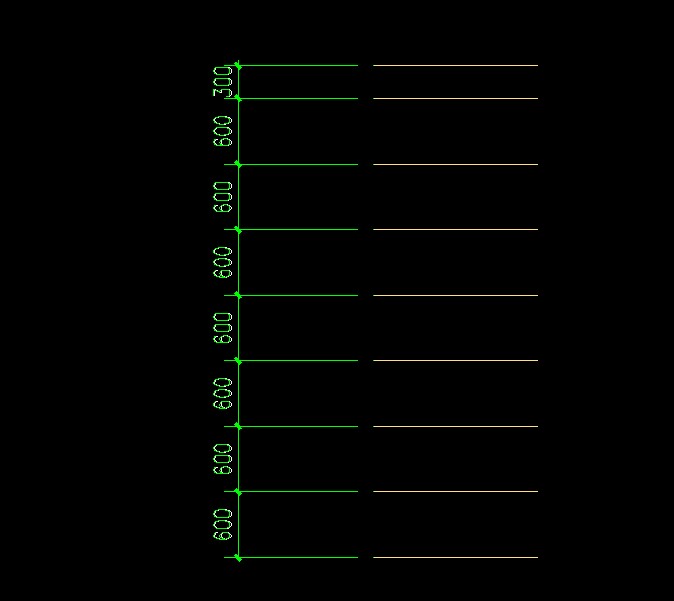

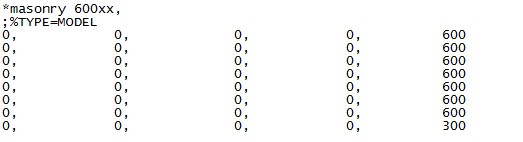

I want to make a specific pattern like my cad picture.  with seven six hundred millimeter and one three hundred millimeter horizontal line.  The second picture showed my pat file, but when I loaded it into my wall, it only shows three hundred millimeter pattern without the shift between 6 millimeter and 3 millimeter pattern.

Attached Images

-----------------------------------

沧海月明珠有泪

This user is offline

nastyclown

active

Joined: Mon, Jul 13, 2009
273 Posts

Here you go. Its not perfect, but it works. Feel free to edit/share

This user is offline

fairywiner

active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating

I have worked out my script based on your pat, thank you!!!!

-----------------------------------

沧海月明珠有泪

This user is offline

How do i make an allternating horizontal 4" and 8" .pat file in notepad???
