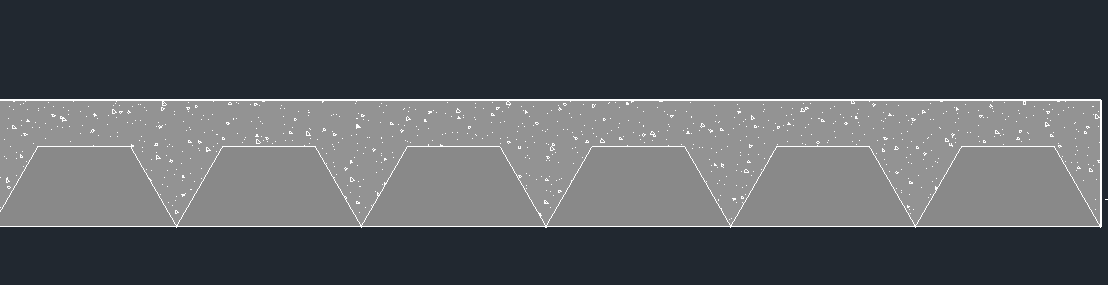

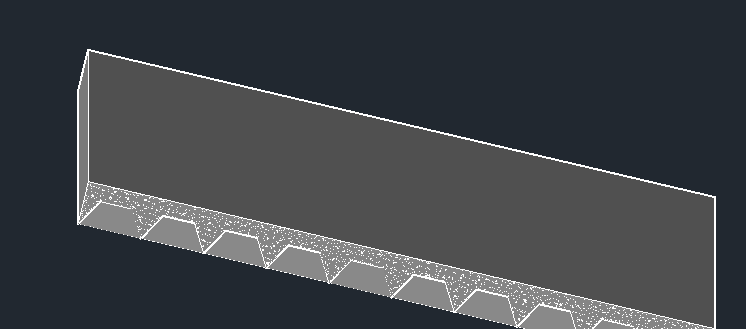

I want to build a deck element as shown in pictures below. I would not use "model in place" feature. Are there other ways you can model it in Revit?
PLZ help
|
This user is offline |
|
 | |
|
|
active
Joined: Fri, Sep 22, 2006
759 Posts
 |
This is the standard structural slab floor you are looking for I believe it is provided in the original Revit 2012.
|
This user is offline |
|
|
|
active
Joined: Fri, Jun 17, 2011
220 Posts
|

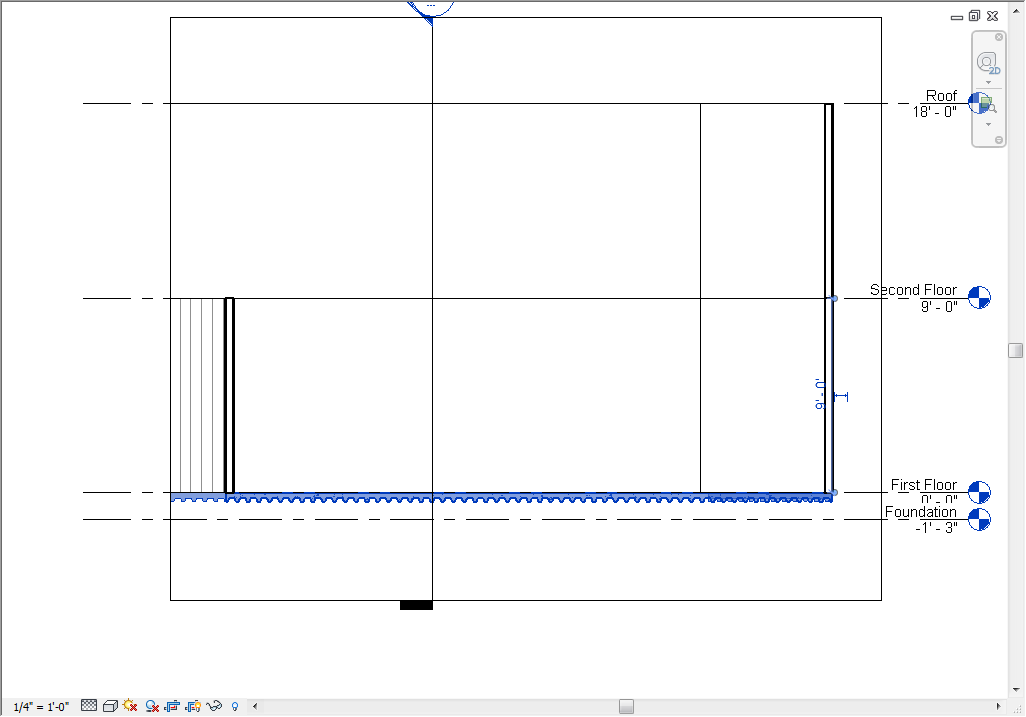

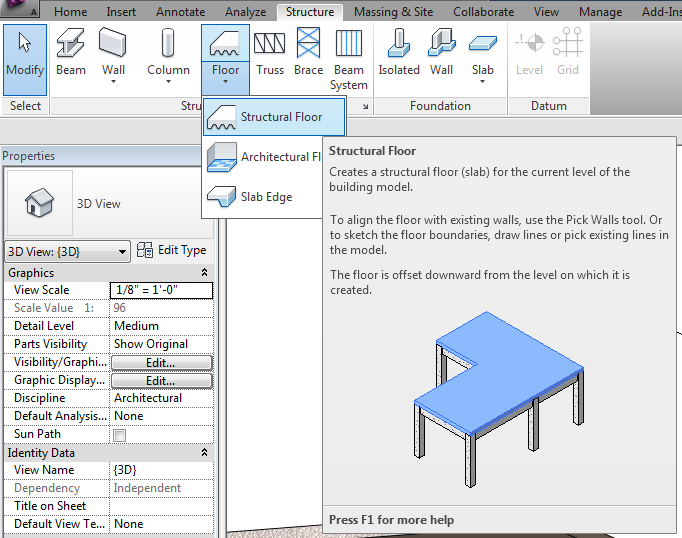

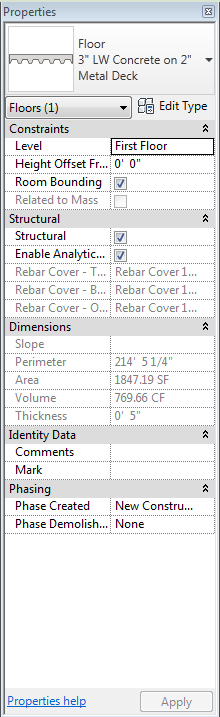

mbsteve is right, this is an out-of-the-box feature of revit, under the structural tab, create a structural floor (see image 1) if there is not a default floor set up, then create a new one with the properties shown in image 2. note that you'll have to load the deck profile in before creating the floor... Profiles\Structural\Form Deck_Composite
|
This user is offline |
|
|
|
active
Joined: Sun, Jul 25, 2010
5 Posts
No Rating |

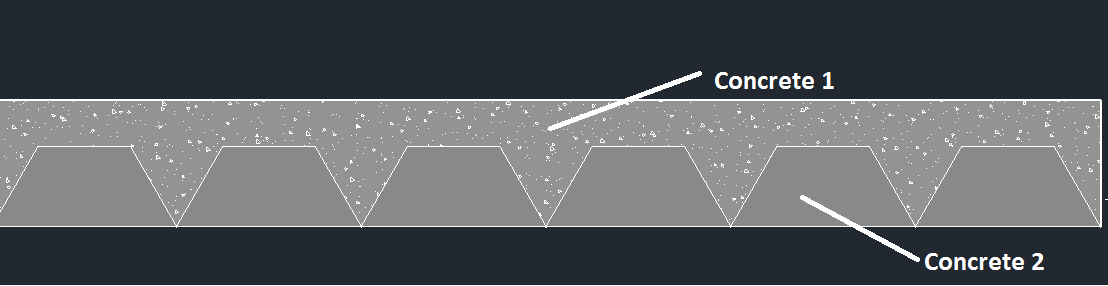

Thank you for your answer. It is not a standard deck, since we have two different kinds of concrete, which are merging. I had tried to solve the problem with"structure floor", but without success. Can you do it with "Structure floor 'or another feature? Look at the picture below
|
This user is offline |
|
|
|
active
Joined: Mon, Jul 13, 2009
273 Posts
 |
maybe with an curtain wall, on a roof acting like the deck you are describing. But is going to overload the revit model (be careful with that)
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
PUTOPUTO - I have never seen a floor loke that.
Why is it made like that?
I see you are from Denmark but this is really strange. Is the lower element precast and it is inverted when placed then topped?
Fixed typo error.....
Edited on: Sun, Aug 28, 2011 at 11:16:21 AM
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
I think you're the same person who sent me an email yesterday about this same problem and you said "It should be like a Family, or object, where everyone must be able to retrieve my object and use it in their project, so I can not do it with "model in place", You can create that with an "In-Place" if you want but before you finish the in-place, select the two obj. and create a "GROUP", then "Save As > Library > Group", now your group is a family and you can share that "Family".
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
