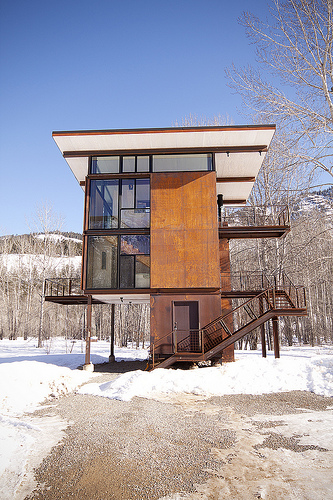

Does anyone know how to get railing balusters to work like the railing in this Kundig building--that is, how to angle them 90 degrees to the angle of the stair run?  This is as close an image as I can find online.  Thanks.

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

The railing tool will not work for specialty railings like this.  Use the railing tool to make the railing only.  Then add ballusters seperately from a family you create.

This user is offline

mhostetler

active

Joined: Tue, Jun 15, 2010
11 Posts
No Rating

Thanks WWHUB. Do you mean that the balusters--in this case both the posts and the verticals for the wire mesh--would need to be inserted separately same as a mass) and rotated in space without association to the railing? I think you're saying that the rail structure will handle it, because the rails run parallel to the run, but not the balusters?  Thanks for the clarification.

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Railings in Revit can be a challage but some people are up to it: http://revit-alize.blogspot.com/2005/11/stairway-to-heaven.html
