How can I hide the fill pattern on only one of the topographies.
SITE SETTING, will hide / reveal them all but I need only one terrain (the existing one) to not have a pattern.
-----------------------------------
Do you wanna SKYPE Revit? Its quicker  |
This user is offline |
View Website
|
 |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
I think you waill have to add a pad there. If you still want that topogarphy in plan, phases might work.
|
This user is offline |
|
|
|
active
Joined: Thu, Dec 16, 2010
90 Posts
No Rating |
- Both terrains are correctly Phased as "New" and "Existing".

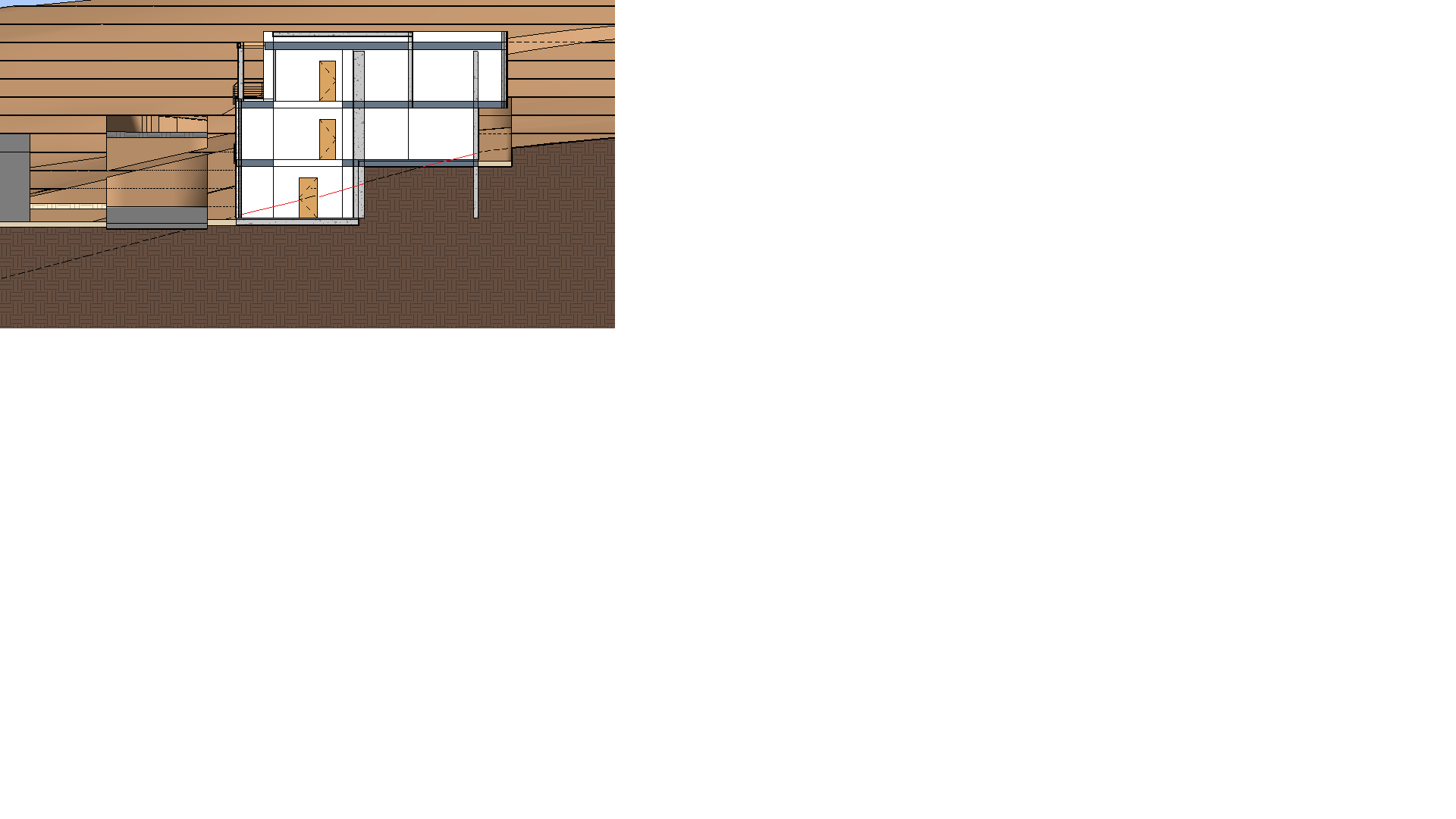

- The bottom "floor" is a PAD applied to the NEW TERRAIN, (marked in blue on the illustration above).
- The terrain with the red arrow is the OLD TERRAIN and of course we need it to show, but we do not need its PATTERN to go through the building.
How do we hide its pattern?
Edited on: Tue, Jul 5, 2011 at 8:29:59 AM
-----------------------------------
Do you wanna SKYPE Revit? Its quicker |
This user is offline |
View Website
|
|
|
active
Joined: Thu, May 28, 2009
829 Posts
 |
select it, right click, override graphics in view by element, turn off cut pattern.
|
This user is offline |
|
|
|
active
Joined: Thu, Dec 16, 2010
90 Posts
No Rating |
In REVIT 2011 you cannot override properties of a Topography element. ("...as far as I know...")
How did you manage that?
-----------------------------------
Do you wanna SKYPE Revit? Its quicker |
This user is offline |
View Website
|
|
|
active
Joined: Thu, May 28, 2009
829 Posts
|
I just fired up 2011, works the same as 2012 regarding override by element. You just have to select the topo in your section--grab the upper surface, you can't select the hatch, right click, override graphics in view, by element... And I did misinform you a little, you need to disable the -surface- pattern, not the cut pattern in order to remove the earth fill.
I've never seen the error you mention.
Also, I don't know if you're doing some phasing work that neccessitates seeing that uncut topo in other views...? but WWs suggestion of a pad is good, if not.
|
This user is offline |
|
|
|
active
Joined: Thu, Dec 16, 2010
90 Posts
No Rating |
THANK YOU Fantastic!
To sum it up for other users:
Topography CUT PATTERNS are not controled by CUT PATTERNS but by SURFACE PATTERNS.
-----------------------------------
Do you wanna SKYPE Revit? Its quicker |
This user is offline |
View Website
|
|
|
active
Joined: Thu, Dec 16, 2010
90 Posts
No Rating |
When I though it was solved :-(
The fill still appeers in SHADED MODE. Any idea how to remove that as well?
-----------------------------------
Do you wanna SKYPE Revit? Its quicker |
This user is offline |
View Website
|
|
|
active
Joined: Thu, May 28, 2009
829 Posts
|
If you go back to override by element, check "transparent" at the top, and that should do it for you.
|
This user is offline |
|
|
|
active
Joined: Thu, Dec 16, 2010
90 Posts
No Rating |
WOW... you good Thanks!One last wuestion, hopefully:
-----------------------------------
Do you wanna SKYPE Revit? Its quicker |
This user is offline |
View Website
|
|
|
|
|
active
Joined: Thu, Aug 7, 2014
0 Posts
No Rating |
Hello
Seems like problems here are being solved :D
i have a little problem. how can i make the normal Terrain dashed line appear above the building and the pads. (the building is a linked revit file)?
it is visible on the topography and the doors only :s
thanks in advance
|
