Forums >> Revit Building >> Tips & Tricks >> CADclip on creating a Roof Cricket
|
|
active
![dgcad Avatar](user_avatar/6183.jpg)
Joined: Thu, Mar 17, 2005
1231 Posts
![3.5 Stars: 36 Votes](/images/stars_3.5.gif) |
Here is a link to a CADclip on creating a Roof Cricket at a roof penetration.
http://youtu.be/_u-MoFxSuCk
Edited on: Mon, Jun 27, 2011 at 5:23:48 PM
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
![](images/spacer.gif) |
|
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |
Why don't you just create two "Slope Arrows" with the slope you want? you don't need to create those extra segments (2 mm).
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
![](images/spacer.gif) |
active
![dgcad Avatar](user_avatar/6183.jpg)
Joined: Thu, Mar 17, 2005
1231 Posts
![3.5 Stars: 36 Votes](/images/stars_3.5.gif) |
Very Good Point.
You could definately use 'slope arrows' from within the roof sketch mode.

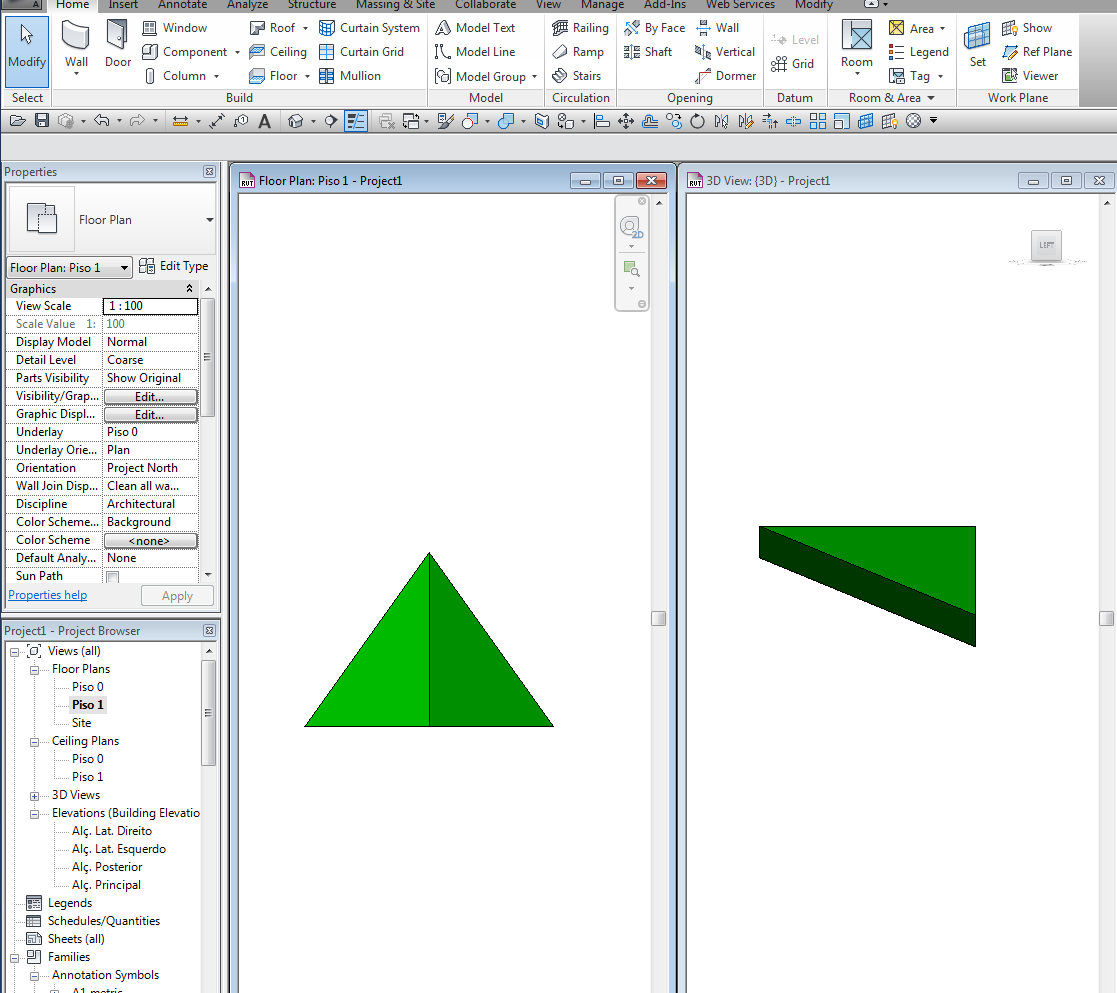

In the attached image I placed the 2 slope arrows along the gable end of the cricket pointing towards the middle of the cricket.
Note the reference plane marking the middle of the cricket and also note that you do NOT need to split the roof footprint linework on the gable edge. The roof footprint is made up of 3 segments only.

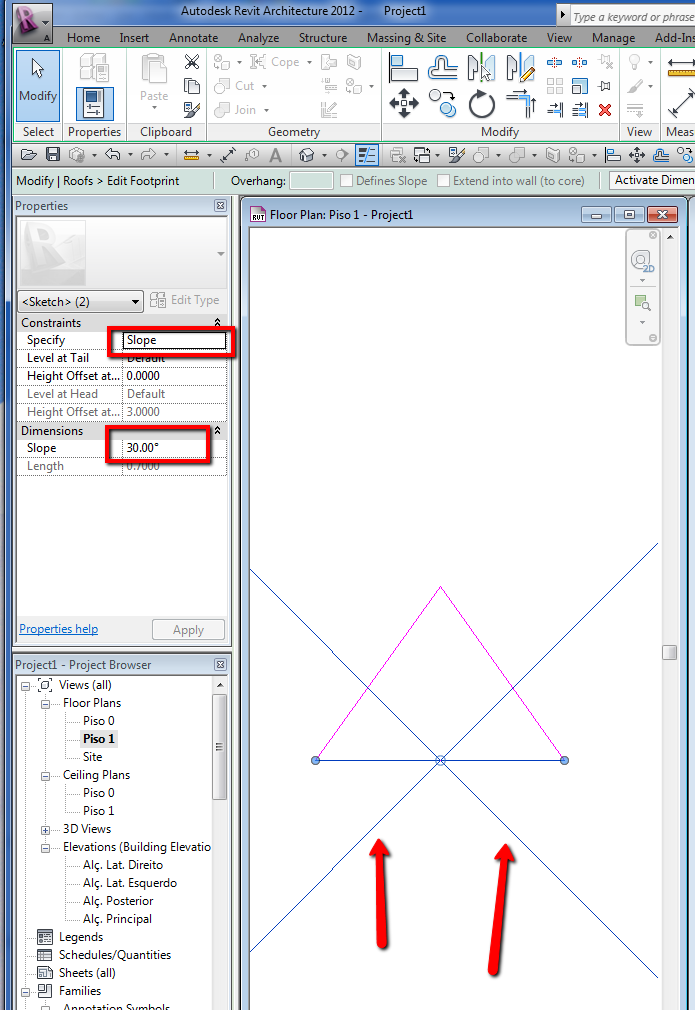

Then to set the slope properties select the slope arrow(s) and use the properties palette. You can modify both arrows at the same time.
I will modify the CADclip and append the video link.
(I've tried 3 different web browsers and cannot seem to be able to upload an image (28 kb jpg) to this site anymore ??)
Edited on: Tue, Jun 28, 2011 at 7:48:16 AM
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
![](images/spacer.gif) |
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |

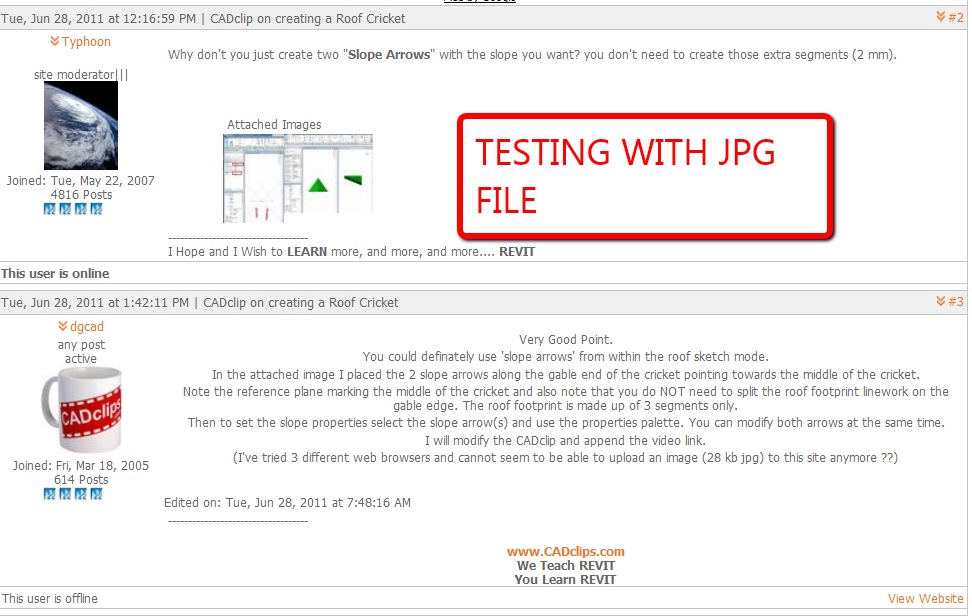

testing with JPG 153 Kb, no problem, I will report this issue to ADMIN....
Edited on: Tue, Jun 28, 2011 at 9:38:47 AM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
![](images/spacer.gif) |
