Forums >> Revit Building >> Technical Support >> Getting rid of material lines within walls
|
|
active
Joined: Wed, Apr 27, 2011
20 Posts No Rating |

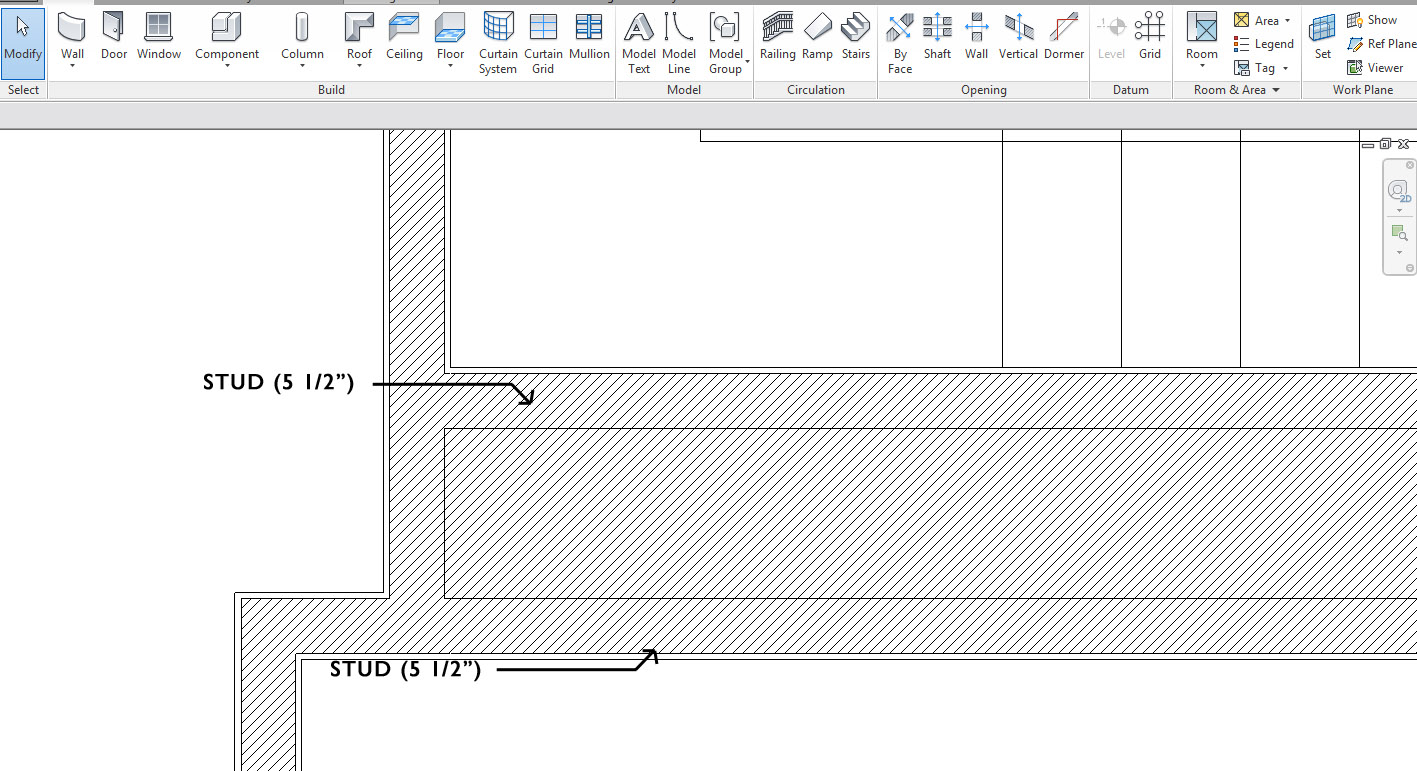

Does anyone know how to get rid of the lines that represent the different materials of a wall? The attached image is of a (2) 2x6 wall with a 17 1/2" air gap. Currently the lines for the air gap are showing. Is there anyway I can modify the settings of the wall so they don't show up? I tried merging the regions, but all it did was combine the materials. I would like to keep the materials separate. (I'm using Revit 2012)
Thank you!
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Each layer of the wall will be represented in medium & fine plan views. You can use the line tool on these in each view and change them to invisible lines but this is only useful for a few instances..
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Wed, Oct 7, 2009
654 Posts
![4 Stars: 7 Votes](/images/stars_4.gif) |
You should also be able to go to V/G and change the wall category to Coarse in the view.
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
![coreed Avatar](user_avatar/14568.jpg)
Joined: Fri, Feb 10, 2006
1874 Posts
![4 Stars: 16 Votes](/images/stars_4.gif) |
why not draw this as two seperate walls with 17 1/2" in between them?
-----------------------------------
best regards, coreed,aia bmpArchitects,Inc. "Revit has to be implemented, Not installed." Long Live Revit |
This user is offline |
|
![](images/spacer.gif) |
active
![thetabest Avatar](user_avatar/231785.jpg)
Joined: Tue, Mar 15, 2011
199 Posts
![3 Stars: 2 Votes](/images/stars_3.gif) |
Do the following: select visibility graphics overrides for said view, then select the Cut Line Styles checkbox. Then select the edit button, pops up a dialog box from which you can control the lineweight of each layer, based upon its number, i.e.- [1], [2], etc.
Oops, this is if you WANT to show the lines as different line weights, misread your question!
Edited on: Tue, May 10, 2011 at 1:31:51 PM
-----------------------------------
Trent Best
Best Systems
the.tabest@gmail.com |
