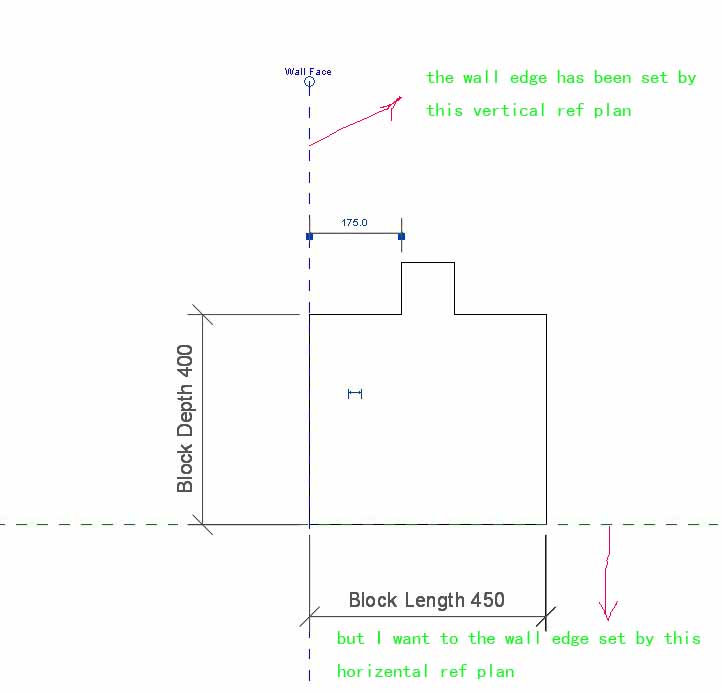

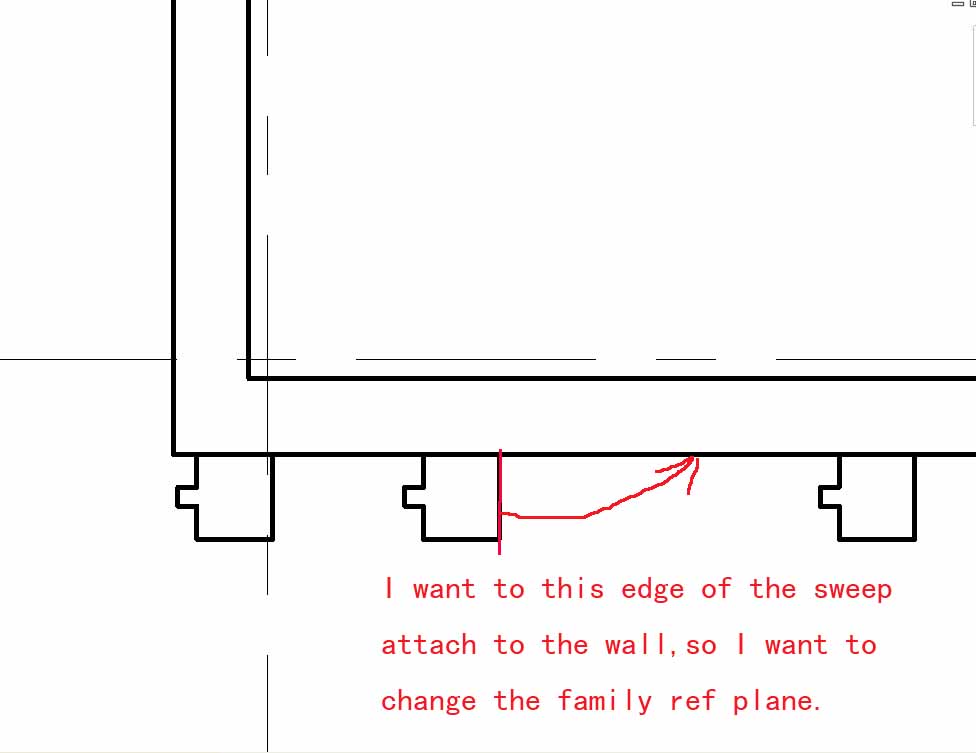

look, my sweep family,  the vertical ref plane has been defined as wall face, so when I upload this sweep to project file, the left of the sweep will attach to the wall, but actully I want to the horizontal ref plane to be defined as wall face. how to change it, also I  need to know how to difine exterior and interior for the ref plane. plus this sweeps was modified from a alreay made sweep by me, so the fucntion of ref planes has already been set.

 thanks!

Attached Images

-----------------------------------

沧海月明珠有泪

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

This does not look like a wall or face based family and as such, the reference plane name doesn't mean anything.  Just turn off "always vertical" in the family's settings and rotate it in the project.

If I am wrong and this is a face based or wall based object, then you will have to modify it in the family.

This user is offline

fairywiner

active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating

sorry, I didn't find the    Just turn off "always vertical" in the family's settings  as you said

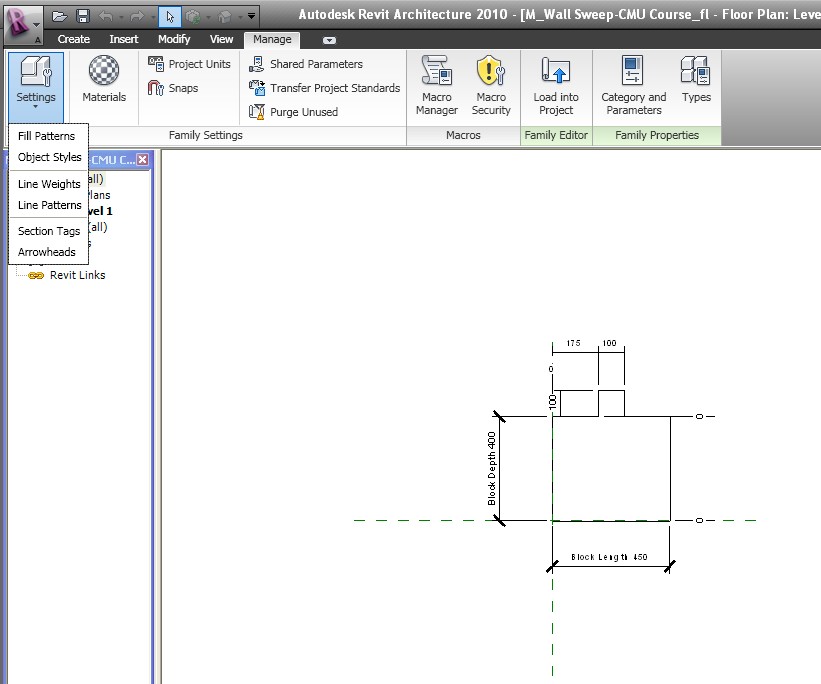

also I have attached my frofile family.

Edited on: Sun, Apr 17, 2011 at 9:38:12 PM

Attached Images

-----------------------------------

沧海月明珠有泪

This user is offline

fairywiner

active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating

-----------------------------------

沧海月明珠有泪

This user is offline

nastyclown

active

Joined: Mon, Jul 13, 2009
273 Posts

Its simple as ... rotating the profile 90 º, reasign dimensions and reload.
