Forums >> Revit Building >> Technical Support >> window jamb wrapping

rmh1981

active

Joined: Wed, Jan 26, 2011
9 Posts

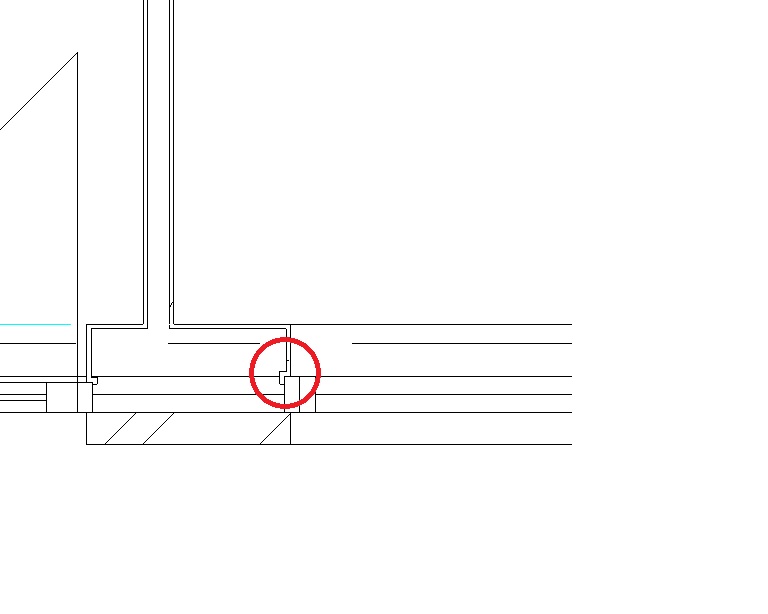

has anyone a solution to annoying problem of the plasterboard wrapping around the window frame at the jamb. (see attached image & file)

any fix would be much appreciated.

thanks in advance

Attached Images

Attached Files 90784_SLC_Window.rfa

This user is offline

cbieser

active

Joined: Wed, Jan 3, 2007
75 Posts

I think since your void openings in the window family aren't aligned with the outer edge of your frame the wall components are trying to wrap around the frame.
