Forums >> Revit Building >> Technical Support >> how to make an irregular slope surface

fairywiner

active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating

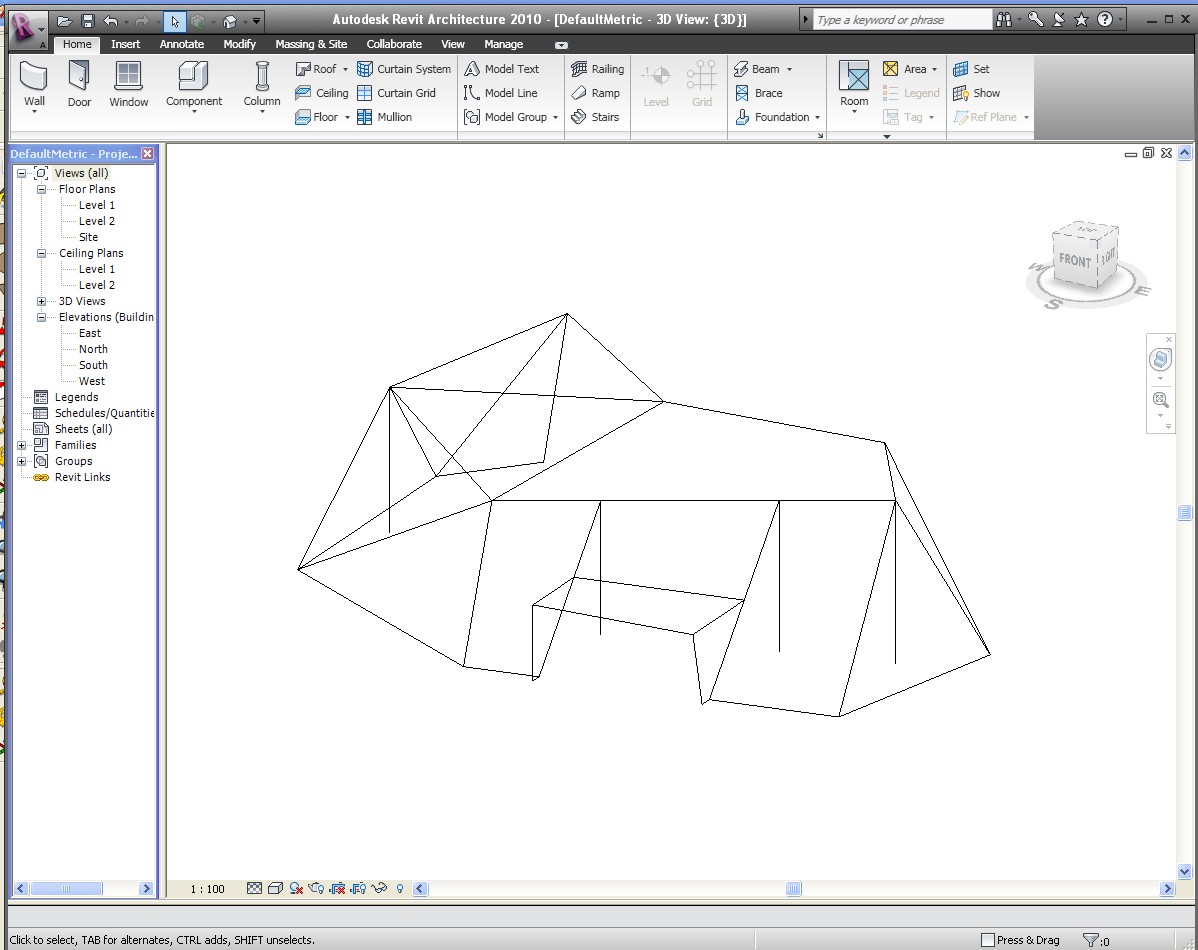

I want to make an irregular slope surfac, just like  my picture 1, that glass house is an irregular shape, I just load the frame in to revit, but I don't konw how to make it, because I don't konw how to draw a surface in a 3 dimentional space.  Maybe my question is a little primary.

Attached Images

-----------------------------------

沧海月明珠有泪

This user is offline

fairywiner

active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating

-----------------------------------

沧海月明珠有泪

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

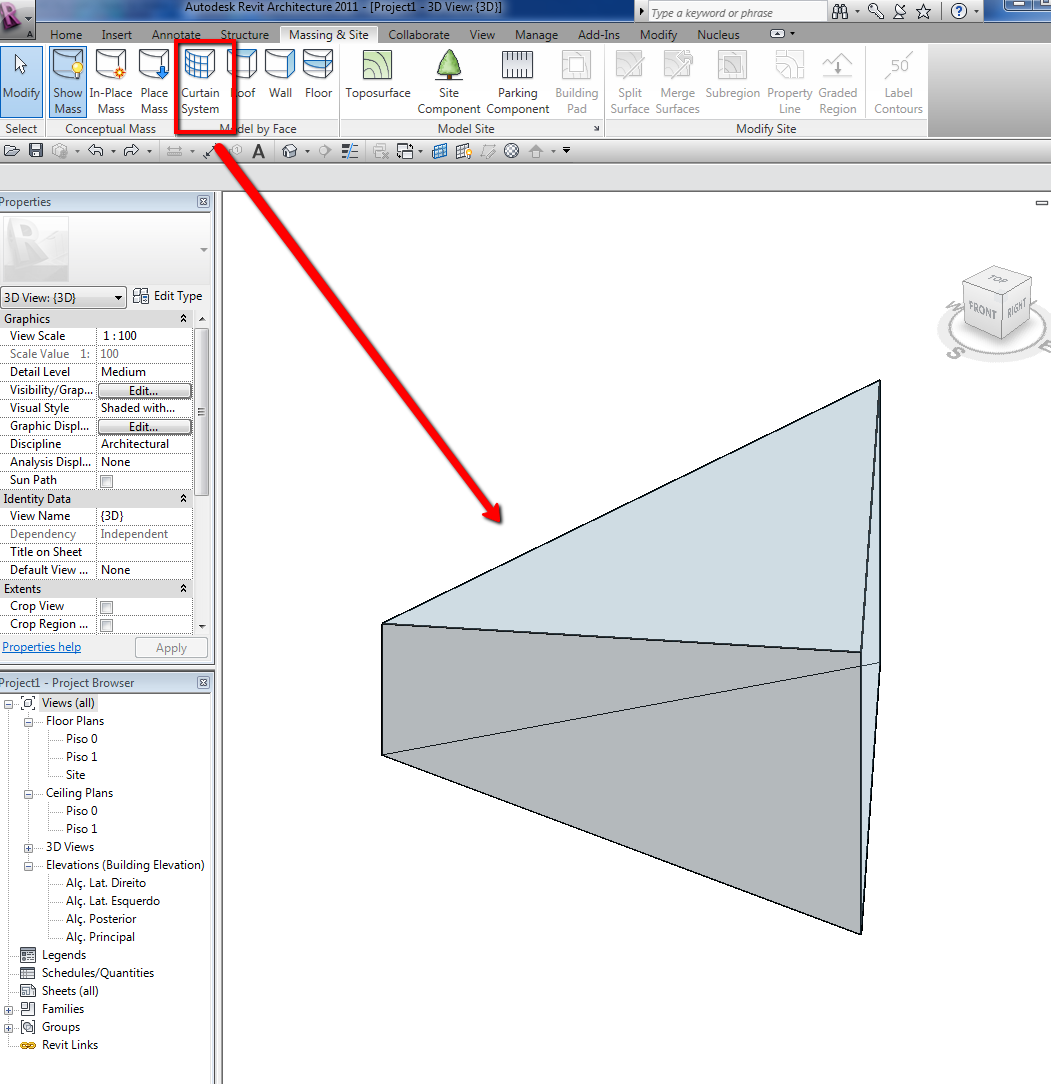

That file is a "Template" file and not a "project" file, also, convert that to ACIS solid then try to apply "Curtain System by face"

Attached Images

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

fairywiner

active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating

sorry, I don't know how to draw that shape in revit, it is an 3 dimentional shape, because not one face is vertical or horizontal.  I cant find a work plane to draw it on, also if I want to add beam along the frame, I don't know how to grasp a point that does not on a work plane, but  in 3 dimentioal space.

Attached Images

-----------------------------------

沧海月明珠有泪

This user is offline
