Forums >> Revit Building >> Technical Support >> Create a hose or tubing
|
|
|
active
Joined: Wed, Sep 17, 2008
5 Posts
No Rating |
I have a condition where I need to show 1/4" O.D.) tubing going from the back of a gas turret on a cart up to a panel in the ceiling. I can make a tube as a sweep (I used a spline for my path), but I cannot create it 'out-of-plane'. The cart is not directly underneath the panel so I cannot just link it to a vertical reference plane. Does anyone have any ideas/work-arounds/suggestions? Thanks!
|
This user is offline |
|
 | |
|
|
active
Joined: Sun, Jun 24, 2007
592 Posts
 |
multiple pieces in multiple planes.
-----------------------------------
I like scooters. and motorcycles. |
This user is offline |
|
|
|
active
Joined: Thu, May 28, 2009
829 Posts
 |

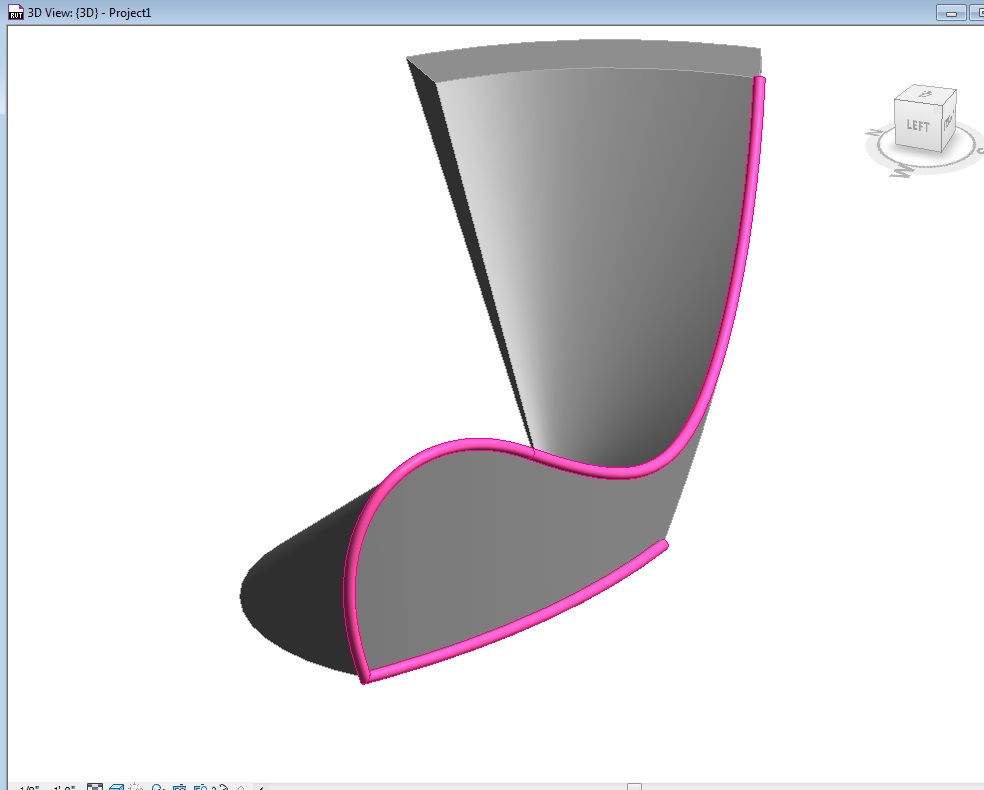

Use the pick line tool for the sweep's path. Model your complex path with a sweep or blend, with a void cut in the other direction, and use the cut lines of that geometry as the path for your pipe. You might get an error that you cannot create the sweep if your profile is not created on a straight length of path. Attached is example. I started the sweep at the bottom.
|
This user is offline |
|
|
|
active
Joined: Thu, May 28, 2009
829 Posts
|
err, that'd be "pick 3D edge", not pick line. Semantics.
|
This user is offline |
|
|
|
