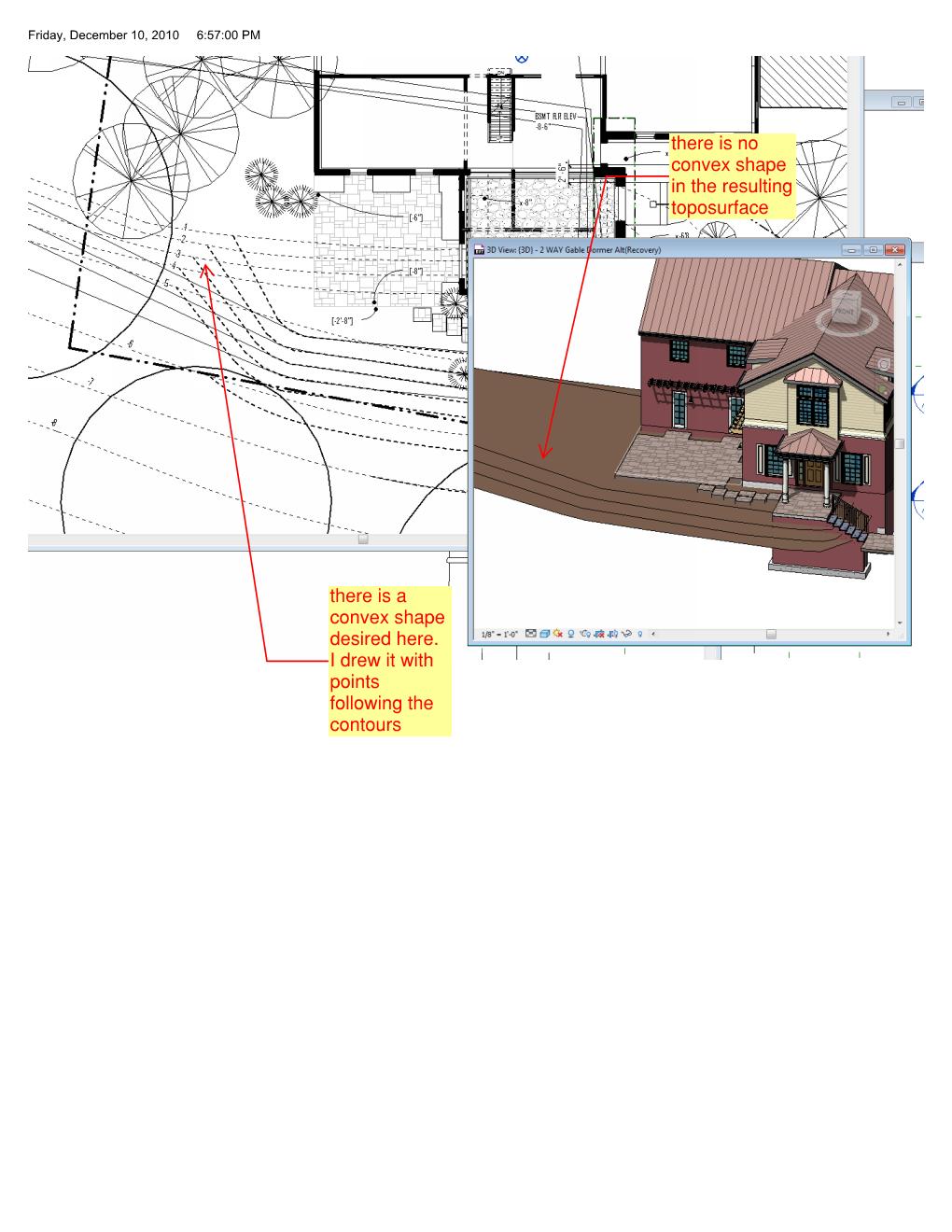

why won't toposurfaces draw any concave shapes? see attached jpg
|
This user is offline |
View Website
|
![](images/spacer.gif) |
|
active
Joined: Sun, Jun 24, 2007
592 Posts
![3.5 Stars: 7 Votes](/images/stars_3.5.gif) |
i feel like you've got a view depth thing going on.
----------------------------------- I like scooters. and motorcycles. |
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Sat, Oct 25, 2003
411 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |

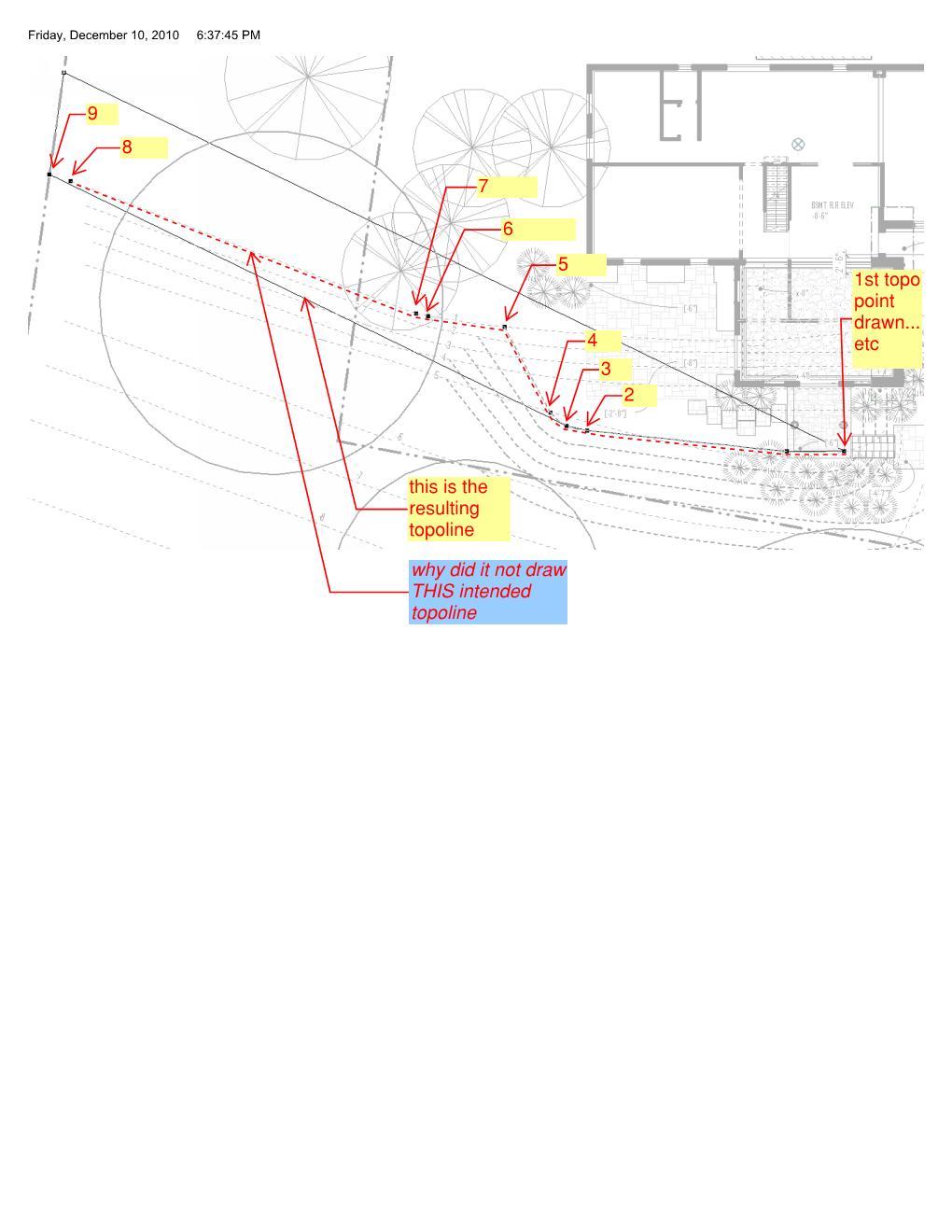

no, the elevation is set right, it does it on the 1st line drawn. it just works like a rubberband and ignores the points that would form any convex curve. or maybe i dont know what you mean by a "depth thing"
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Sun, Jun 24, 2007
592 Posts
![3.5 Stars: 7 Votes](/images/stars_3.5.gif) |
not knowing where the extents of the topo are and where all the points on it are, it seems like perhaps your view depth is set to something not showing what you want. Otherwise a screen shot of the sketch mode might be helpful.
----------------------------------- I like scooters. and motorcycles. |
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Sat, Oct 25, 2003
411 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |
the depth top and bottom are both correct to fully show the topo line elevation i am drawing. it behaves like a rubberband and wont follow the points drawn. See attached.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Sun, Jun 24, 2007
592 Posts
![3.5 Stars: 7 Votes](/images/stars_3.5.gif) |

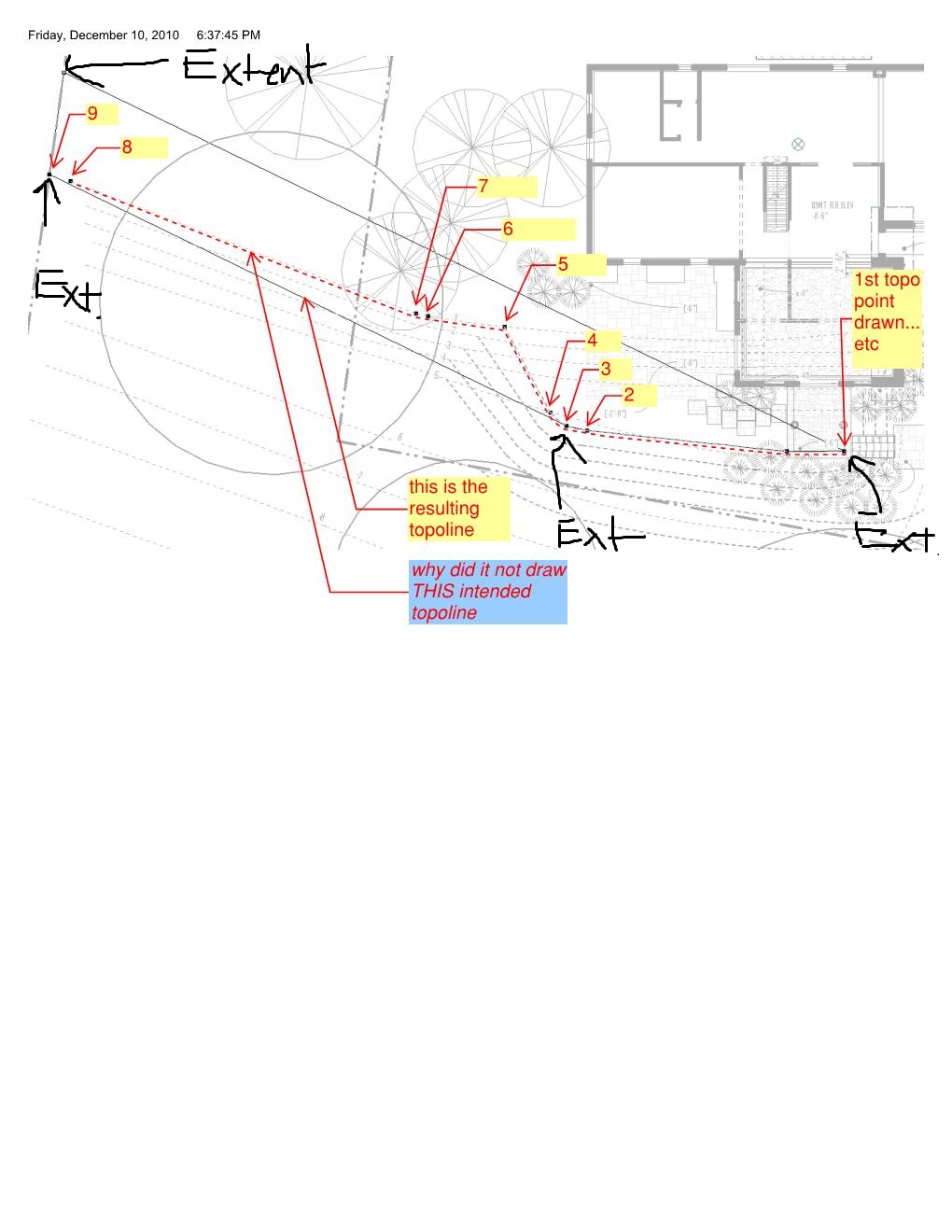

the topo tool creates a surface which is not a line. the points you've drawn are esentially the extents of the surface and what revit is essentially doing is trying to interpolate the points into a surface. the four points i've highlighted are the extents. the other points are simply defining heights on the surface.
----------------------------------- I like scooters. and motorcycles. |
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Sat, Oct 25, 2003
411 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |

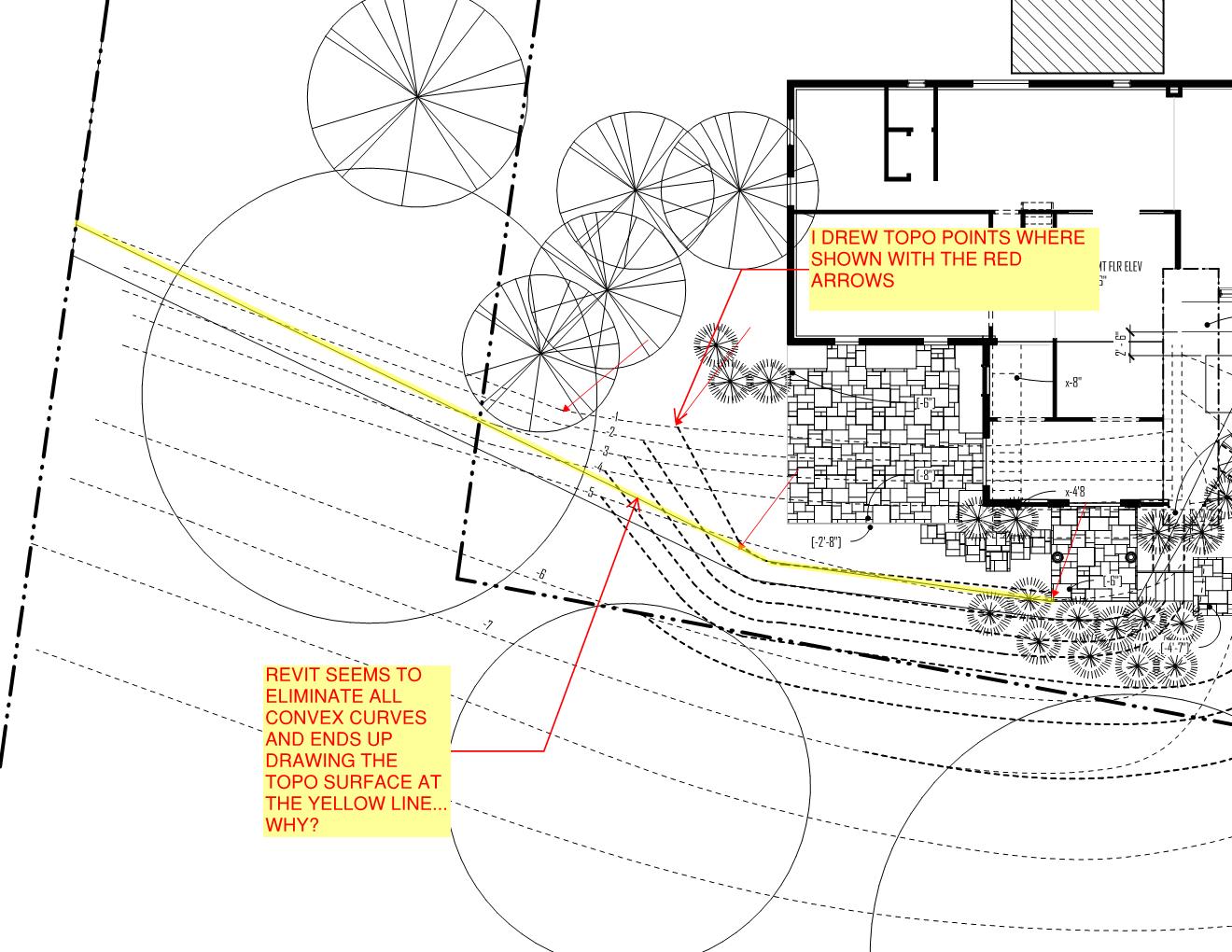

right, but i cant make it work. watch this video.. this guy makes it work quite logically http://www.youtube.com/user/TheRevitKid#p/u/5/wZA7Zsz8zFg you can jump to about 4 minute mark. Mine comes out all wrong, as i said, not convex shapes, i redid it to illustrate... see attached
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
![itsmyalterego Avatar](user_avatar/109615.jpg)
Joined: Thu, May 28, 2009
829 Posts
![4 Stars: 16 Votes](/images/stars_4.gif) |
Use split surface after the fact to give your topo a unique shape or cut voids in it. But when you first start a topo, it can't be concave, yeah. My first four points are always just a square beyond the extents of the project. So add all your interior points, and then trim.
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Revit works just fine with concave surfaces, you just need to better describe what you have. Revit's topography is not controlled by topo lines. Topo lines are just a user's interprtation of the topography. The topography is controlled by points. The more points, the more you contol what is modeled. Don't expect Revit to work from just three points.
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |
WW is right, just increase the number of points in your model
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
![](images/spacer.gif) |
|
active
Joined: Sat, Oct 25, 2003
411 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |

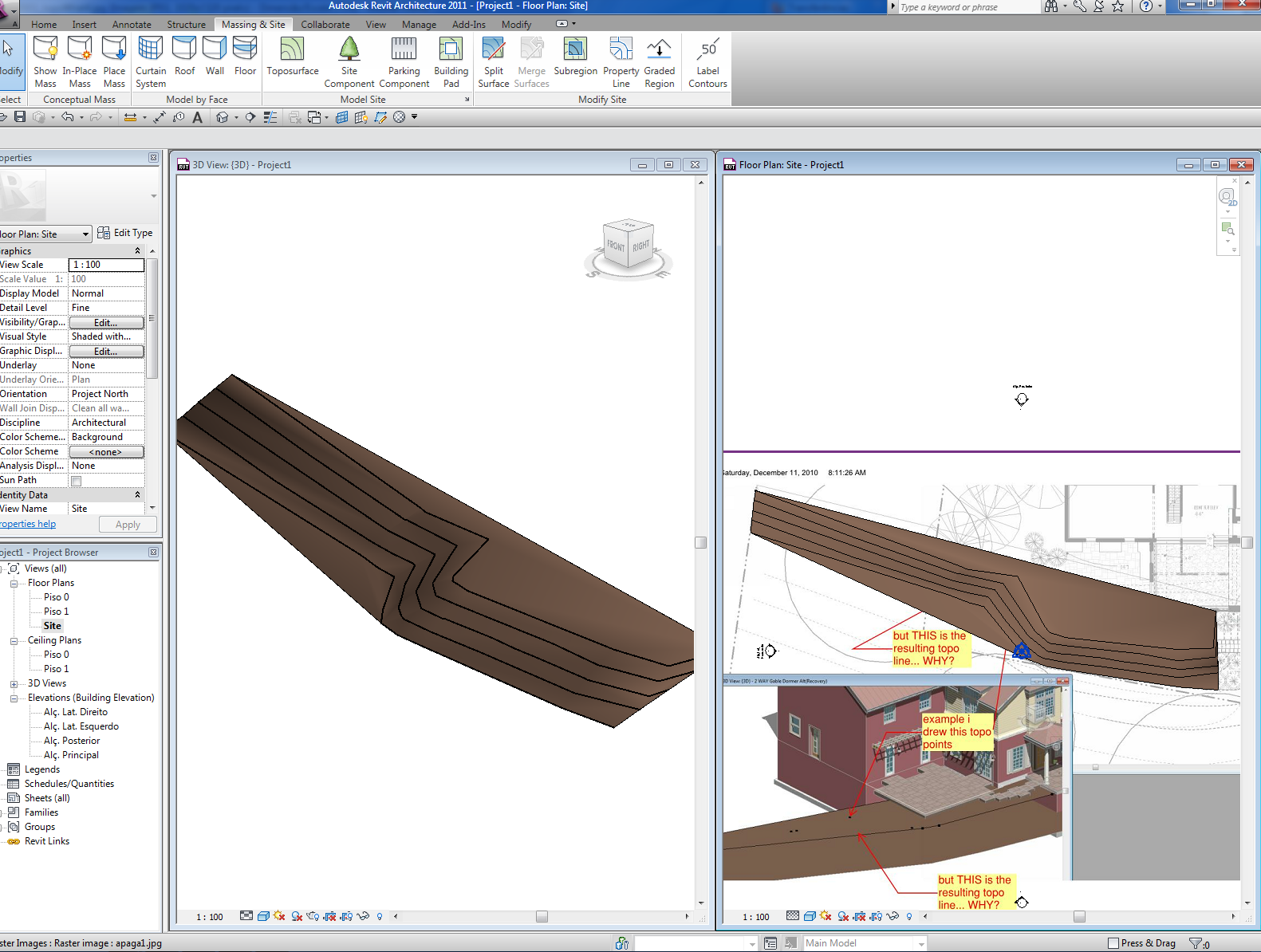

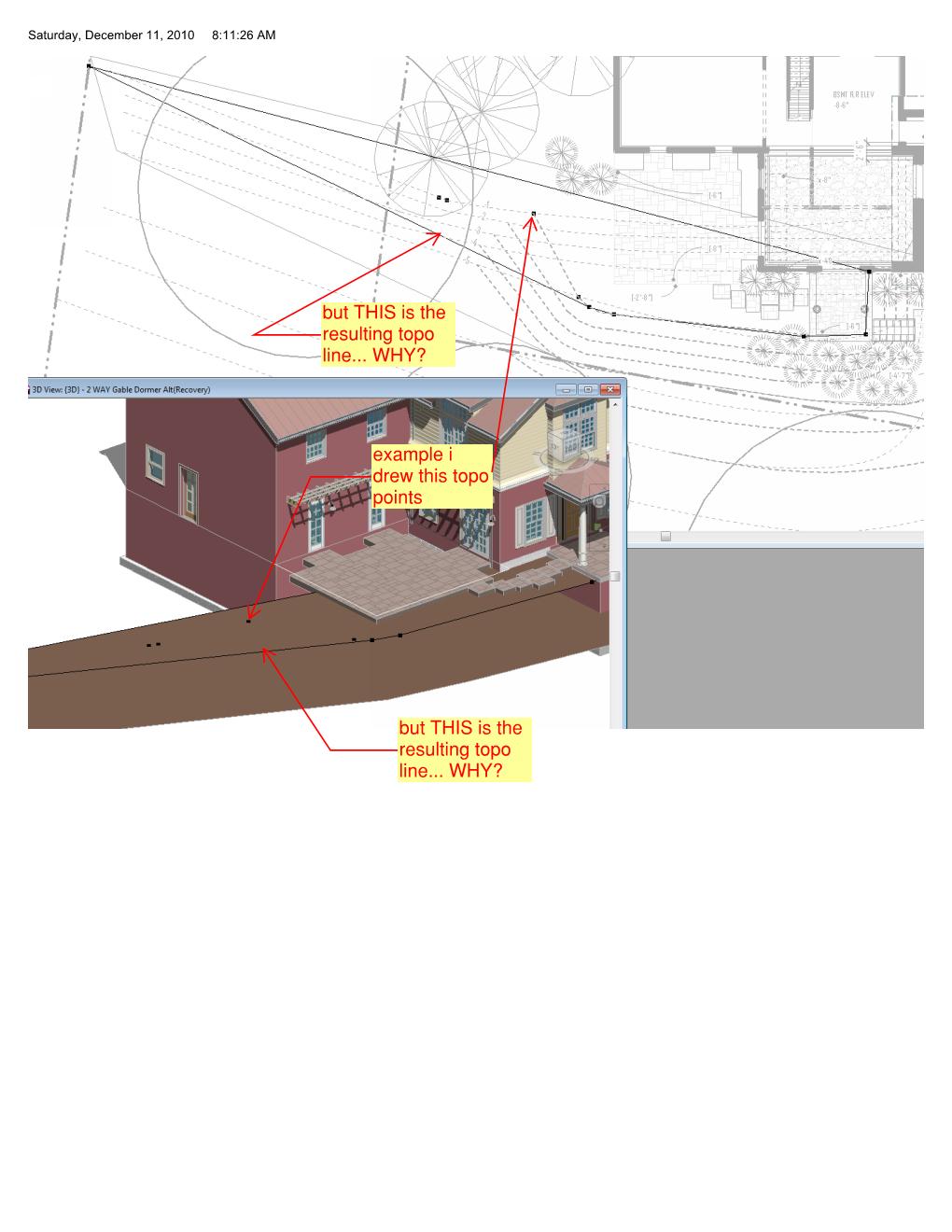

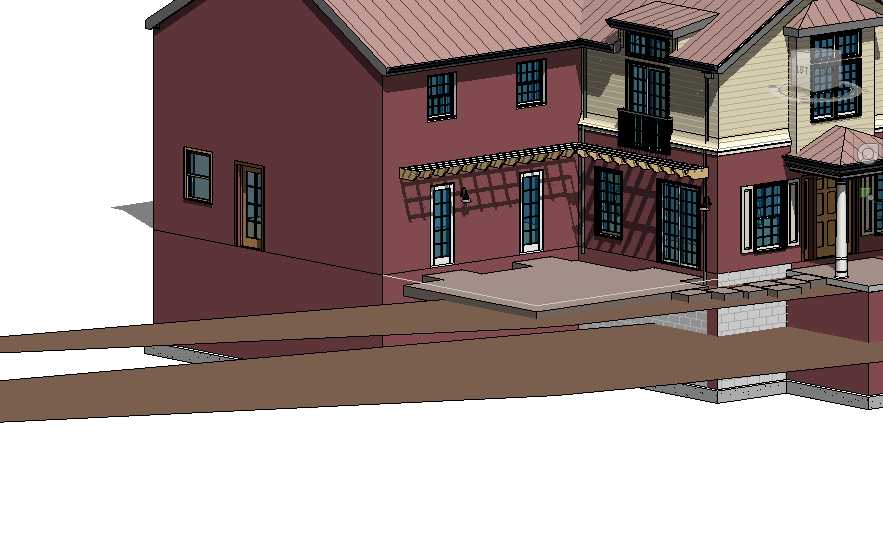

I think i have plenty of points to describe the convex shape. I also notice that the topo surfaces don't triangulate between elvations, they are just drawn as planes. is there a revit setting?... see pix attached. Really frustrating. I draw the points and whenever they are concave, they are ignored when drawing the topography.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Sat, Oct 25, 2003
411 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |
i notice in visibility settings for topo there are "boundary points" and "interior points" (both are set to "visible", both are grayed out and cannot be overridden). its as though the interior points dont have any affect on what is drawn.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |
Just create the points
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Sat, Oct 25, 2003
411 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |

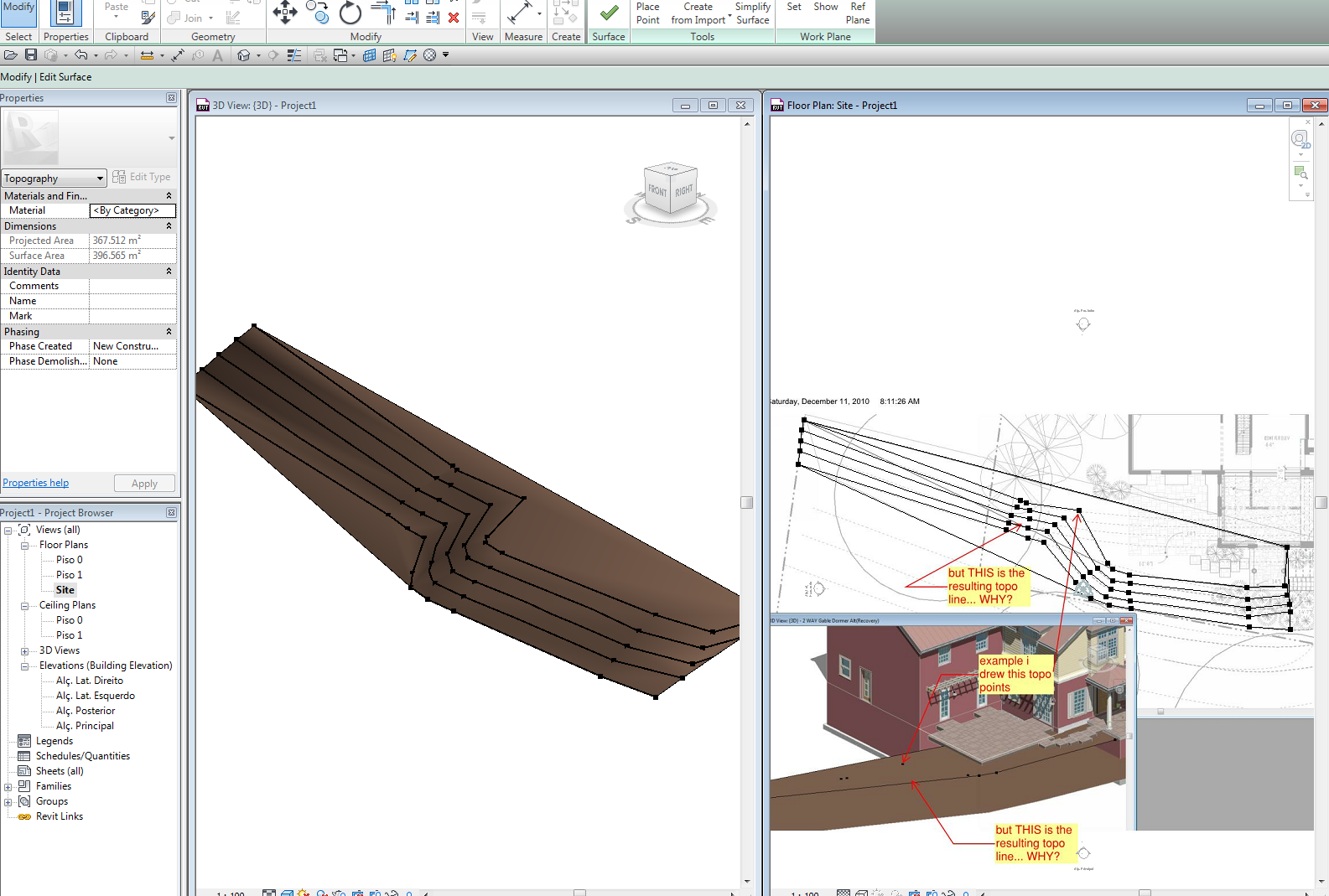

typhoon... i have created the points. the resulting surface is concave only. all interior points are ignored by Revit. - Why don't the topo line follow the points drawn
- why are the topolines drawn resulting in a 3d model of un connected planes, not a meshed together toposurface.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |

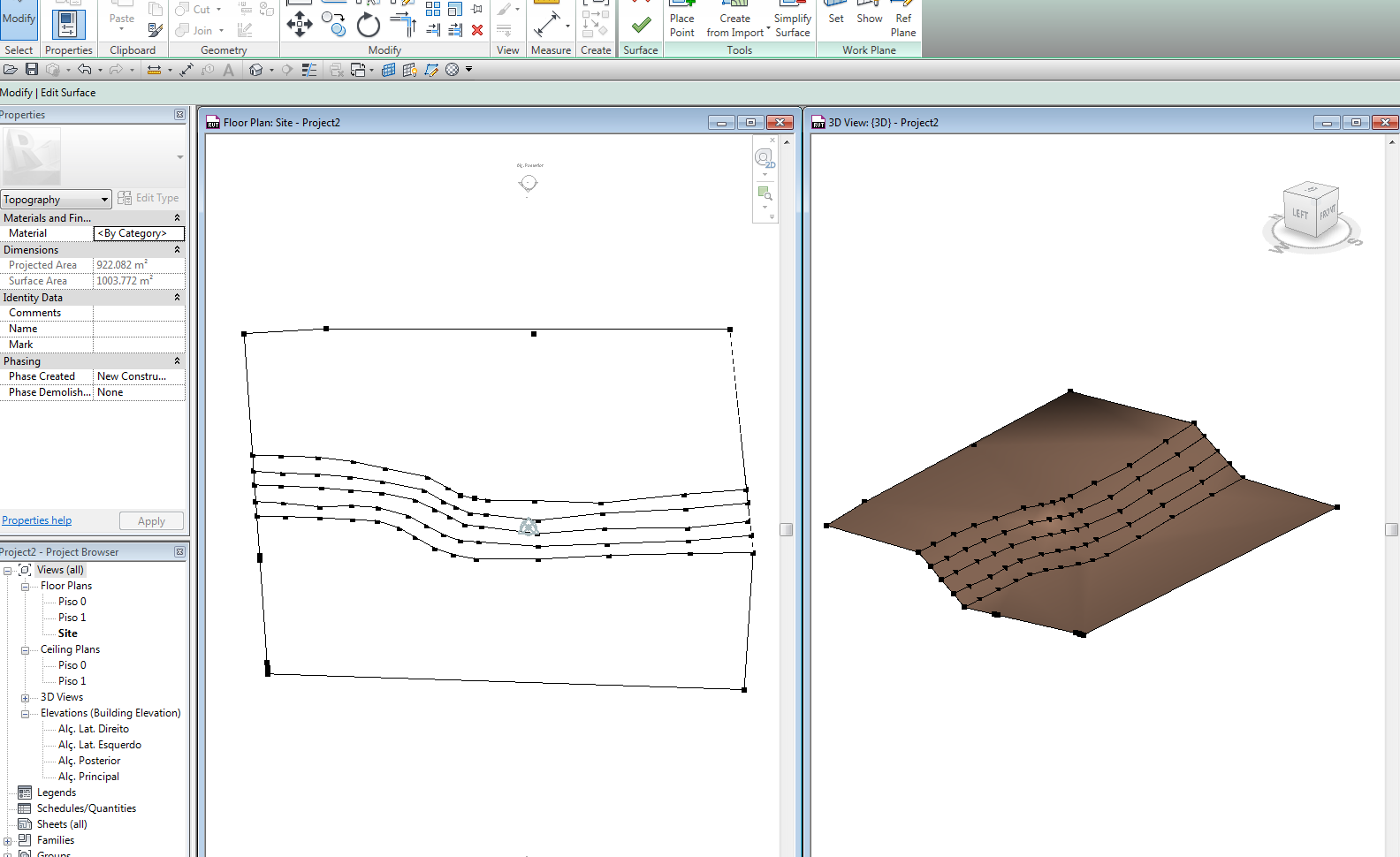

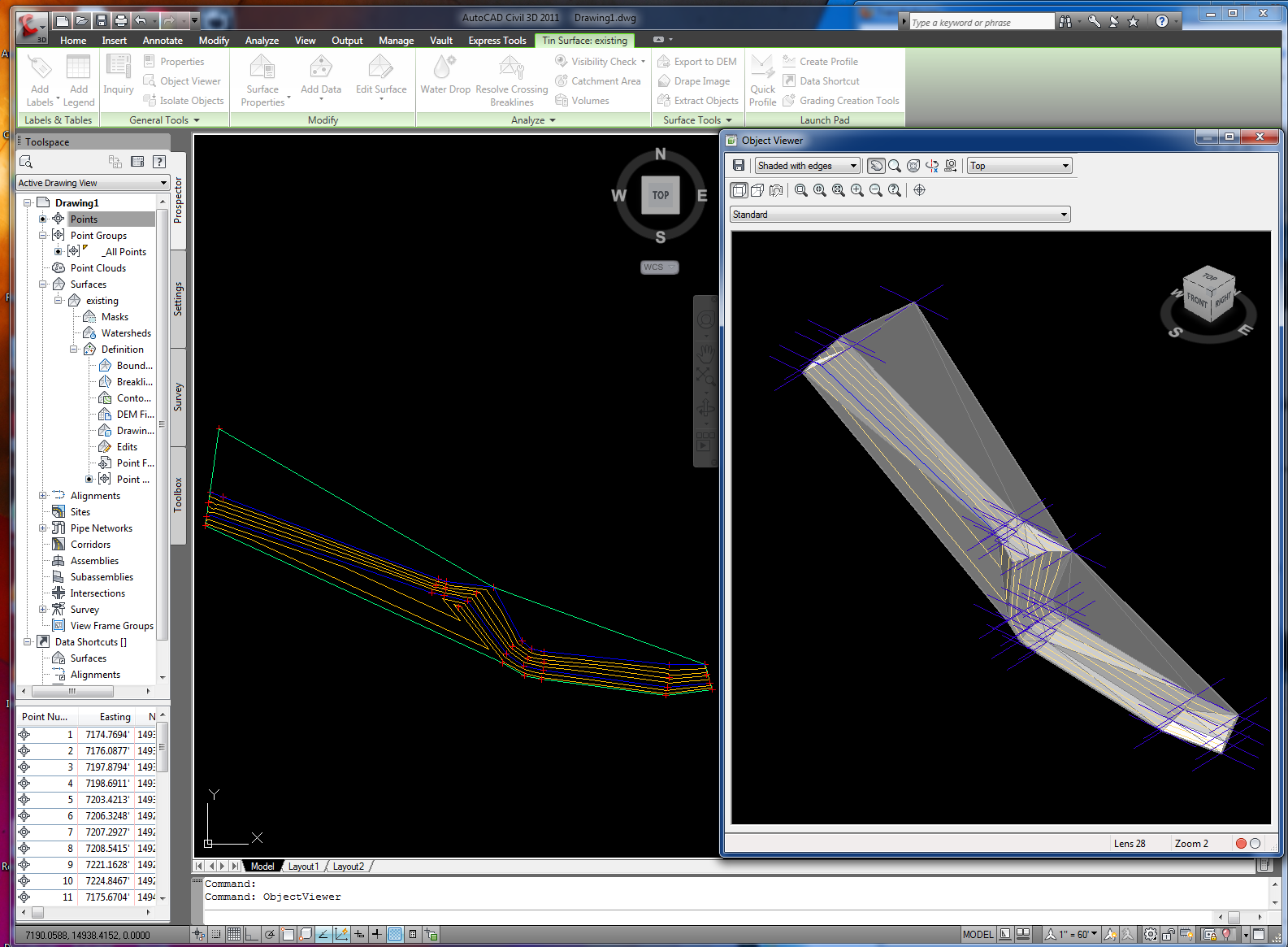

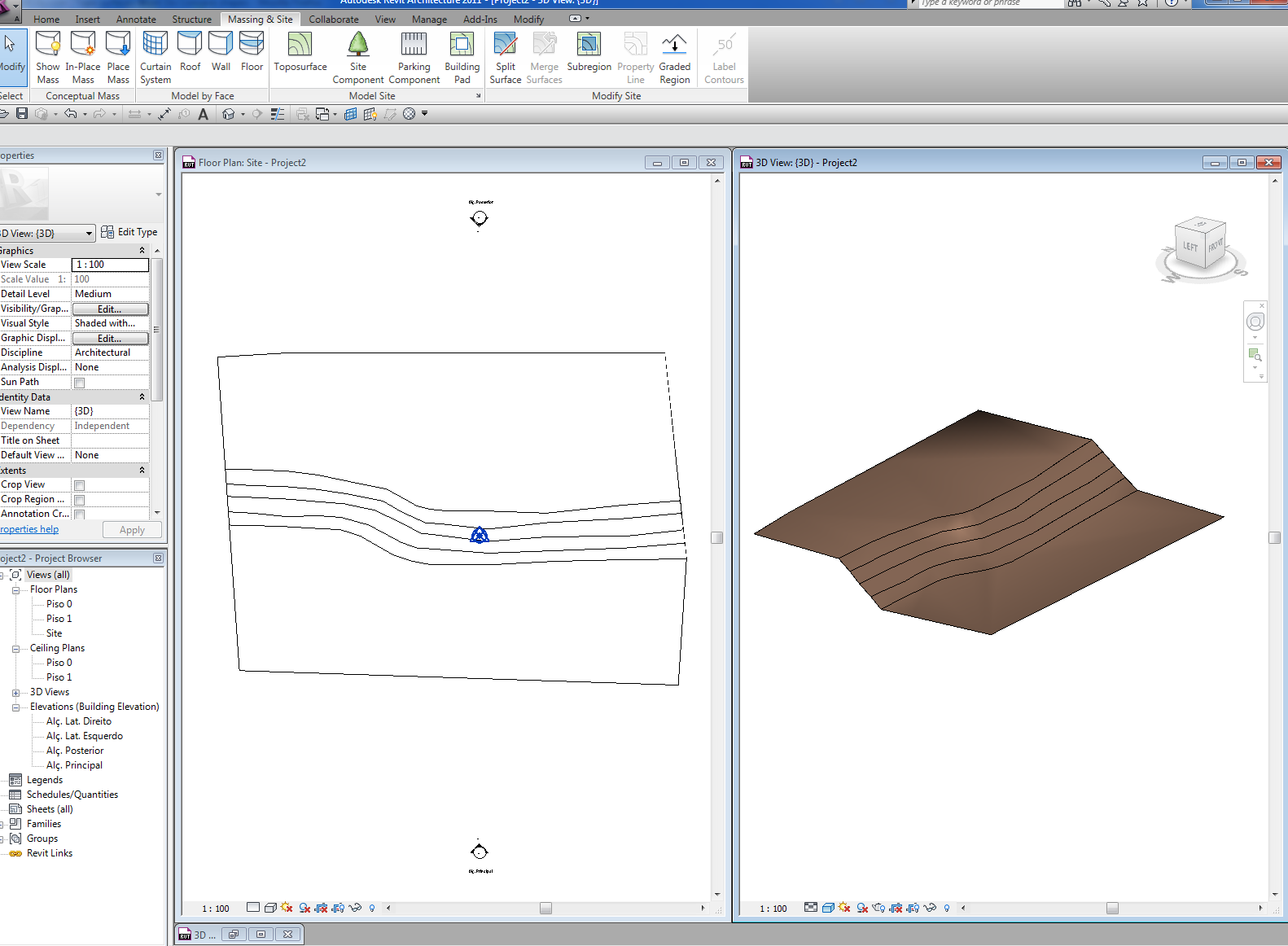

Revit is not a Civil software like Civil 3D where you can add "breaklines" and smooth your surface like you want but the answer is "Triangulation / Interpolation, look how Civil 3D create that surface only with points (no breaklines) and only with "your points" - the second image. Like you can see is more or less what you get in revit. The first image is the result of adding points along the contours lines and i didn't used breaklines. Here you have a link: http://www.cs.cornell.edu/Info/People/chew/Delaunay.html check the "Delaunay triangulation" to see how this works. Cheers
