Forums >> Revit Building >> Technical Support >> how to make beams from a mass model, and how to add a floor to it

danielacm

active

Joined: Thu, Oct 14, 2010
6 Posts
No Rating

here is attached  the start of the first floor of my project, this first floor is half suspended, that´s why it has a beam on the low part....

1-I want to know how to convert this lower and upper beams made of  conceptual mass  in "real" beams (that revit can recognize them as structural components, assingn a meterial etc..)once I've exported it to a revit project.

I really need to now if I can do this in order to decide if it worths to continue or not..

other doubt :

2-is that I need to asign a glass floor to on it, this conceptual model is nly the structural part... how can I put right on this structural floor that "epidermis" ?

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

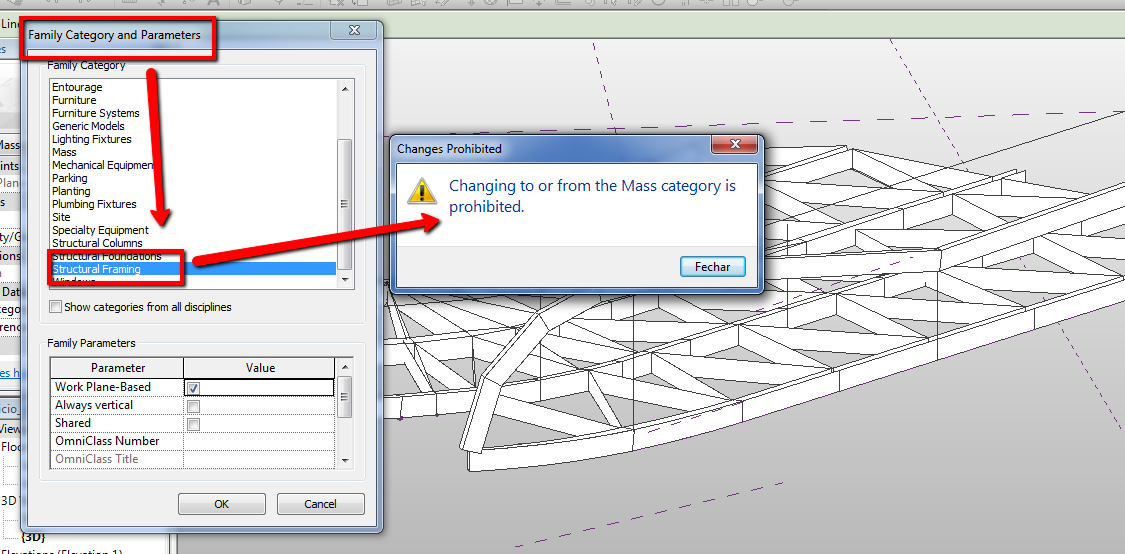

1.  You can assign "Material" to those elements BUT you can't convert that to other category, in this case structural, like you can see in my image. I don't think this is a good idea to create this kind of beams in a "Mass" family.

2.  Just create a floor with the thickness you want and change the material to Glass.

Attached Images

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

danielacm

active

Joined: Thu, Oct 14, 2010
6 Posts
No Rating

This user is offline

bparker02

active

Joined: Fri, Sep 29, 2017
0 Posts
No Rating

I know this post is really old but I've been having a really hard time as a new Revit user creating certain items. I've probably spent 3 hours trying to learn how to mass a special roof joist / rafter / beam (get these terms in for seach purposes). The problem was I could easily build the model but it would get locked to the plane I built the rafter on and I couldn't array it down the ridge of the roof. Simple fix, make it a wall!!! Viola!!

THANKS!!
