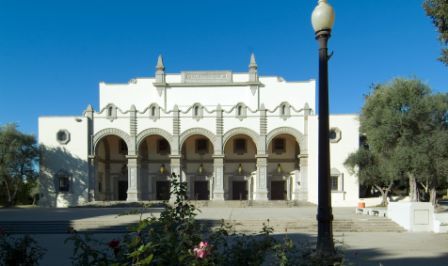

Is it possible to create a profile on a meandering sweep as displayed on this early 1900's Neo-Baroque school auditorium:
|
This user is offline |
|
 | |
|
|
active
Joined: Sun, Jun 24, 2007
592 Posts
 |
yes. what have you tried so far?
-----------------------------------
I like scooters. and motorcycles. |
This user is offline |
|
|
|
active
Joined: Thu, May 28, 2009
829 Posts
 |
You can pick a 3D edge (or a chain of them) for the path of your sweep. I have a rendering underway so I can't test this, and I'm not an expert in fancy trim--but if you can't use a wall's edited profile for your path, you can model the facade quickly in the same family as the sweep for a foolproof solution. In that situation I know you can use pick 3d edge.
|
This user is offline |
|
|
|
active
Joined: Thu, May 28, 2009
829 Posts
|

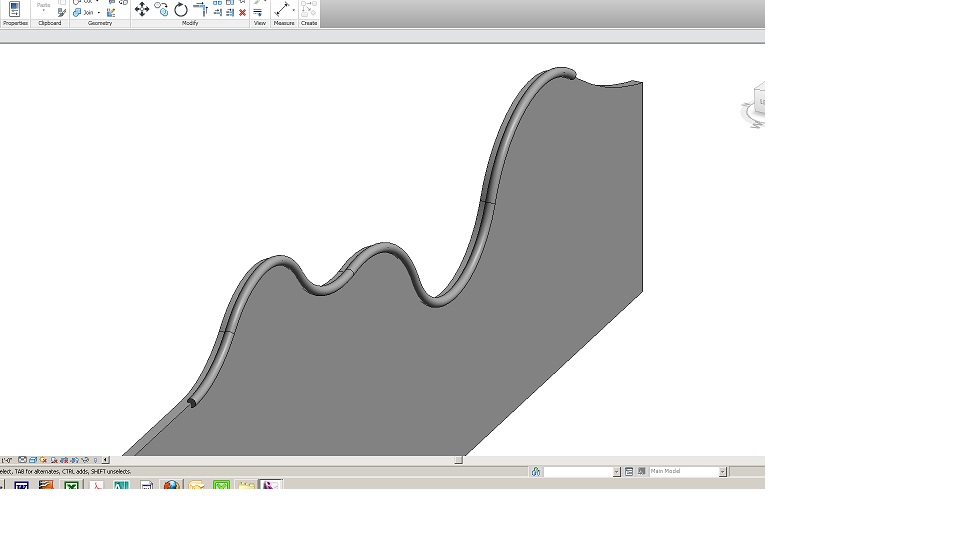

edited wall profiles *are* acceptable 3d edges. Here's an example.
|
This user is offline |
|
|
|
active
Joined: Fri, Sep 3, 2010
4 Posts
No Rating |
How are you able to make the sweep follow a 3D path?
|
This user is offline |
|
|
|
active
Joined: Fri, Sep 3, 2010
4 Posts
No Rating |
Never mind, a few hours after theat post a friend of mine figured out the way of creating a 3D path. Thanks for the help!
|
This user is offline |
|
|
|
active
Joined: Fri, Sep 17, 2010
1 Posts
No Rating |
wat is the process or steps to creating a meandering sweep?
|
This user is offline |
|
|
|
active
Joined: Thu, May 28, 2009
829 Posts
|
Here's a related thread I posted in a bit ago. http://www.revitcity.com/forums.php?action=viewthread&thread_id=22616 To recap, When you model a family in place, pick a sweep. Instead of selecting "sketch path" to start your sweep, you can use "pick path." By default, you'll now be using the "pick 3D edges" tool, so, just start picking your path along a chain of 3d edges and you're good to go. After you sketch the profile like usual.
Edited on: Thu, Jan 27, 2011 at 12:52:01 PM
|
