In a sheet how do I show both the Reflected Ceiling Plan and the Refelcted Floor Plan in the same view? In order for a Fire Suppression design and Fire Alarm Layout. We need to show both RCP and RFP on the same sheet. We are doing this in Revit MEP 2011.
|
This user is offline |
|
 | |
|
|
active
Joined: Thu, Mar 17, 2005
1231 Posts
 |

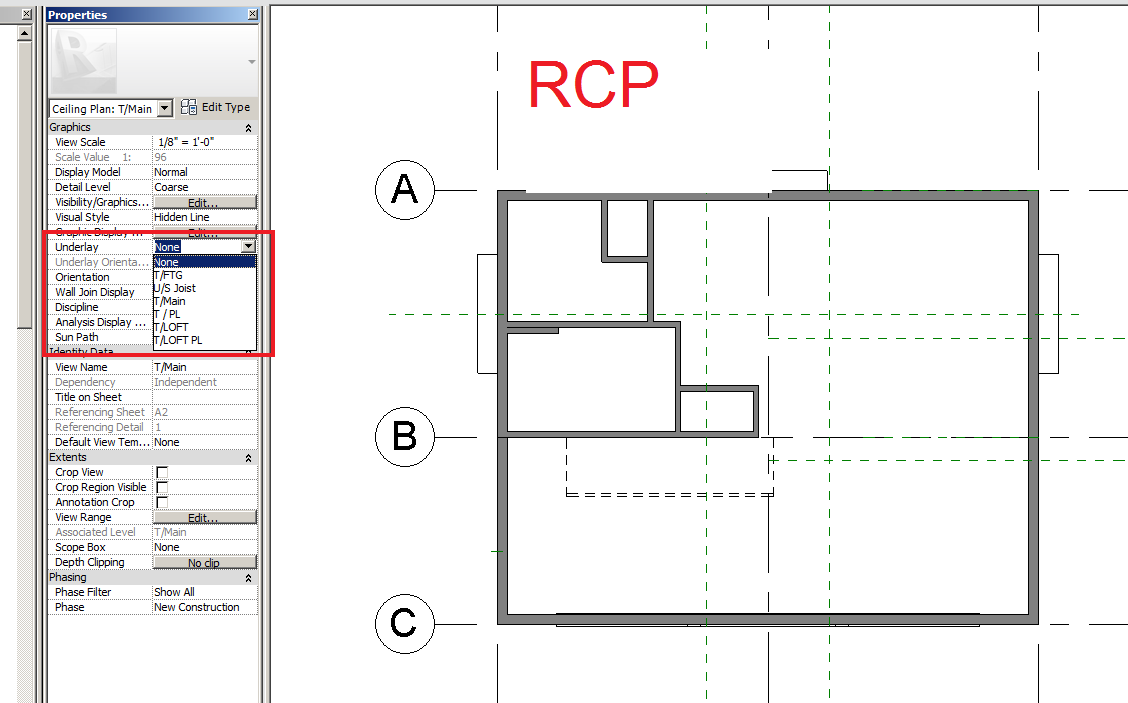

Create the RCP then 'underlay' the regular floor plan? The underlay field is a 'property' of the view.
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
|
|
active
Joined: Wed, Apr 14, 2010
22 Posts
No Rating |

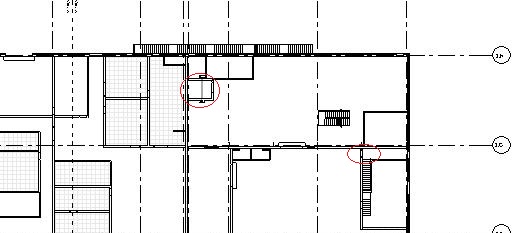

It helps but we have an issue with the view range. It does not show everything from the RFP, missing doors and Elevators. We've adjusted the view range and were able to get the stairs but still missing doors and elevators as marked in attached file.
|
This user is offline |
|
|
|
active
Joined: Thu, Mar 17, 2005
1231 Posts
|
Maybe use a 'Plan Region' in those locations. A 'plan region' allows you to created nested view ranges within the plan. Very handi for those hard to reach places.
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
|
|
active
Joined: Tue, Feb 19, 2008
71 Posts
|
DID U CHECK THE VISIBILITY GRAPHICS TO SEE IF THEY ARE TURNED ON?
|
