Forums >> Revit Structure >> Technical Support >> Blunt cuts on wide flange beams?
|
|
active
Joined: Fri, Oct 2, 2009
38 Posts No Rating |
I have some steeply sloping W18x35's at the roof and I need the ends to be vertical. How do I do it?
|
This user is offline |
|
![](images/spacer.gif) |
|
active
Joined: Fri, Nov 7, 2008
135 Posts
![5 Stars: 3 Votes](/images/stars_5.gif) |
Make it using Solid Blend, use the same profile at the top and base, and it'll angle how you offset your profiles and give you a vertical profile finish
-----------------------------------
- Just trying to help out while I wait in the office for my renders to complete www.danrossiter.co.uk |
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Fri, Oct 2, 2009
38 Posts No Rating |
Hmmm. After messing with the Solid Blend for fifteen minutes I am confused. Why is it such a pain to trim a beam at an angle?
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Fri, Oct 2, 2009
38 Posts No Rating |
UPDATE: I did it using a Void Blend. I just voided out the triangle I didn't want. I hope this works for the Architect's model!
|
This user is offline |
|
![](images/spacer.gif) |
active
![brettgoodchild Avatar](user_avatar/14257.jpg)
Joined: Sat, Feb 4, 2006
425 Posts
![4 Stars: 17 Votes](/images/stars_4.gif) |

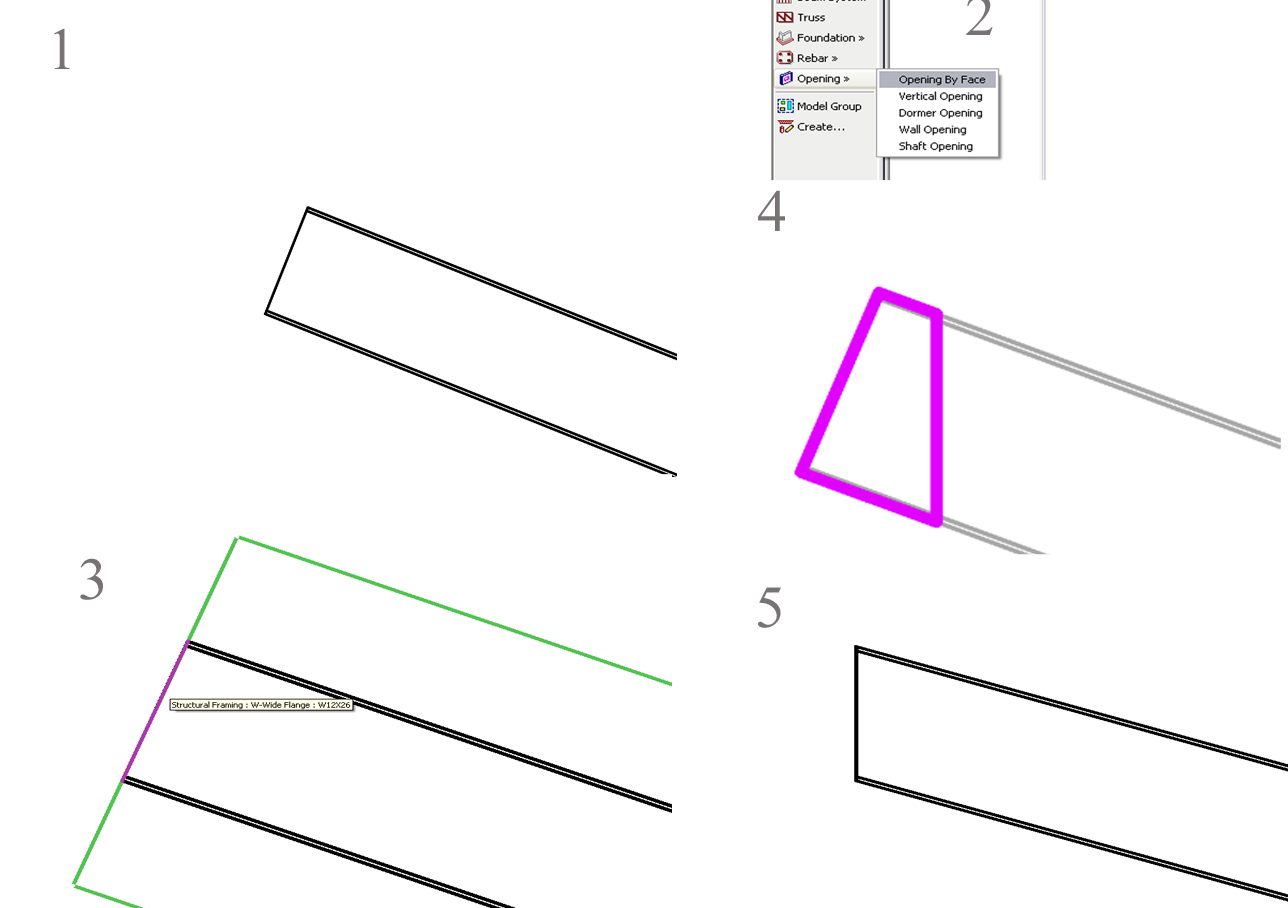

I think I would have gone with the "Opening By Face" command instead...a lot less complicated and requires less RAM allocation. See attached image.
-----------------------------------
"You cannot escape the responsibility of tomorrow by evading it today. " ~ Abraham Lincoln |
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |

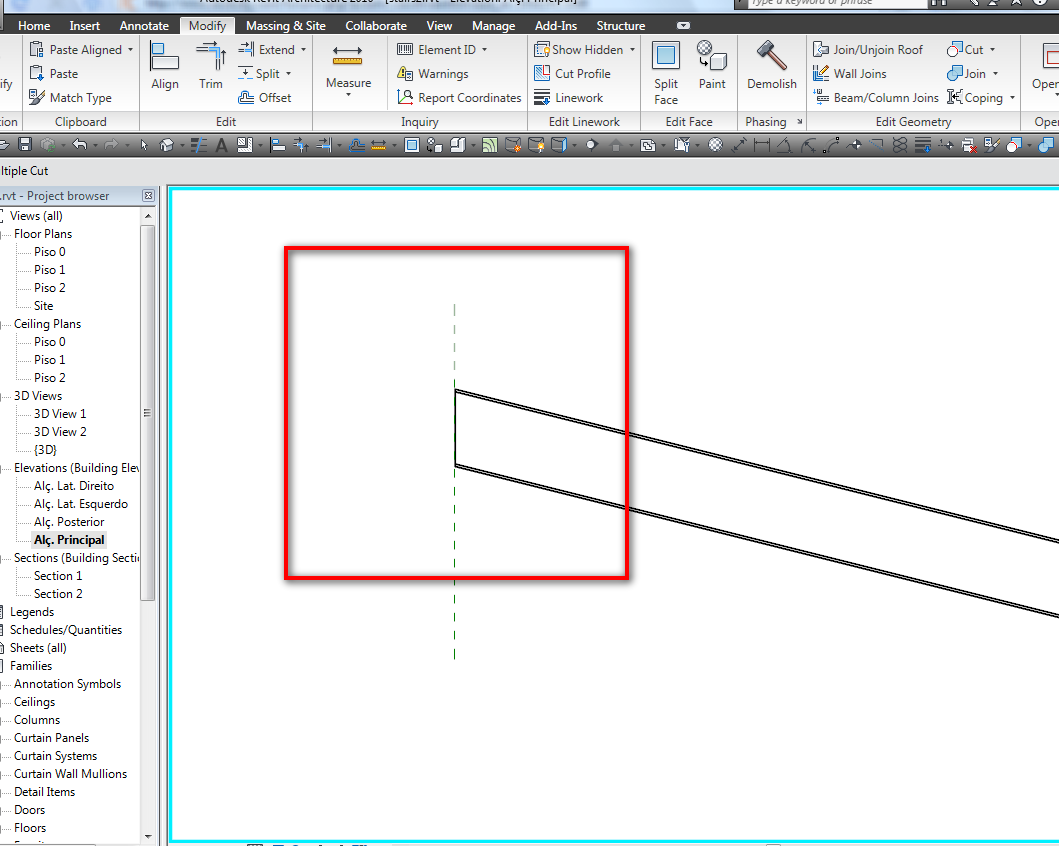

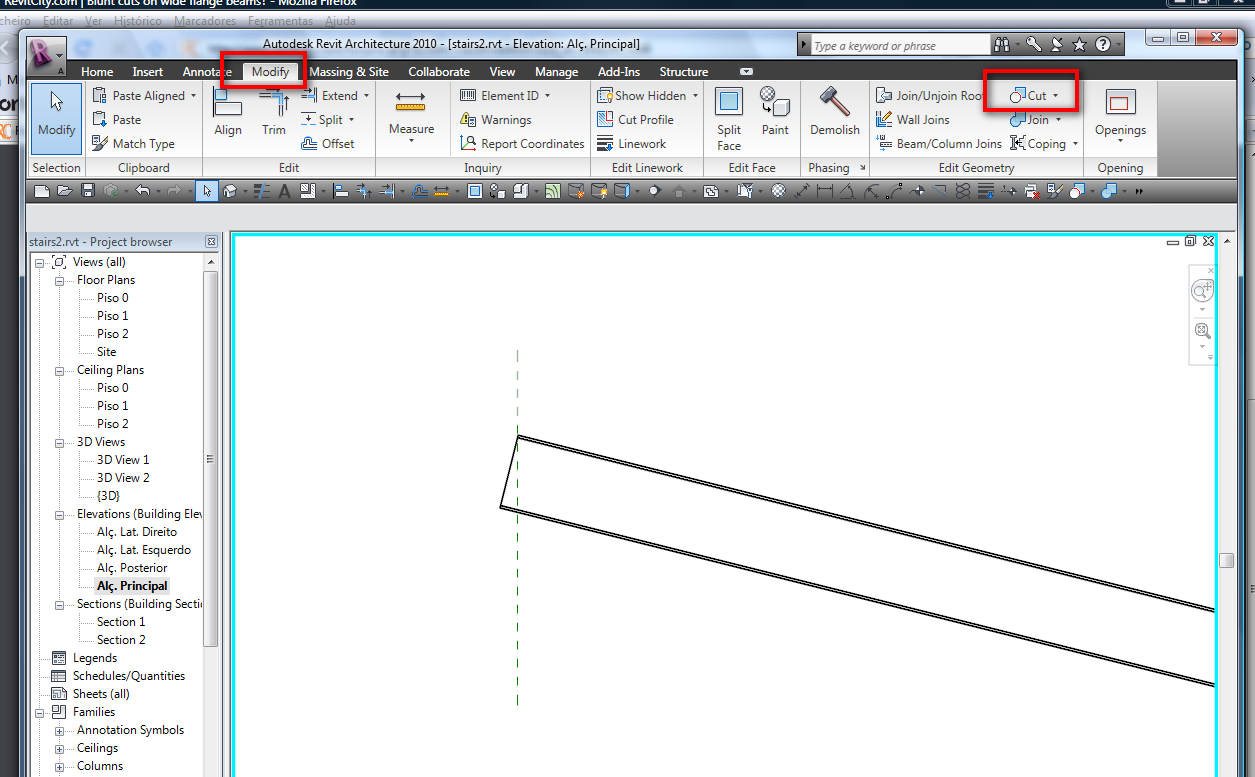

Why don't you just use the "Cut" tool with a "Ref. Plane"?
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
![](images/spacer.gif) |
active
![brettgoodchild Avatar](user_avatar/14257.jpg)
Joined: Sat, Feb 4, 2006
425 Posts
![4 Stars: 17 Votes](/images/stars_4.gif) |
That is an excellent recommendation Ty! The only reason I do not use that method is to avoid having any more workplanes in my model, named or otherwise... One large benefit to Ty's suggestion is that if the slope of the beam changes, the cut stays vertical
-----------------------------------
"You cannot escape the responsibility of tomorrow by evading it today. " ~ Abraham Lincoln |
This user is offline |
|
