Forums >> Community >> Newbies >> New to Revit - First impressions LOVING IT ... but ..
|
|
active
Joined: Thu, Feb 18, 2010
3 Posts No Rating |
Hi all The names Nathan and I'm a architectural draftsperson from Australia. I've been learning Revit for a couple of weeks now and am convinced this is software is going to make my job alot easier and more enjoyable (than AC). Saw this forum on the net and I decided to join because it seems to have a lot better content than Autodesk Seek IMO. The only thing that is frustrating me about the software is doors, specifically sliding doors and bifold (or panel) doors. I have been having trouble finding a set that can meet all my needs ie - all slide or fold 1 way - have 3 4 panels - are easily adjustable (both hieght and width) - that are simply drawn - Some of the sliding doors show so much detail like tracks and frames, its hard to make out its a sliding door in plan view). - are glass framed with wood or metal Could anyone recommend any Revit families that fit this description or would I have to learn how to make these myself? Thanks for the advice Nathan
|
This user is offline |
|
![](images/spacer.gif) |
|
active
Joined: Sat, Dec 29, 2007
286 Posts
![3.5 Stars: 11 Votes](/images/stars_3.5.gif) |
if you are planning to learn more about revit and master the program completly you should be able to make those on your own, it has more advantage then taking someone else there doors because everybody uses and needs different parameters en grafics.
-----------------------------------
"There is no path to peace,
peace is the path."
Mahatma Gandhi.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Fri, Nov 7, 2008
135 Posts
![5 Stars: 3 Votes](/images/stars_5.gif) |

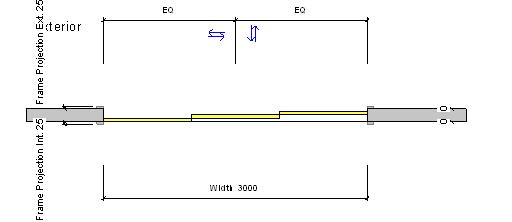

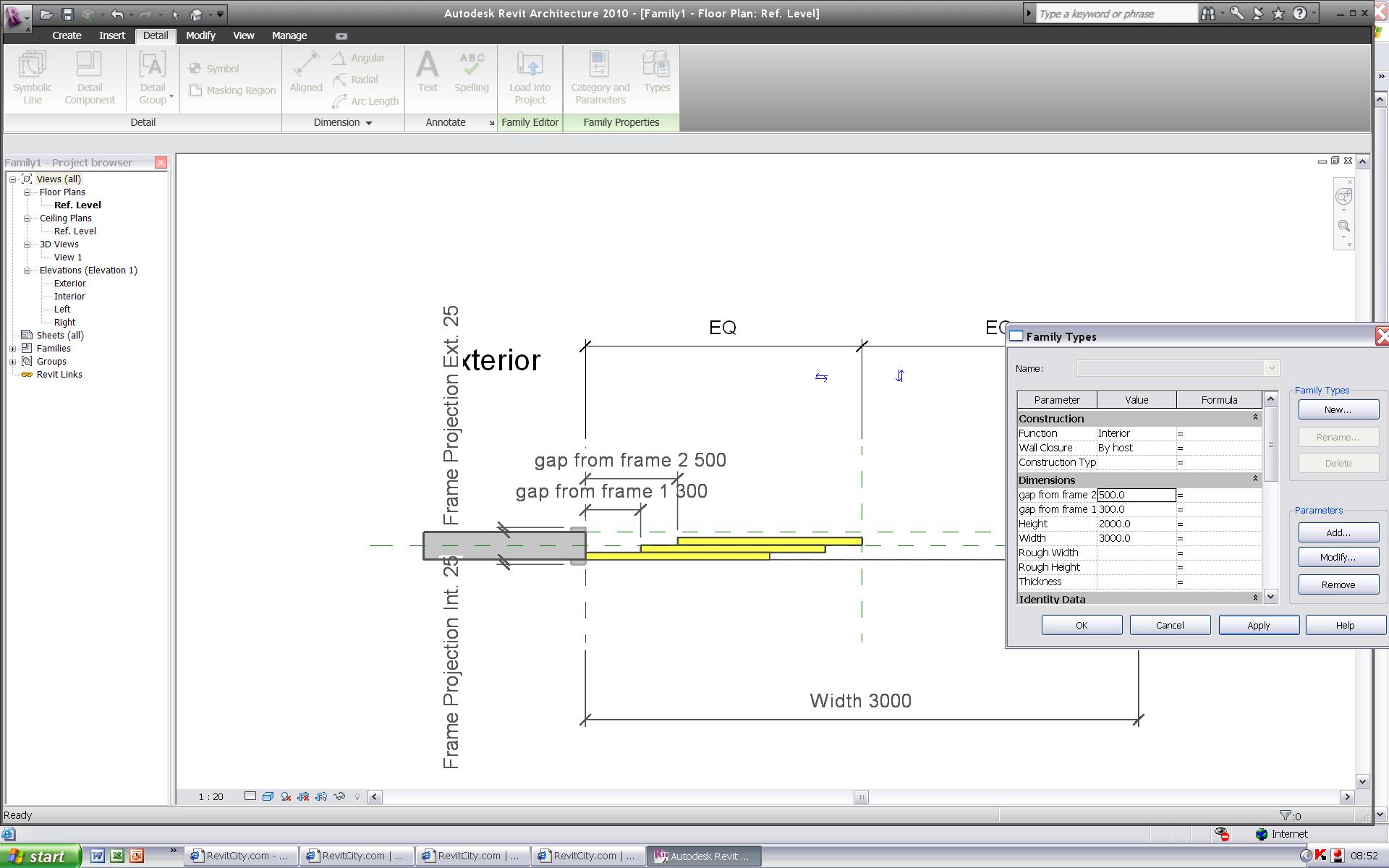

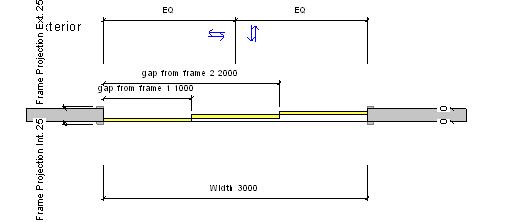

Hi Nathan, welcome to revit and revit city glad you're enjoy it with your door the great thing about revit is the fact that it''s parametric, so you can make the door you want If you choose new > family > metric dooryou can a blank template to crete yourself a door If you need help creting the rule to create your family post a link on here with your family file or images and we'll be happy to help but as a rough starter follow this: create a metric door family and make press 'types' on your ribbon and set the height and width to what you want. draw 3 door panels using solid extrusion and set them within your door frame on a slight offset of each other (as shwon in image) with them all a dimension and label as parameter and name them something like 'panel gap from frame 1' (as imaged)then you can save it and use it in your model you can make these rules as complex as you like, but this is a simple way to start you off, hope that helps
-----------------------------------
- Just trying to help out while I wait in the office for my renders to complete www.danrossiter.co.uk |
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Thu, Feb 18, 2010
3 Posts No Rating |
Hi Thanks to you guys I finally decided to push myself to learn how to do it myself and I'm so glad I did. Here is what I came up with. It is a very simple adjustable sliding door. I am just having one problem. In plan view I would like the door to be about slightly opened as shown in the attached PDF. I have taken the first couple of steps to do like hiding the 3d panel doors from the plan/rcp views and I have created some model lines in the door (cut) layer. This can be seen on the Ref view in the RFA file. The next step really is to get the size of the model lines to adjust in proportion to the width of the opening. So when the door width is increased or decreased the panels will adjust proportionally. This is something I do not know how to do. I really appreciate your help! Thanks
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Wed, Oct 7, 2009
654 Posts
![4 Stars: 7 Votes](/images/stars_4.gif) |
I see that you have the symbolic door panels dimensioned and locked. Instead of locking the dimensions, make a new parameter (Panel Width, or something like that) and in Types, make the Panel Width formula "Width / 4" (no quotes). You will also need to lock down one end of the panel or the other, but there are a few different ways to do that. You could even tie them to a parameter so you can control how far the panels are opened. One other thing I saw is that your dimension parameters are all instance parameters. Is there any reason that you are not using type instead of instance?
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Thu, Feb 18, 2010
3 Posts No Rating |
Hi TKennedy Thanks for the tip. One problem when input that formula (without the quotations of course) it gives me this error message. Instance Parameters can't be used in Type Parameter formulas. Type Parameter "Panel" is driven by Instance Parameter(s): "Rough Width". I tried both 'Width / 4' and 'Rough Width / 4'. Don't really know what went wrong there. Also with the point you made a bout making the height and width parameters instance and not type. the work I do different time to time and there is no real set door size I use. Is there any downsides to using instance instead of type?
|
