Forums >> Revit Building >> Technical Support >> Creating a Brick Jackarch Window Header
|
|
|
active
Joined: Thu, Apr 16, 2009
28 Posts
No Rating |

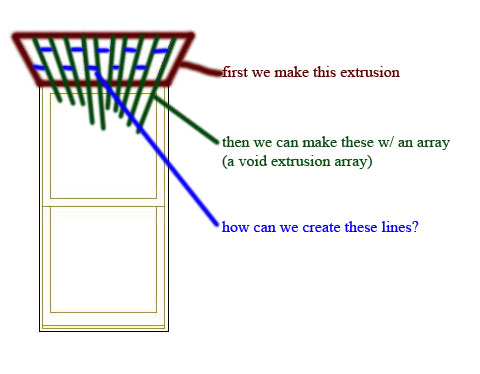

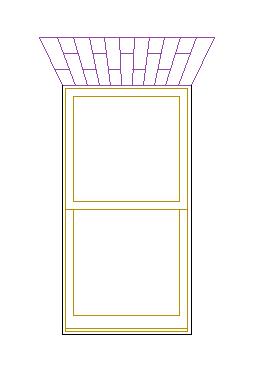

Our company is converting from another BIM software (Vertex BD) to Revit, and we're having trouble re-creating our Brick Jackarch family in Revit. (see attached pics for what we're trying to achieve) In the OLD software, we created this trim point-by-point with COORDINATES.  I've attached the code we used to create the coordinates if it helps.) Can anyone think of a way to do this in Revit? Let me know if I need to be more specific. Thanks.
|
This user is offline |
|
 | |
|
|
active
Joined: Thu, Mar 9, 2006
118 Posts
 |
Use model lines on the face of the extrusion.
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, Apr 16, 2009
28 Posts
No Rating |
Forgot to say it needs to be parametric. Varying window widths.
|
