I have a slab on grade floor with concrete o/ sand o/ vapor barrier o/ gravel.

How do I make my ftg join to theCONCRETE instead of the gravel base??  Both are set as the same material (cast in place concrete).

See the attached pdf.

Thanks

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

This user is offline

trialbyfire

active

Joined: Mon, Nov 2, 2009
22 Posts
No Rating

Thank you W.  Your layering comment solved a couple other issues I was having, but I'm still having problems with this situation.

Why is what concrete?  My slab and spread footing are cast in place concrete, the gravel and sand are "Site - Gravel "and "Site - Sand" material.

This user is offline

trialbyfire

active

Joined: Mon, Nov 2, 2009
22 Posts
No Rating

OK, here's an example of where it's still not working, even with your suggestion.

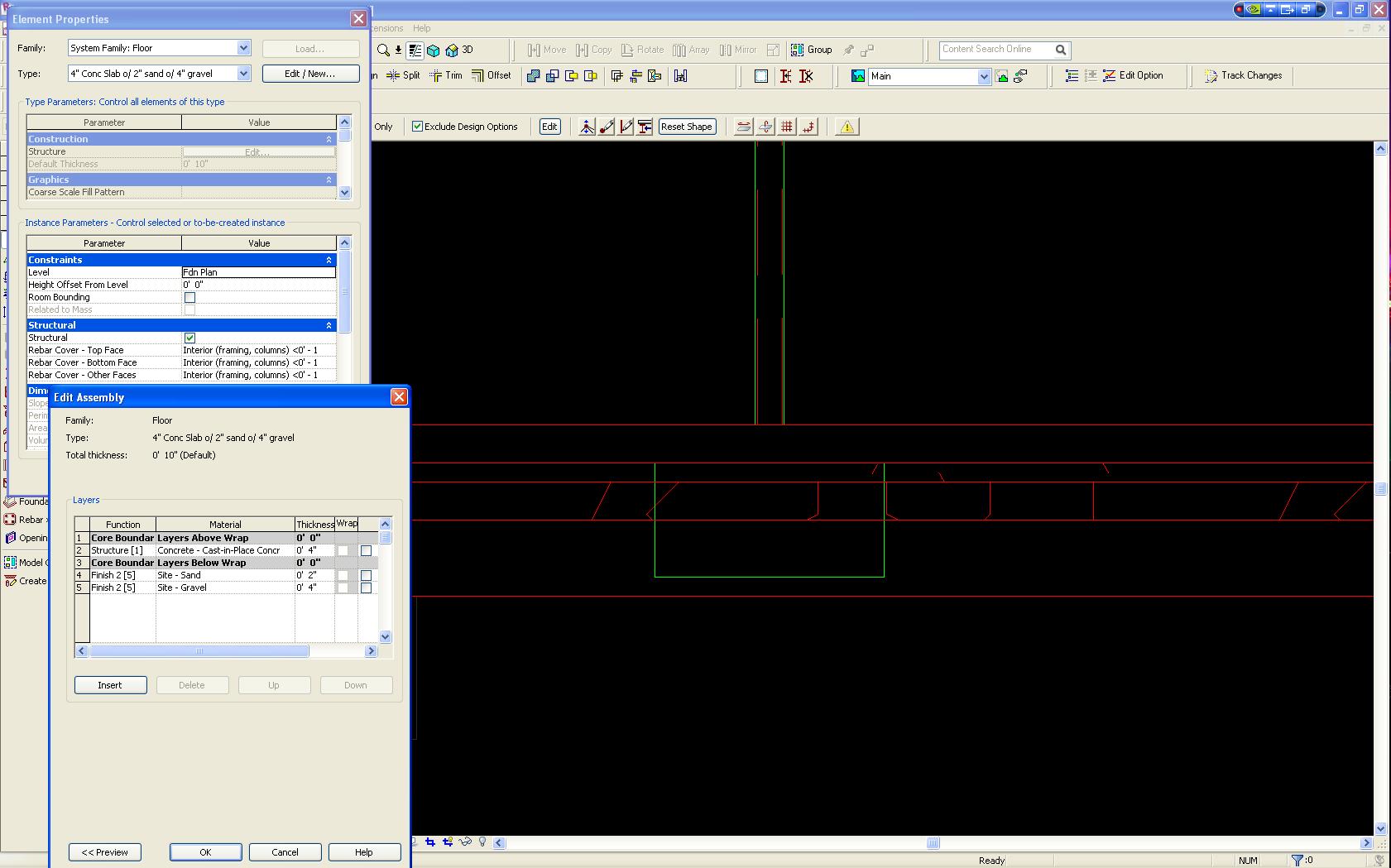

The first pic is BEFORE I've joined the footing to the slab, and the properties of the slab are shown for reference.

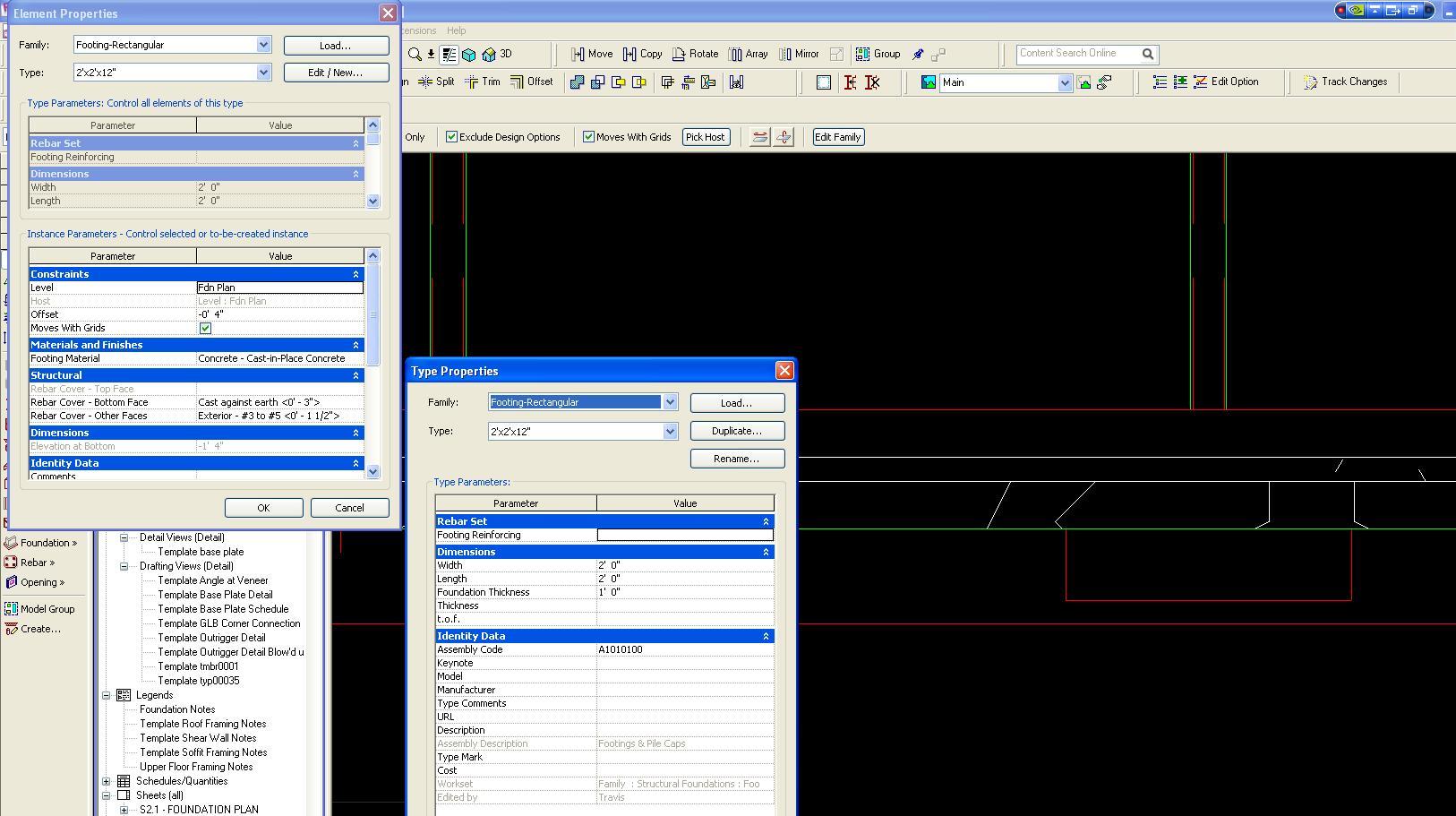

The second pic is AFTER I've joined the footing to the slab, and the properties of the ftg are shown for reference.

How come the footing is joining to the gravel and not the concrete slab?
