Forums >> Revit Building >> Technical Support >> Stacked Wall with Wall Sweep
|
|
active
![GRINHEART Avatar](user_avatar/111551.jpg)
Joined: Fri, Jun 12, 2009
157 Posts
![4 Stars: 5 Votes](/images/stars_4.gif) |

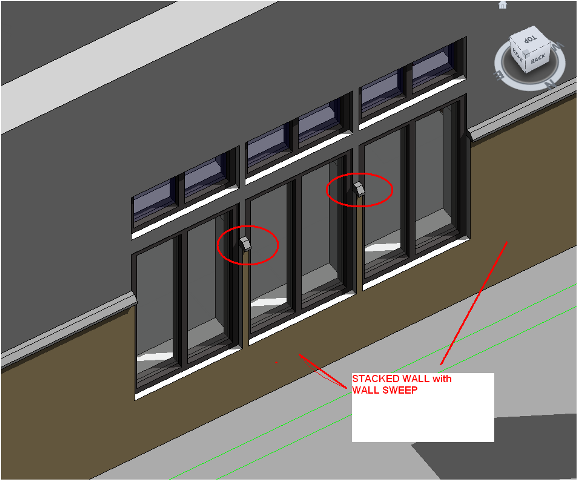

Hello, Ok... I have a stacked wall and 3 windows right next to each other with only about 2-3 inches spacing.... My problem is that i can't get rid off the cast stone sill between these windows.... because the wall sweep (cast stone sill) is part of the wall structure. See attached picture. Thanks in advance! ~Grinheart
-----------------------------------
"If you tell the truth, you don't have to remember anything" |
This user is offline |
View Website
|
![](images/spacer.gif) |
|
active
![GRINHEART Avatar](user_avatar/111551.jpg)
Joined: Fri, Jun 12, 2009
157 Posts
![4 Stars: 5 Votes](/images/stars_4.gif) |
I forgot the picture... here you go.
-----------------------------------
"If you tell the truth, you don't have to remember anything" |
This user is offline |
View Website
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Un-stack the walls, then edit the profile of each to pull down this area as far as you want and have the upper wall fill it back in.
|
This user is offline |
|
![](images/spacer.gif) |
active
![GRINHEART Avatar](user_avatar/111551.jpg)
Joined: Fri, Jun 12, 2009
157 Posts
![4 Stars: 5 Votes](/images/stars_4.gif) |
I'm not sure how you unstuck the wall... anyways this is what i did.... 1.) I selected the "stacked wall" > properties > edit/new > Edit... > then I deleted the "upper wall type" leaving only the bottom type wall.... 2.) from here on, I'm stuck! I can't seem to select the "cast stone" wall sweep. And if I select the wall and "edit profile" ...then this does not give me any option to select the "cast stone"... just the boundary of the particular wall. Let me know! I know you are the man!
-----------------------------------
"If you tell the truth, you don't have to remember anything" |
This user is offline |
View Website
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |

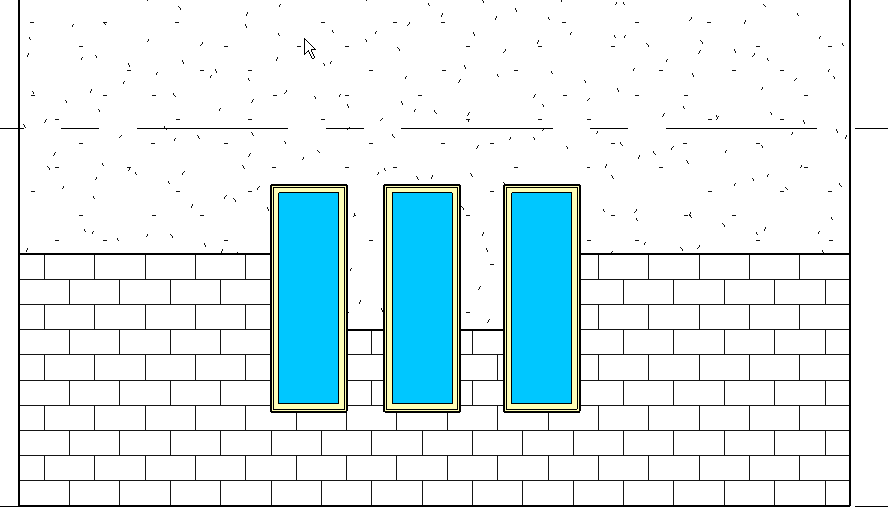

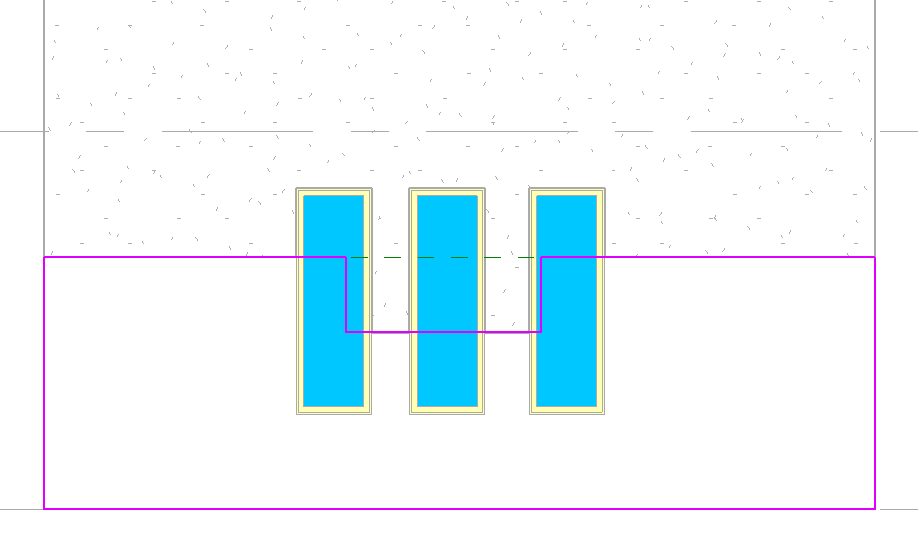

Sorry - I used my terminology - no completely revit's. To "un-stack" a stacked wall (which is what you want to do), simply right-click on the stacked wall and select break up..... Do what I suggested - keep the stacked wall initially, then break it up and edit the profile. See attached.
|
This user is offline |
|
![](images/spacer.gif) |
active
![GRINHEART Avatar](user_avatar/111551.jpg)
Joined: Fri, Jun 12, 2009
157 Posts
![4 Stars: 5 Votes](/images/stars_4.gif) |
ok WWhub.... thanks for that info. I was able to edit the profile...but i can't do anything about the wall sweep. Actually when I broke up the stacked wall - the wall sweep "cast stone" disappear and what i really want to do is to eliminate the wall sweep segment between the windows. Thanks!
-----------------------------------
"If you tell the truth, you don't have to remember anything" |
This user is offline |
View Website
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
If your sweep was part of the lower wall, it should not have gone away.
|
This user is offline |
|
![](images/spacer.gif) |
active
![GRINHEART Avatar](user_avatar/111551.jpg)
Joined: Fri, Jun 12, 2009
157 Posts
![4 Stars: 5 Votes](/images/stars_4.gif) |
Ok.... I think I know where the problem is coming from. I did some test - I placed the stacked wall (clockwise and counter clockwise) then broke the stacked wall and the wall sweep was still there. good! no problem there - that was the first test. The second test.... I basically did the same thing except I FLIPPED the wall by using the "space bar" and then I break it...then guess what happened? the wall sweep flip as well. That's why I can't see the "cast stone" because it was on the otherside. But that's what I needed to know... thank you very much! oh ya one more thing WWHub...how do you stack them again?
-----------------------------------
"If you tell the truth, you don't have to remember anything" |
This user is offline |
View Website
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Can't restack ... by why would you need to? Stacked walls are convienent for placement but I see no need for them beyond that. The stack doesn't tag as one wall -you still need to tag each section. When I use them I always break them up because they do not cleanly join with other walls unless they are identically stacked. Edit profiles can mess them up as well.
|
This user is offline |
|
![](images/spacer.gif) |
active
![GRINHEART Avatar](user_avatar/111551.jpg)
Joined: Fri, Jun 12, 2009
157 Posts
![4 Stars: 5 Votes](/images/stars_4.gif) |
oh ok.... I just thought if you can. I told you your the man! thanks!
-----------------------------------
"If you tell the truth, you don't have to remember anything" |
This user is offline |
View Website
|
![](images/spacer.gif) |
