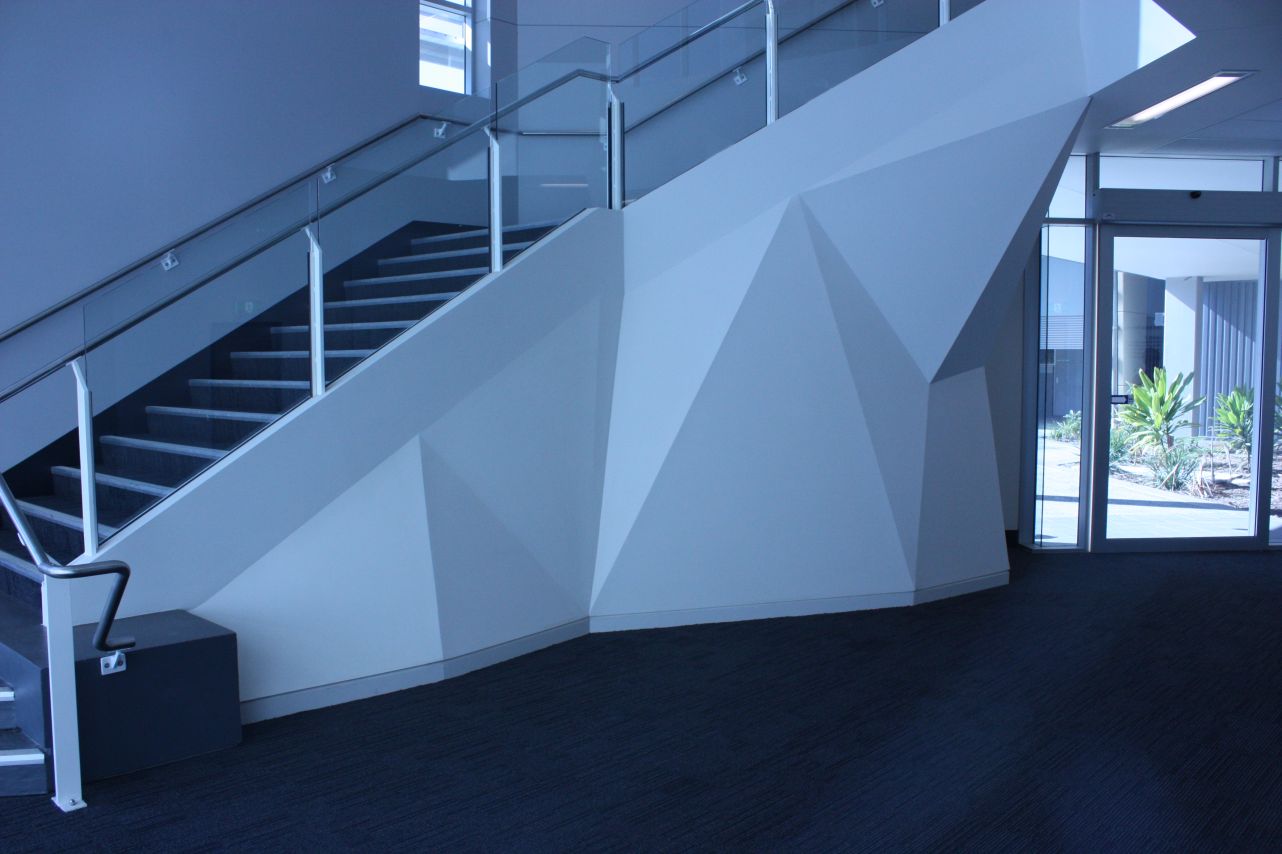

I want to model up the below picture in Revit. In your opinion, what would be the simplest & most efficiant way of doing this. I initially tried an in-place faimly and cut out the different faces with void extrustions, but this was messy, un-accurate & time-consuming. Any suggestions would be appreciated. Cheers
|
This user is offline |
|
 |
|
site moderator|||

Joined: Tue, May 22, 2007
5921 Posts
 |
We can't see in Plan view but, in What version?? Well, i think i use also the "Create-in-place" Extrusions, maybe some Blend.... Only see that in plan and elevations I can decide the best way....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
 |
active

Joined: Sun, Feb 17, 2008
197 Posts
 |
if you new all the exact dimensions, you could draw it in sketchup and load it into a family, or you could do a conceptual mass. or try typ's idea and use some voids. Either way you need to work out some dimensions for this first.
-----------------------------------
