all the tutorials i've seen say to put a curtain wall

in like it was a wall in plan view..

and everytime i ask this question here

they say it's easier if i do it in plan view..

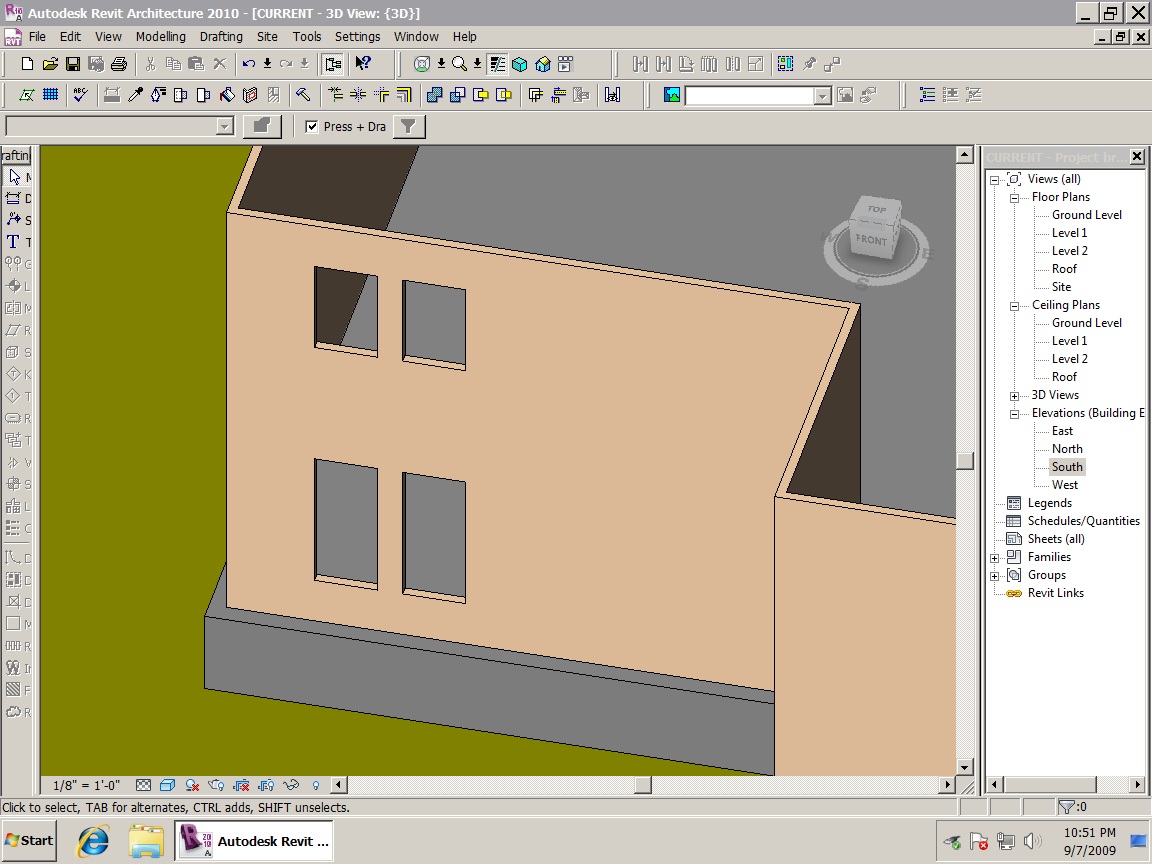

please look at my image.. i know i could

cut those holes in plan view and check embedded

and make the curtain wall window..

but i want to cut the hole in the wall and then

put the curtain wall in the hole.. i have my reasons..

is this possible?

Attached Images

This user is offline

tim123

active

Joined: Tue, Apr 12, 2005
1310 Posts

This user is offline

View Website

WYS1WYG

Joined: Sun, Jan 4, 2009
356 Posts

are you saying there is no way to put a curtain wall

in those openings other than blindly in plan view?

This user is offline

WYS1WYG

Joined: Sun, Jan 4, 2009
356 Posts

seems like it might be possible to make a curtain wall

in an elevation view using lines somehow..

it does have curtain system by lines- that must

mean something..

This user is offline

WYS1WYG

Joined: Sun, Jan 4, 2009
356 Posts

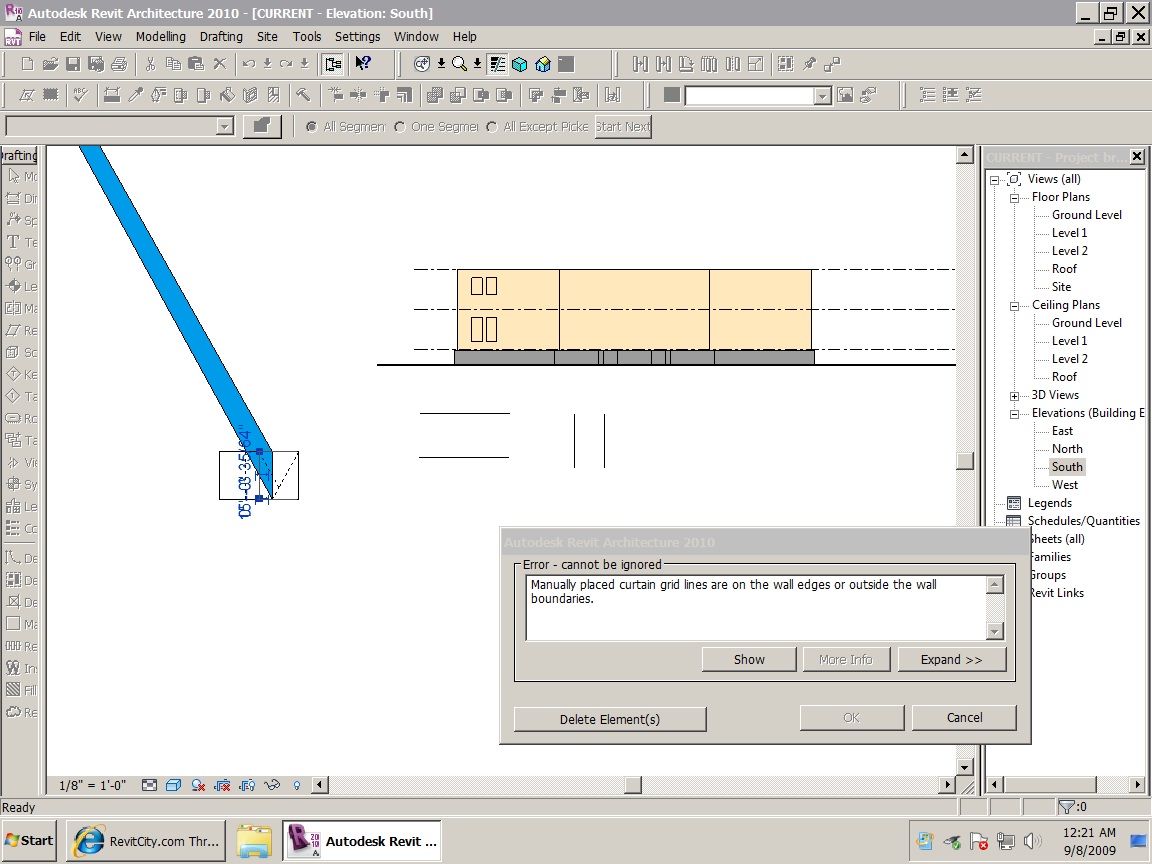

there is some curtain wall creation activity

in elevation view- it must be there..

see image..

Attached Images

This user is offline

MARS1276

active

Joined: Thu, Jan 24, 2008
193 Posts

Here's what I would try and do...

In plan view, draw the curtain wall outside of the wall with the opening and maybe a little to one side of the opening so you can see the opening in an elevation view.

Set the curtain wall to use a base constraint the same as the wall with the opening.

In elevation view, use 'DI' to get the dimensions of the opening (if need be; I'm presuming you already know this though) and if needed for the bottom of the opening from the base constraint.

Use these dimensions for the curtain wall and offset the base constraint to that of the bottom of the opening.

For the top constraint leave it 'Unconstrained' (I believe that is what it is called) and give it the height of your opening.

Then use plan view again to move it into place.

Hope that helps.

This user is offline

WYS1WYG

Joined: Sun, Jan 4, 2009
356 Posts

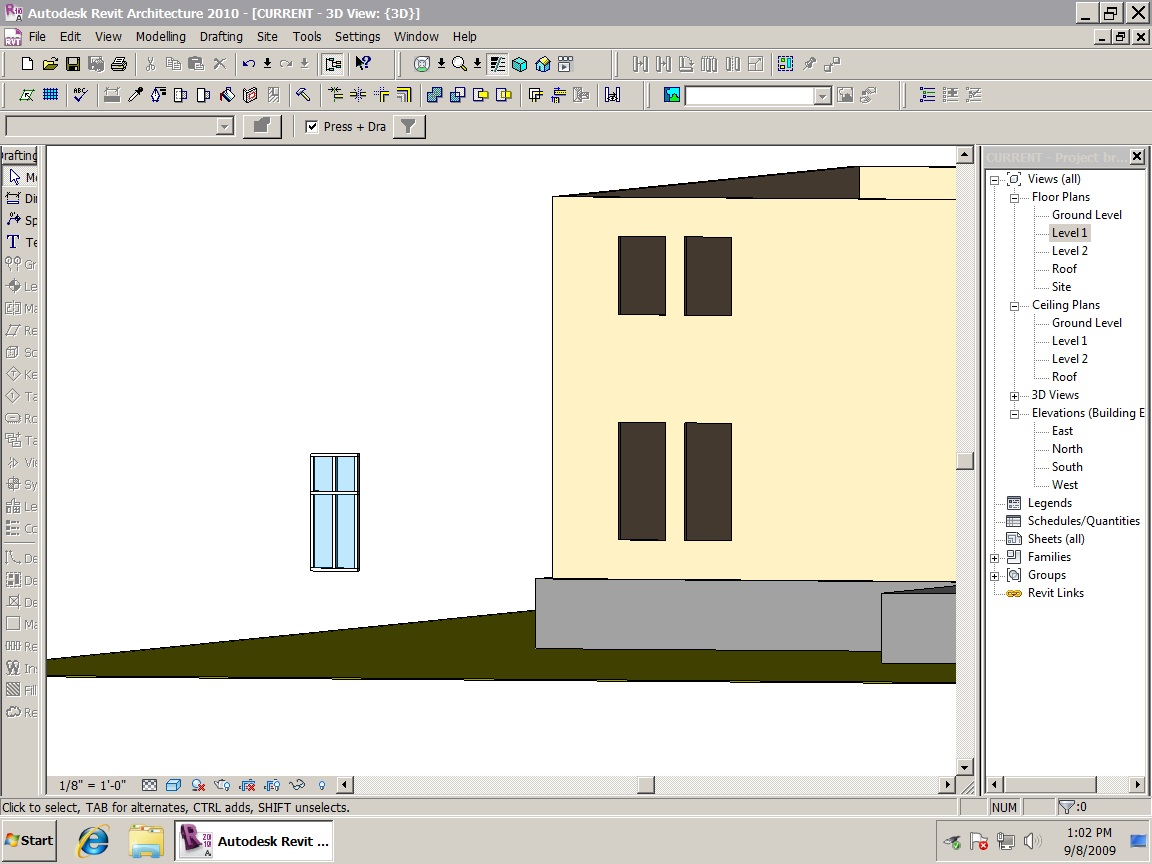

curtain wall window created in elevation with detail lines

and then viewed in 3d- with strange behavior..

Attached Images

This user is offline

Mr Spot

site moderator|||

Joined: Mon, Jan 12, 2004
2889 Posts

So you don't need any assistance creating the holes by the sounds of things.  Just placing the curtain wall in the openings.

This can be done in 3D no problem.  Just set the base of the wall and top of the wall to match the head and sill height.  Then draw it on the centreline of the host wall to the extents needed.  It should snap where appropriate.

-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  B. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website

WYS1WYG

Joined: Sun, Jan 4, 2009
356 Posts

wow- heavy weight Mr. Spot comes out for this- thanks..

i knew there was a way to put curtain wall windows in

wall openings in a 3d view- but i don't know if not having

model lines is the problem i'm having in 3d..and that's why

i've been trying to find a way to put them in elevation

with detal lines..

i'll keep trying- but i've got too many fancy curtain wall

windows to embed them blindly in a host wall in plan view..

This user is offline

WYS1WYG

Joined: Sun, Jan 4, 2009
356 Posts

Mr. Spot- i think i found a way to create curtain wall

windows in elevation.. embed a small square curtain

wall in the general location from a plan view and

then go to elevation and edit the profile there..

i found i can change grids and mullions in elevation..

what's nice about revit is there is so many ways to

do things that almost anything can be done any way

you want to do it..
