Forums >> Revit Building >> Tips & Tricks >> Swept Blend Wall

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jun 16, 2009 at 10:27:39 PM | Swept Blend Wall

#1

BillC


active
BillC Avatar

Joined: Wed, Jul 27, 2005
7 Posts
No Rating


I'm trying to create a horizontally curved wall with a vertically curved top profile that will host a sheet metal coping.  Trying to use the swept blend with the spline option as the 2D path and it will only work with a simple spline of three nodes or less.  It seems there a limit to the amount of nodes for the path.

Once I get the wall, which I can't, will it host a sloped coping?  Or is there a better way to do this?  Thanks.




This user is offline



Sat, Jun 20, 2009 at 7:10:24 AM | Swept Blend Wall

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Hi, you don't tell what version of Revit you use but see this: http://www.megaupload.com/?d=RV9TKBD0




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Jun 20, 2009 at 1:24:52 PM | Swept Blend Wall

#3

BillC


active
BillC Avatar

Joined: Wed, Jul 27, 2005
7 Posts
No Rating


Revit 9.  Can't open your file either.

This user is offline



Sat, Jun 20, 2009 at 2:32:15 PM | Swept Blend Wall

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


"Revit 9.  Can't open your file either." - Well, this video i create in 2009, i don't get it, I can download the video and see, this is not a model....


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Jun 20, 2009 at 2:56:33 PM | Swept Blend Wall

#5

BillC


active
BillC Avatar

Joined: Wed, Jul 27, 2005
7 Posts
No Rating


That was great.  Thanks for the video.  However, I would like the 2D path to be more complex.  Sort of like an 'S'.  And the top of the wall has to have a vertical bump.  Sort of like a bell curve.  Should that be several blends instead on one joined together?


This user is offline



Sat, Jun 20, 2009 at 3:36:01 PM | Swept Blend Wall

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

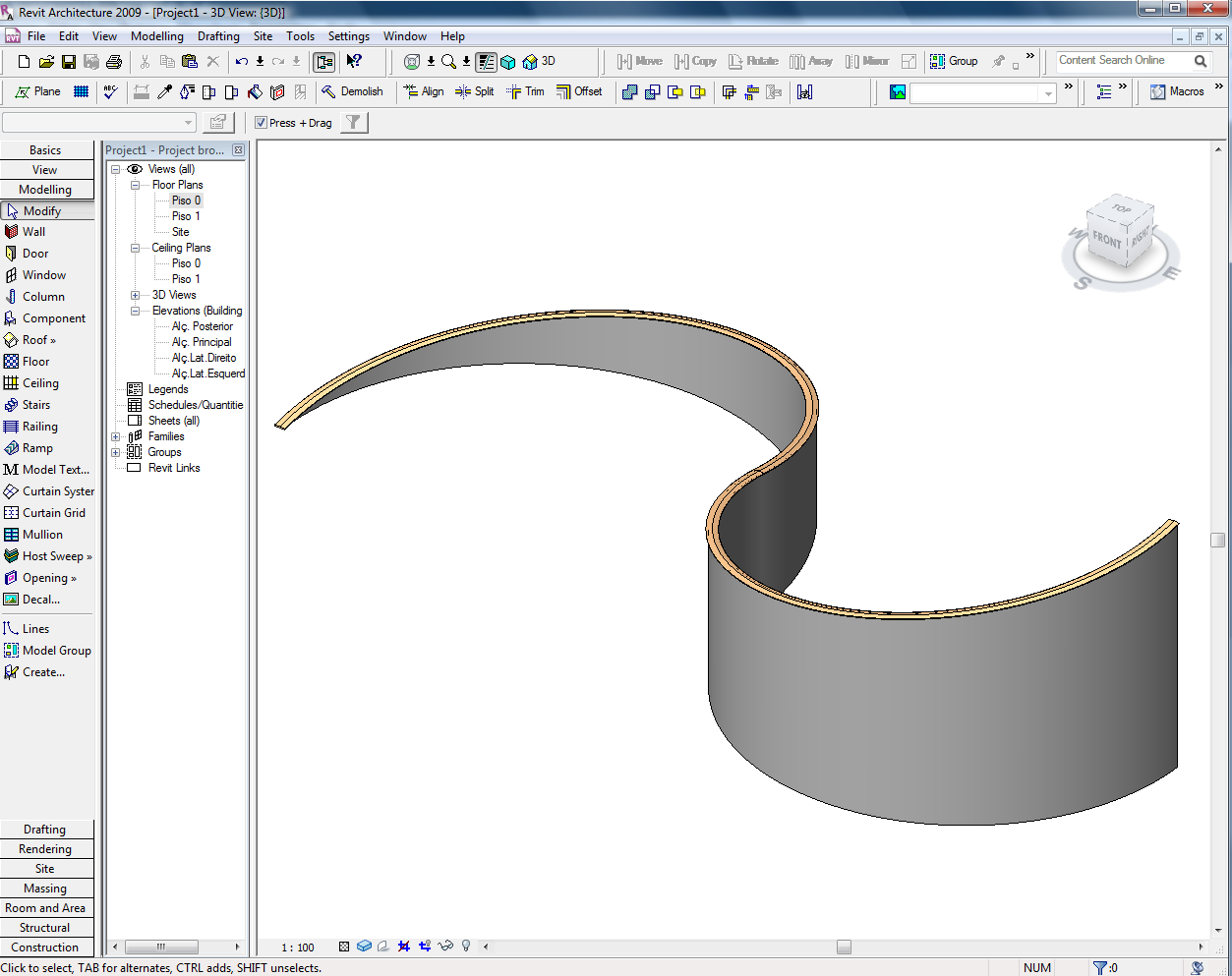

Like what???? can you put some images of what you want so i can figured out????





Edited on: Sat, Jun 20, 2009 at 3:45:58 PM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Jun 21, 2009 at 6:07:07 AM | Swept Blend Wall

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

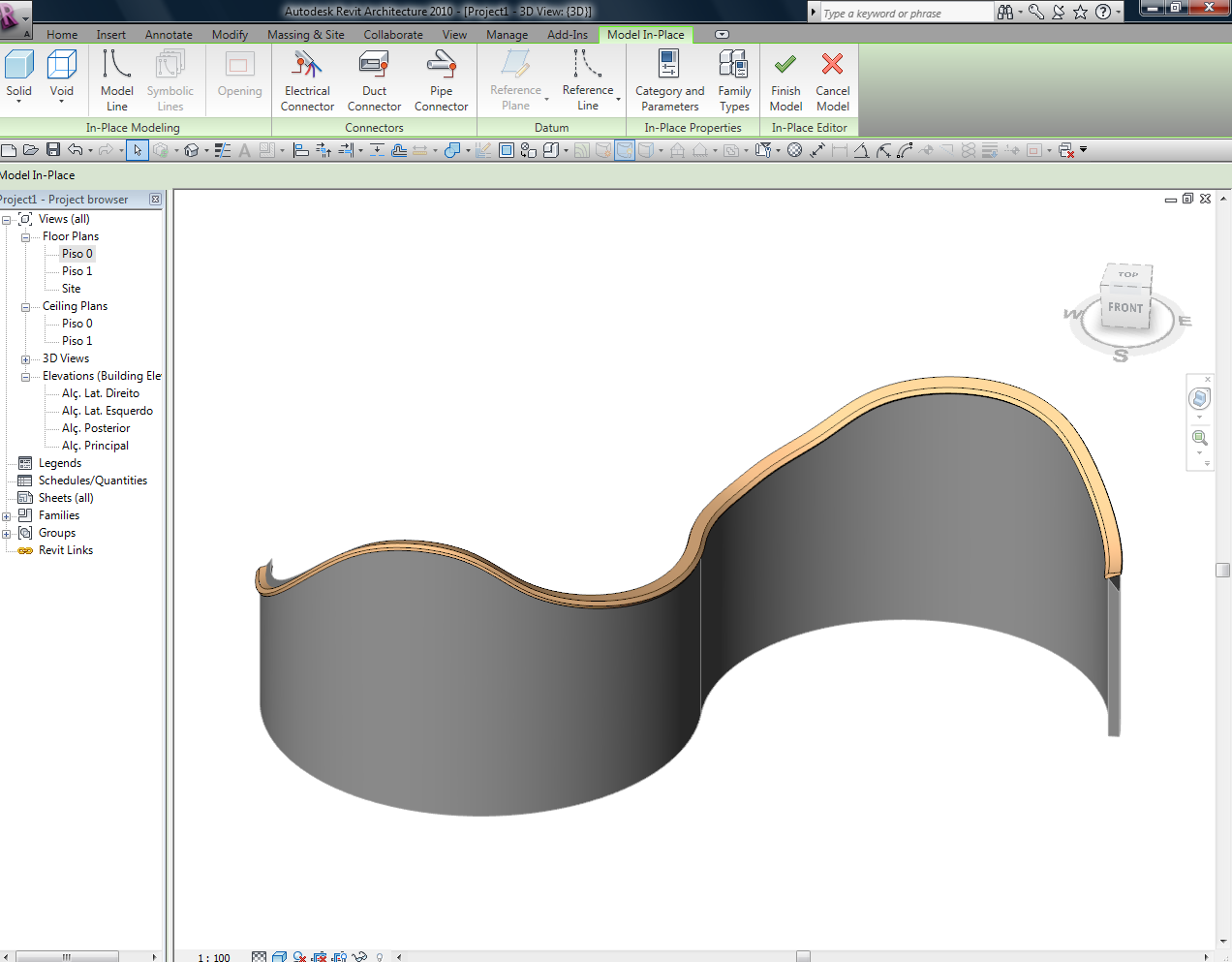

More complex like curves shapes in elevation only in 2010....





Edited on: Sun, Jun 21, 2009 at 6:18:50 AM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Jun 21, 2009 at 6:34:04 AM | Swept Blend Wall

#8

BillC


active
BillC Avatar

Joined: Wed, Jul 27, 2005
7 Posts
No Rating


Thats EXACTLY what I was trying to do.  How did you do that?  Were you able to create the 2d path with more than one segment?  I tried the spline feature and i could not use more than 2 nodes.

This user is offline



Sun, Jun 21, 2009 at 7:25:14 AM | Swept Blend Wall

#9

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Which one??? the first or the last image?? the first was in 2009, the last one was in 2010...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Jun 21, 2009 at 7:44:10 AM | Swept Blend Wall

#10

BillC


active
BillC Avatar

Joined: Wed, Jul 27, 2005
7 Posts
No Rating


THe last image.  Revit 9.  I don't have Revit 10 loaded yet.  Can you do that in Revit 9?


This user is offline



Sun, Jun 21, 2009 at 7:57:25 AM | Swept Blend Wall

#11

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


NO, because the "curved shaped" in elevation.... only allow straight segments and it's not in Solid Swept blend but Solid Sweep....







Edited on: Sun, Jun 21, 2009 at 10:17:43 AM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Jun 21, 2009 at 12:13:32 PM | Swept Blend Wall

#12

BillC


active
BillC Avatar

Joined: Wed, Jul 27, 2005
7 Posts
No Rating


Terrific.  I'll give it a try.  The previous video  was very helpful.


This user is offline



Tue, Jun 23, 2009 at 8:52:51 PM | Swept Blend Wall

#13

BillC


active
BillC Avatar

Joined: Wed, Jul 27, 2005
7 Posts
No Rating


Still having trouble with the sweep at the top of the curved wall.  How do you get a complex curve in the vertical direction?

This user is offline



Wed, Jun 24, 2009 at 4:37:36 AM | Swept Blend Wall

#14

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Images of what you want, please....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
