Forums >> Revit Building >> Technical Support >> topography in elevation shows up "blank" space. any work around?
|
|
|
active
Joined: Sat, Mar 7, 2009
9 Posts
No Rating |

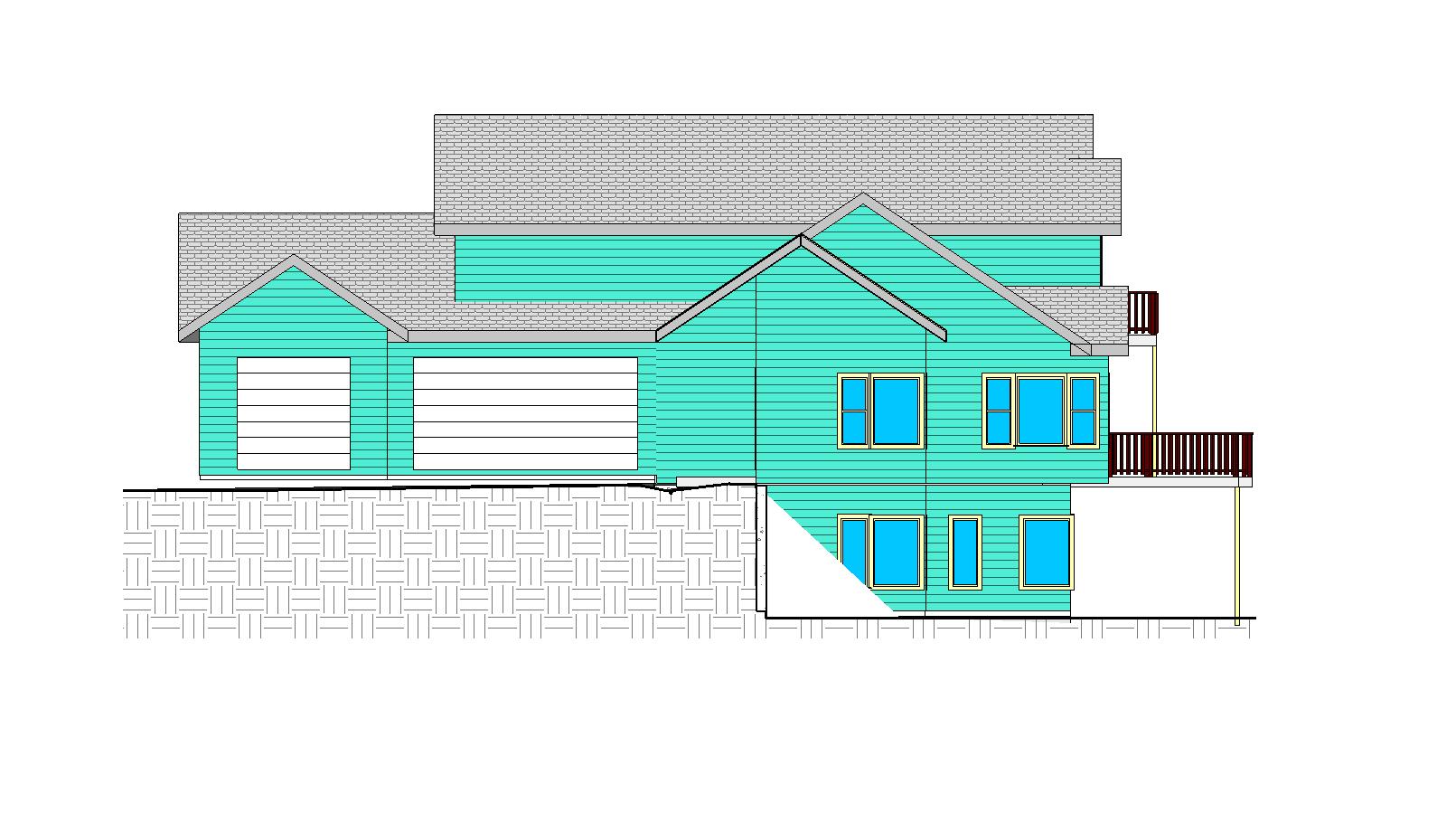

It looks like the topography "behind" my elevation shows up as a blank. What controls the level that my elevation symbol shows up in plan view. This particular elevation only shows up on the basement floor plan and not on the site, first floor, etc. Thanks, Garrett
|
This user is offline |
|
 |
|
|
|
active
Joined: Tue, Nov 7, 2006
456 Posts
 |
Try putting a pad.
-----------------------------------
Motto: "No Post left behind" |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
Put some 3D views images of that zone to check....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Sat, Mar 7, 2009
9 Posts
No Rating |

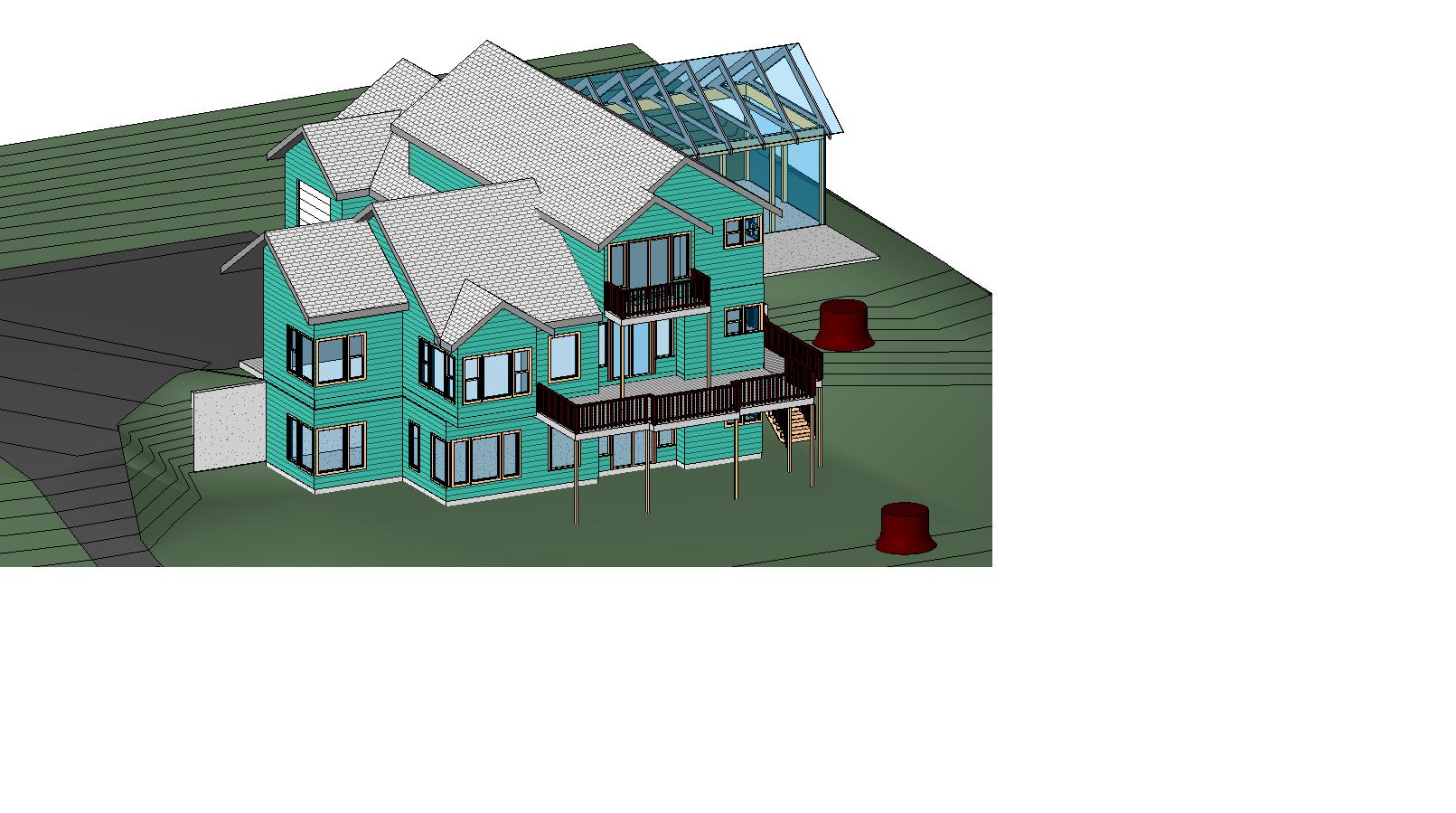

Here is a 3D view of the house.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
In that view, move your elevation symbol near to the house.... i think your elevation is cutting that portion of site (topo)....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Tue, Nov 7, 2006
456 Posts
|
Adjust your section cut closer to the building (or jag it). I think you are cutting parts of your contour when doing the cut.
-----------------------------------
Motto: "No Post left behind" |
This user is offline |
|
|
|
active
Joined: Sat, Mar 7, 2009
9 Posts
No Rating |

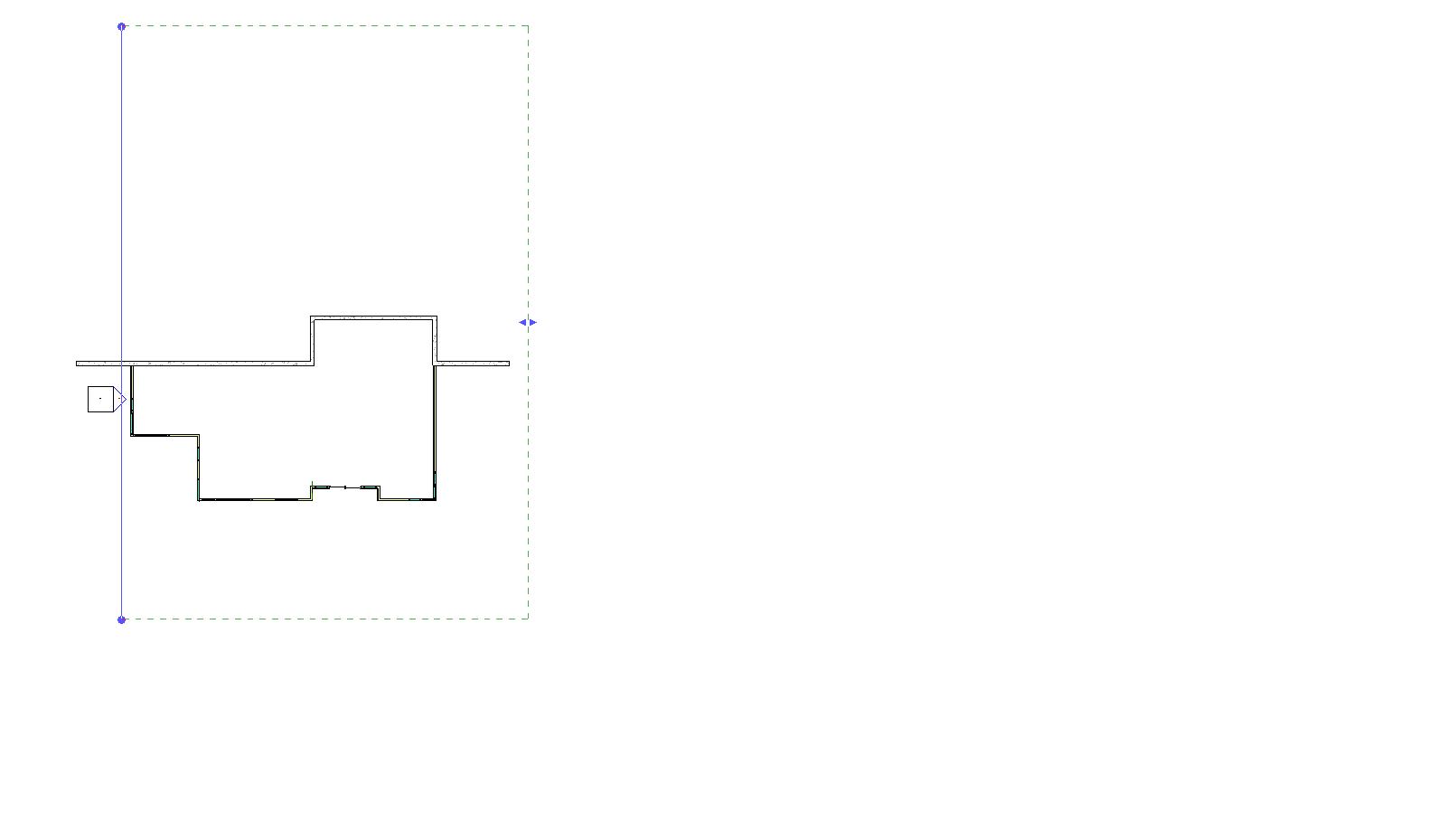

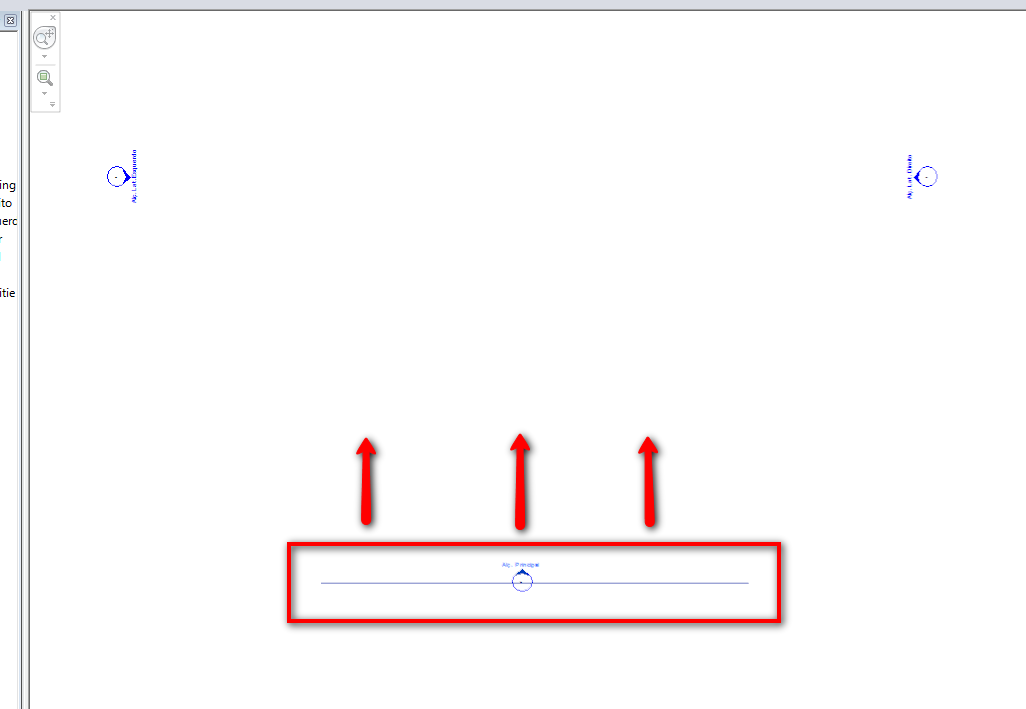

I tried to move the elevation. Thats why all I can figure is the the elevation looks "backwords" a little ways for some reason.
|
This user is offline |
|
|
|
active
Joined: Sat, Mar 7, 2009
9 Posts
No Rating |

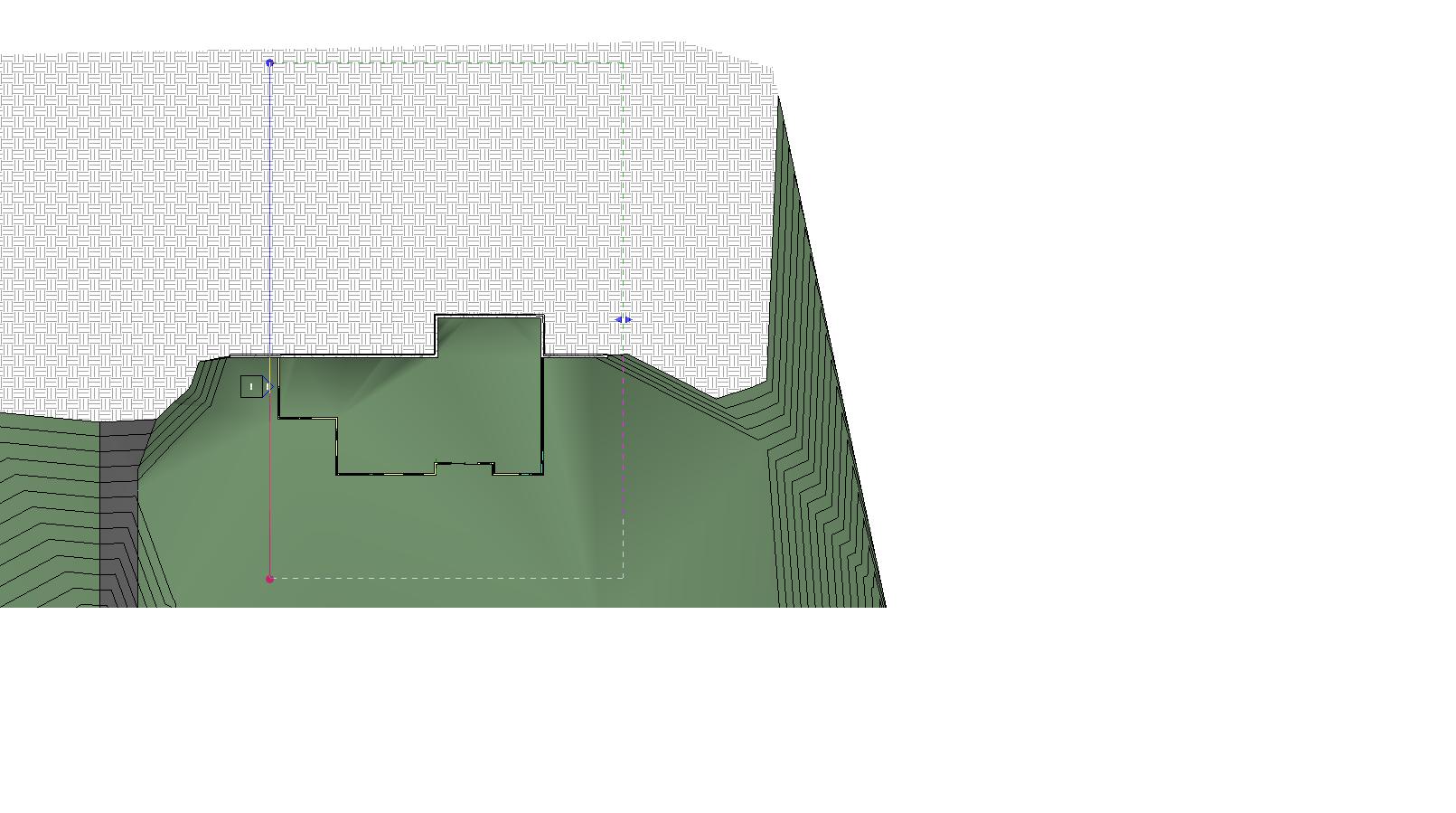

Maybe this screen shot is a little better.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Hummm, can you please put here the model so i can take a look??? ATTENCION, you can upload only 2MB...
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Tue, Nov 7, 2006
456 Posts
|
Going back to your 3D screen shot, there are green and black contours. Does that represent your existing and proposed grades? See to it that only one is active in your view. Check your visibility setting.
-----------------------------------
Motto: "No Post left behind" |
This user is offline |
|
|
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
I think that brown surface it's a "Subregion", i don't know....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Sat, Mar 7, 2009
9 Posts
No Rating |
I do have a subregion that is the driveway/asphalt. My file size is 4mb. Is there a way to only send a "model"?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Send me by email (check my profile)....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
