I am coming across an issue to where I have two walls with the exact same properties (i.e. base constraint, top constraint, offsets, type, etc.) that are showing up differently on plan. Both of these walls stop below an elevated slab at the exact same elevation. One of the walls shows up dashed like it is supposed to, but the other shows up as solid lines. Has anybody else ran into this or know a remedy for it? It does not make any sense to me. Thanks in advance. Mike
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Sorry, but something is not the same ... Phase? Wall attached to floor? Did you show the one wall as hidden by using the show hidden lines and picking it?
|
This user is offline |
|
|
|
active
Joined: Thu, Aug 21, 2008
44 Posts
No Rating |
They are the same phase and neither are attached to floor. I have never used the "show hidden lines" command before so that is not it. I am totally confused.
|
This user is offline |
|
|
|
active
Joined: Thu, Aug 21, 2008
44 Posts
No Rating |

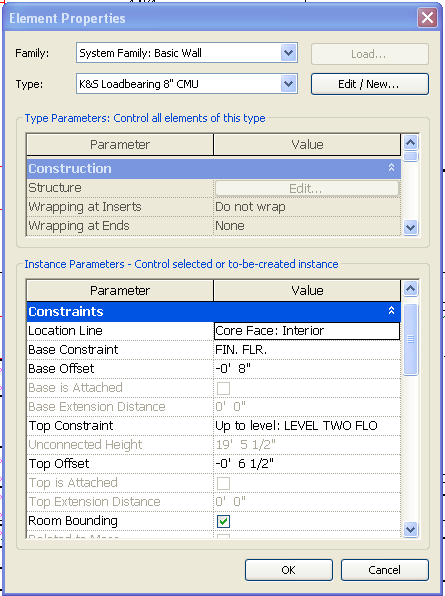

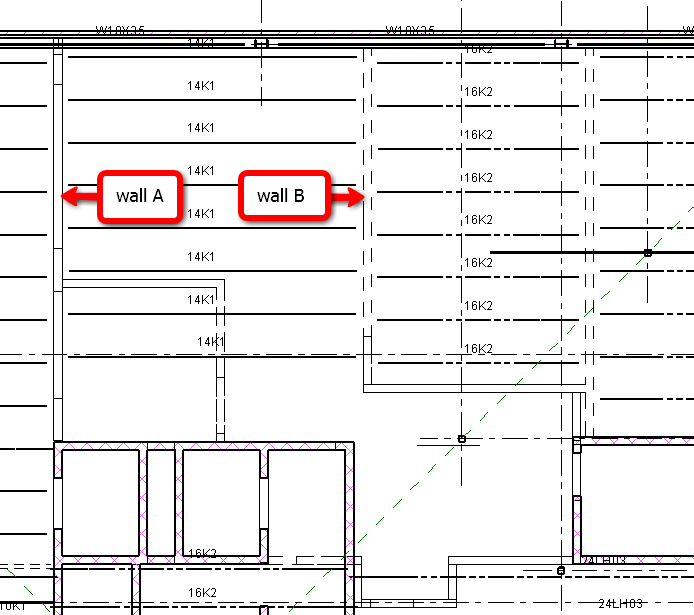

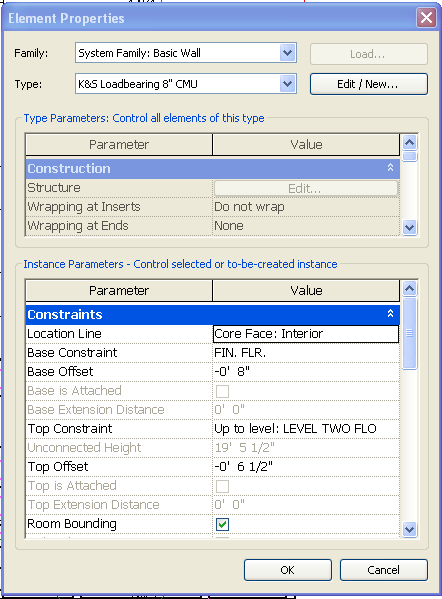

Attached are some screen shots of the walls I am talking about. There is a plan view and then the Element Properties Box for each wall. This is very frustrating.
|
This user is offline |
|
|
|
active
Joined: Thu, Nov 13, 2008
37 Posts
No Rating |
Have you joined one of the walls with the floor (not attached)?
|
This user is offline |
|
|
|
active
Joined: Tue, Nov 20, 2007
64 Posts
 |
Is there a graphics override on one of them?
-----------------------------------
Chatting it up on gmail - travistlo.j@gmail.com |
This user is offline |
View Website
|
|
|
active
Joined: Tue, Apr 24, 2007
104 Posts
|
check you discipline, its simce that you have walls under Structure discipline and the other with architecture discipline. Put them under the same discipline. let me know if this fix your problem.
|
This user is offline |
|
|
|
