Forums >> Revit Building >> Technical Support >> Vertical Rail members?
|
|
|
active
Joined: Mon, Mar 19, 2007
78 Posts
No Rating |
My firm has a type of balcony that we used on a project a few years back. Since then, we have transitioned to revit and I am trying to create this balcony. I have everything built except for the vertical members within the rails (the thin, gray lines in the attacehd pdf). Any suggestions on how to do this? Thanks.
|
This user is offline |
|
 | |
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
 |
Create them as a baluster family. You can model in all the elements, including the support brackets.
|
This user is offline |
View Website
|
|
|
active
Joined: Mon, Mar 19, 2007
78 Posts
No Rating |
So my baluster family will basically be the main baluster, plus the 2 support brackets (top and bottom) as well as each individual vertical rail?
|
This user is offline |
|
|
|
active
Joined: Mon, Mar 19, 2007
78 Posts
No Rating |
I think I may be getting somewhere with this... I guess I didn't understand the difference between the posts and main pattern. I'll post back later with some more updates.
|
This user is offline |
|
|
|
active
Joined: Mon, Mar 19, 2007
78 Posts
No Rating |

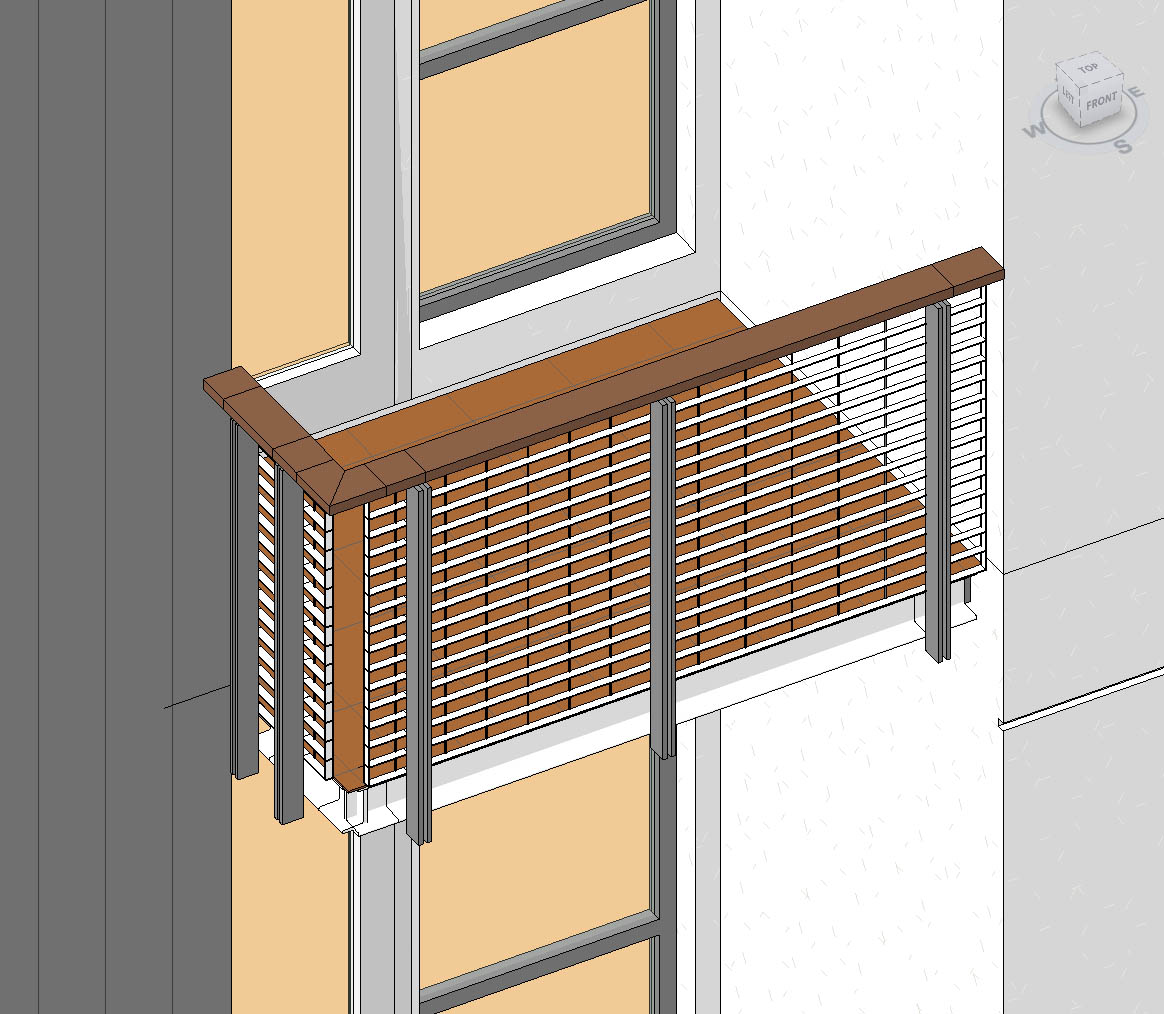

I got everything to work except for the C channel at the corner. The rail type is completely different here, as you can see in the break lines in the hand rail. I get an error from revit when I try to create the corner C channel and it says "Can't create geometry for one or more rails." I currently have the C channel created as a rail profile. Any ideas?
|
This user is offline |
|
|
|
