Forums >> Revit Building >> Technical Support >> Problem when Structural Beam meet Wall - Please helps!!!
|
|
active
Joined: Fri, May 13, 2005
61 Posts
![3 Stars: 5 Votes](/images/stars_3.gif) |
Is it possible to make Structural Beam snap on the Exterior Core face of a wall, instead of snap on the center line of a wall? or any possible way I can make the end of Structural Beam set on the Exterior Core face of a wall? Beacause I am drawing a timber framing plan, and the ends of timber joist should set on the exterior core face of its bearing wall in timber construction.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
|
active
Joined: Tue, Jun 5, 2007
18 Posts
![5 Stars: 1 Votes](/images/stars_5.gif) |
I am having the same problem, hope somenone can answer this.
----------------------------------- www.kaliakatsos.gr |
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Thu, Nov 2, 2006
12 Posts
![5 Stars: 1 Votes](/images/stars_5.gif) |

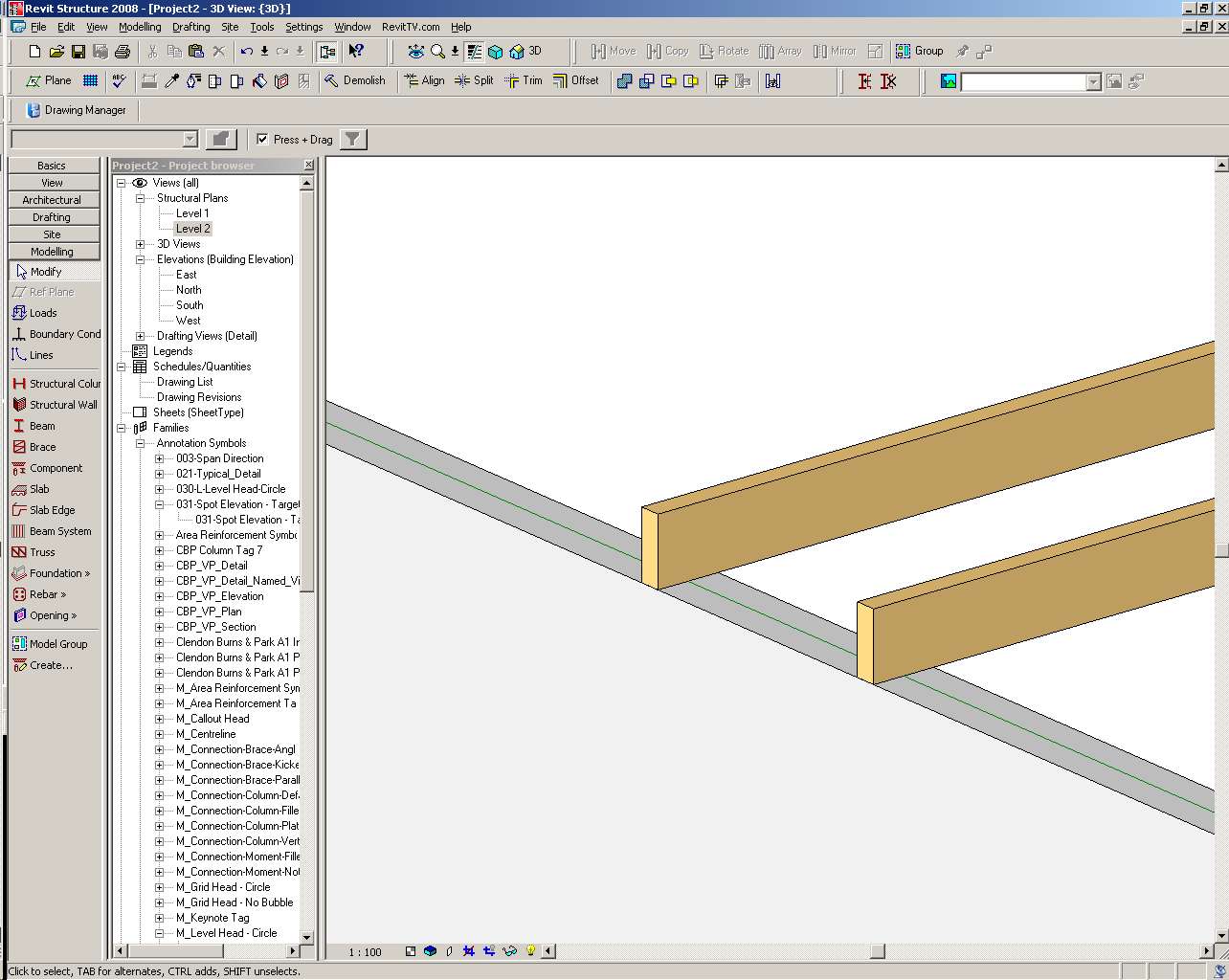

Hi Yes this is possible, but it will depend on your beam family. Have a look at the attached files, not you need to adjust the start and end extensions to suit the width of your wall/beam
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Tue, Jun 5, 2007
18 Posts
![5 Stars: 1 Votes](/images/stars_5.gif) |
Thank you antony, its working fine now
----------------------------------- www.kaliakatsos.gr |
