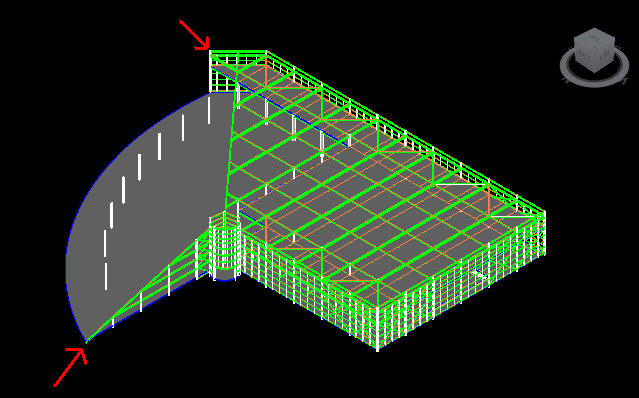

I have no idea how to put into words this problem, basically i am trying to put a sloped curved beam in between two defined points, and cannot think how to do it, ive attached a jpeg of the 3d to show the points i wish to connect! any help would be greatly received!
|
This user is offline |
|
 |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
 |

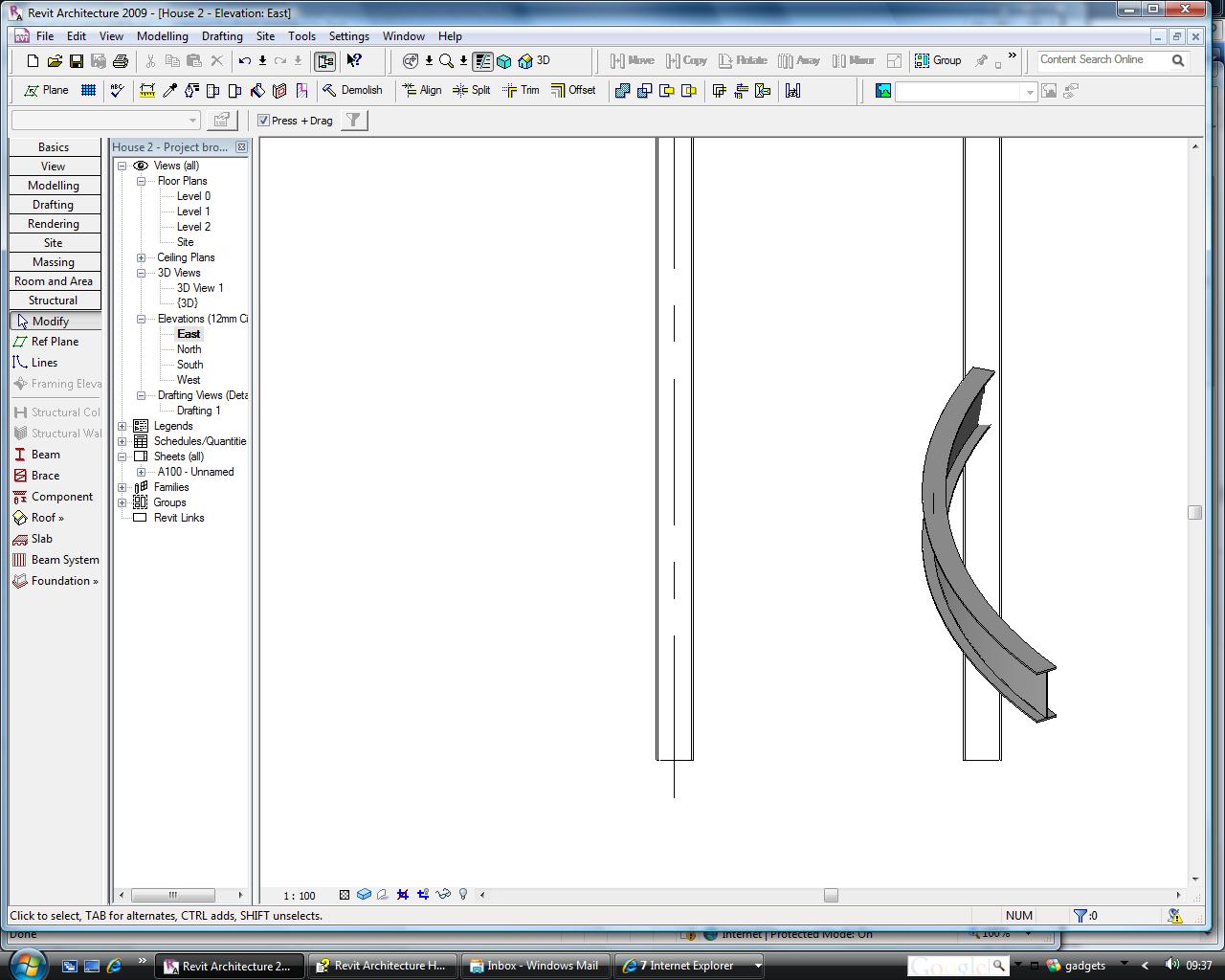

The attached image shows an in place structural component created with a curved sweep and a loaded profile. Is this what you are trying to achieve?
|
This user is offline |
View Website
|
|
|
active
Joined: Mon, Jun 2, 2008
56 Posts
No Rating |
yes that does seem to be what im after! i can create the curve easy enough but then making it a sloped curve i cant figure! Is this a file i can downlaod?
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
After I created the curved beam I unlocked it (edit the family and click on the beam - it has a padlock on that prevents it from rotating). It can then be rotated.
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, Nov 13, 2008
37 Posts
No Rating |
I think what you're trying to create isn't easy to make. It's easy to create a curved beam, and it's easy to make a beam which has a higher endpoint then the starting point. But altogether it's very hard to make, because the beam will be torn. And i guess that's not what you want.
|
This user is offline |
|
|
|
active
Joined: Mon, Jun 2, 2008
56 Posts
No Rating |
no..... i have managed to do it but it still doesnt look right as it wants to twist. I created a sloping ref plane between the 2 points i wanted then on plan drw the curved beam to that ref plane, thus creating the curved slope i wanted but it has a twist on the steell....
|
This user is offline |
|
|
|
active
Joined: Thu, Nov 13, 2008
37 Posts
No Rating |
Yep, that's what I thought already. Unfortunately there's no commando to keep the beam parallel to the level, or maybe there is but I haven't found it yet...
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
The beam would indeed be twisted. To create the beam in real life it would have to be twisted. You can create the twist in the beam to correct this by using the swept blend tool using the same profile rotated to the relevant angle at each end.
|
This user is offline |
View Website
|
|
|
