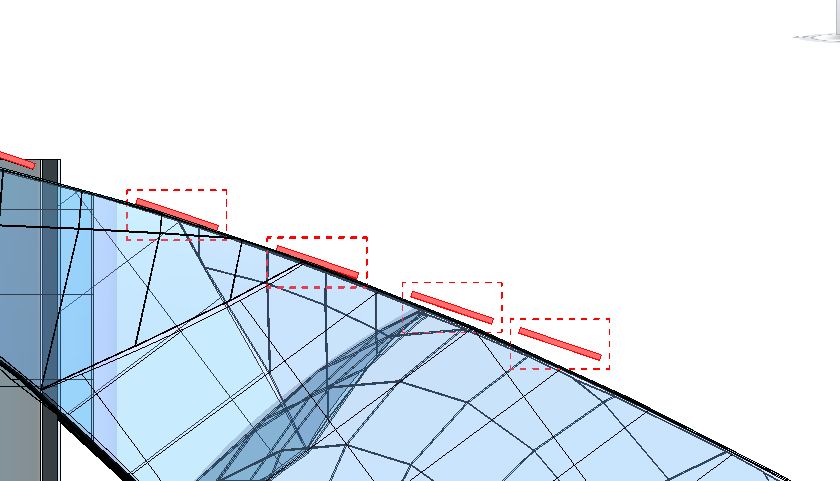

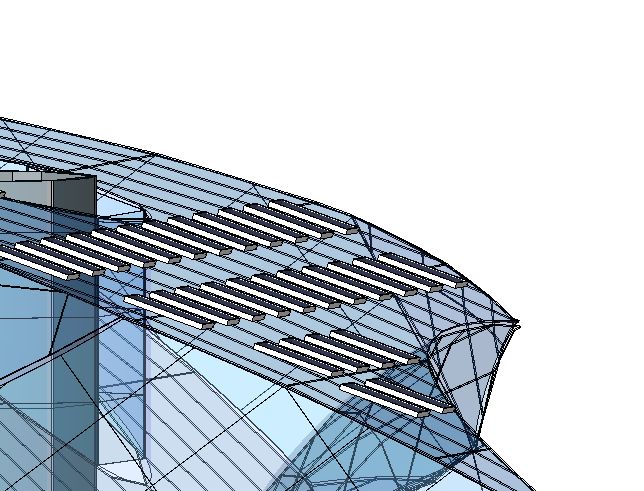

Hi. I'm trying to figure out how to "bend" my workplane to fit any given surface. For example to fit solar panels to a curved roof (pictures) any ideas / solutions ? Thx jw
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |
Create those panels in a "Generic Face Based" family...
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Obviously a plane is always flat ... that's why it's called a plane. Fitting flat surfaces against a curved surface is always a problem ... including in real life. If these elements are not set to always vertical, maybe you can polar array them if that is an arc that you can define. Otherwise - adjust them visually to a best fit?
|
